Octagonal Lighted Signal Arm

Light the way for customers to exit easily and safely with signals and sensors.

Overview
Features
Tech Specs
Resources
  • DKS Doorking Octagonal Lighted Signal Arm
  • DKS Doorking Octagonal Lighted Signal Arm accessory

Octagonal Lighted Signal Arm



Octagonal Arm Choices

Model 1601: Choose Between 1 Piece or 2 Piece Arms

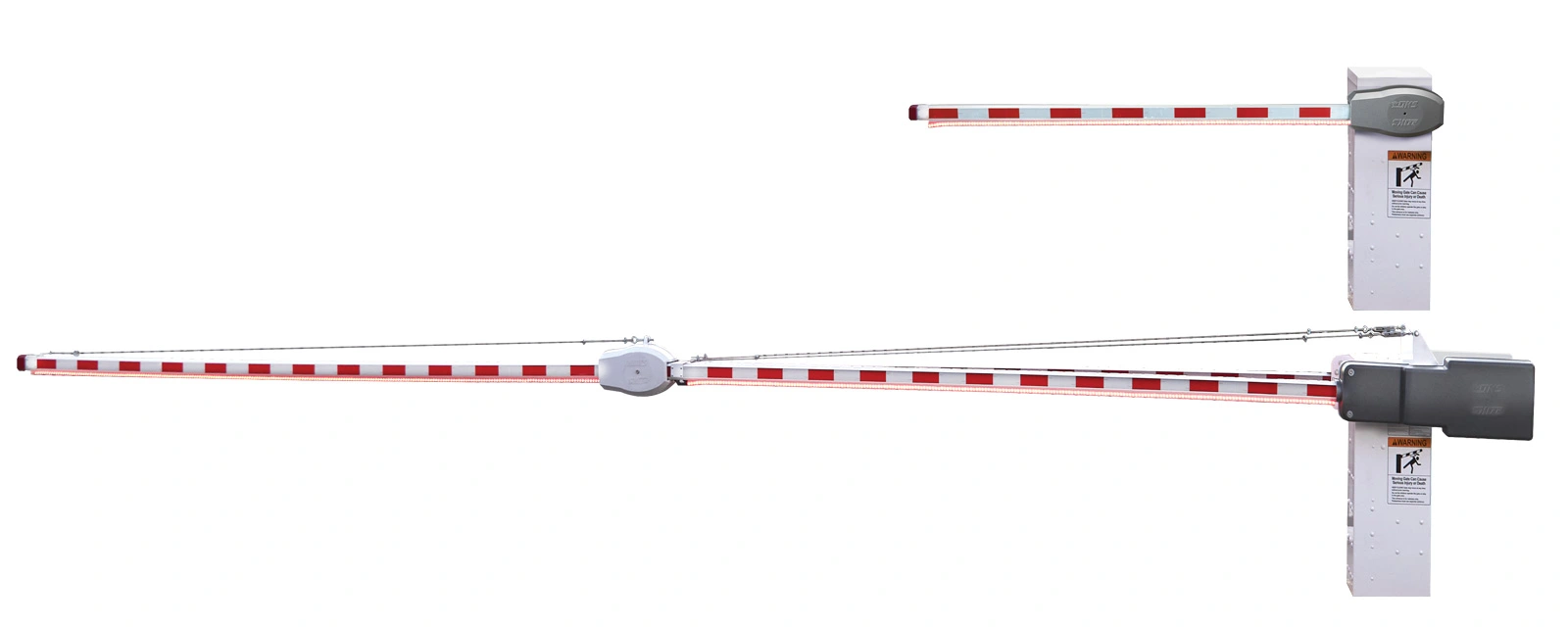

The Model 1601 is for high usage single-lane vehicular traffic control. Typical applications include commercial, industrial, gated communities and apartment complexes. A quick 2.5 seconds rotation opening time, along with rugged construction and multiple optional features make this 1601 a versatile answer to many parking control problems. The 1601 is available in white or gunmetal gray finish.



1 Piece – 14 Ft Arm
P/N 1601-555

2 Pieces  – 7 Ft ea = 14 Feet Arm
P/N 1601-567
Best Option for shipping

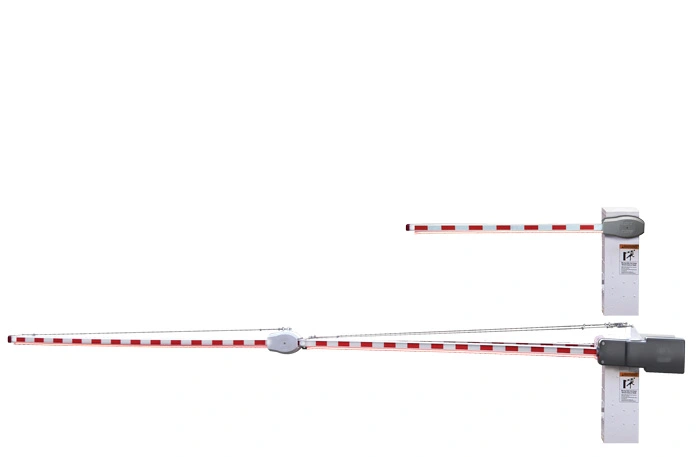

Model 1602: Available in a variety of lengths up to 27′, and can be freight-shipped in pieces.

The Model 1602 is for limited-use applications such as industrial sites and loading dock areas, designed to control wide traffic lanes. The heavy-duty Harmonic Arm Linkage assures smooth and accurate Arm travel of 90° in approximately 5.5 seconds.

These Operators are designed so they can be mounted on either the left or right hand side of the roadway. Battery- powered Convenience Open option available, which provides a method to open the gate if AC power is lost.



Lengths up to 27′, and can be freight-shipped in pieces



Options

Reverse Edge

Reverse Edge
P/N 8080-080
Reverse Edge 12 Ft. (3.6m)
Requires P/N 1601-235 Hardware Kit
Reverse Edge and Red/Green LEDs
P/N 8080-096
Reverse Edge with Red/Green LEDs 12 Ft. (3.6m)
Requires P/N 1601-235 Hardware Kit





Find A Dealer

Features



Night Visibility at Long Distances

The red lights are visible for long distances and in weather with low visibility conditions.



DKS Doorking Reverse

Edge Sensor

The Arm can be equipped with a built-in edge sensor that reverses the arm on contact with an obstruction. This helps to prevent damage in the event of a barrier breach.







    Technical Specifications



    1601-555 Octagonal Aluminum 14 Ft
    1601 Special Octagonal Aluminum Arms

    1601-567 Arm 14 Ft (4.27 m), 2-Piece1
    1601-812 Folding Arm Kit 12 Ft (3.66 m)2
    1. Ships in 8-ft (2.4m) long box.
    2. Minimum ceiling height for this kit is 10 feet (3.04 m)

    1601 Octagonal Hardware Kits

    1601-242 Hardware Kit3
    1601-235 Reverse Edge Hardware Kit4
    1601-295 Breakaway Arm Hardware Kit5
    1601-297 High Wind Bridge Support Kit6
    3. Use this kit for arm only – no reverse edge.
    4. Use this kit for arms with reverse edge (includes wiring harness).
    5. Use this kit to add breakaway arm feature (includes wiring harness).
    6. Use with 1601-295 in areas with higher-than-normal wind loads.

    Octagonal Arm Edges8

    8080-205 Reverse Edge 5 Ft
    8080-206 Reverse Edge 6 Ft
    8080-209 Reverse Edge 9 Ft
    8080-080 Reverse Edge 12 Ft
    8080-305 Reverse Edge 5 Ft Lighted
    8080-306 Reverse Edge 6 Ft Lighted
    8080-309 Reverse Edge 9 Ft Lighted
    8080-096 Reverse Edge 12 Ft Lighted
    1601-822 Folding Arm Reverse Edge Lighted9
    8080-089 Bumper Edge 13 Ft (not a reverse edge)
    8. Edge must be at least 2-Ft shorter than the overall arm length. Edges cannot be used with the 2 Ft (1601-802) arm extension.
    9. Includes two (2) 5 Ft lighted reverse edges and wire harnesses.



    1602 Aluminum Arms Octagonal

    1602-282 3-Piece, 20 Ft (6.09 m)
    1602-284 3-Piece, 24 Ft (7.31 m)
    1602-287 3-Piece, 27 Ft (8.23 m)

    1602 LED/Reverse Edge Kits1 (Octagonal Arms Only)

    1602-292 for 20 Ft (6.09 m) arm
    1602-294 for 24 Ft (7.31 m) arm
    1602-297 for 27 Ft (8.23 m) arm
    1. Kits include required LED/Reverse edge strips, power transformer, wire harness and hardware.



    1603 Auto-Spikes / Operator Arm Selection
    1601-555 Octagonal Aluminum 14 Ft
    Arm Options

    1601-567 Arm 14 Ft (4.27 m), 2-Piece1
    1601-812 Folding Arm Kit 12 Ft (3.66 m)2
    1. Ships in 8-ft (2.4m) long box.
    2. Minimum ceiling height for this kit is 10 feet (3.04 m)

    Octagonal Hardware Kits

    1601-242 Hardware Kit5
    1601-235 Reverse Edge Hardware Kit6
    5. Use this kit for arm only – no reverse edge.
    6. Use this kit for arms with reverse edge (includes wiring harness).

    Octagonal Arm Edges7

    8080-205 Reverse Edge 5 Ft
    8080-206 Reverse Edge 6 Ft
    8080-209 Reverse Edge 9 Ft
    8080-080 Reverse Edge 12 Ft
    8080-305 Reverse Edge 5 Ft Lighted
    8080-306 Reverse Edge 6 Ft Lighted
    8080-309 Reverse Edge 9 Ft Lighted
    8080-096 Reverse Edge 12 Ft Lighted
    1601-822 Folding Arm Reverse Edge Lighted8
    8080-089 Bumper Edge 13 Ft (not a reverse edge)
    7. Edge must be at least 2-Ft shorter than the overall arm length. Edges cannot be used with the 2 Ft (1601-802) arm extension.
    8. Includes two (2) 5 Ft lighted reverse edges and wire harnesses.







    Tech Support

    Find all the documentation needed to install, program, and operate your DKS product below.

    Quick Start Guides icons accessory

    Quick Start Guides

    Owners Manuals icons accessory

    Owner’s Manuals

    Accessory Manuals icon accessory

    Accessory Manuals

    Easy Connect Manuals icon accessory

    Easy Connect Manuals

    Tech Tip Videos icons accessory

    Tech Tip Videos

    View All Tech Support Documentation

    Resources

    Breakaway Arm Kit - Octagonal Arm
    Download
    Barrier Arm LED Wiring Kit
    Download
    Reverse Edge Kit - Octagonal Arm
    Download
