1816 Intercom System-Multi


The 1816 Telephone Intercom System offers outstanding features that allow the resident to be in charge of their calls and can interface with up to 1200 phone lines. Ideally suited for apartment buildings, college resident halls, high rise condominiums, office buildings, and public housing authority projects where controlling access into the building is an essential part of a security program


1816 Intercom System-Multi

Seamless Integration from Phone to Entry Point

The Model 1816 Telephone Intercom System is a unique communication and access control device that provides two-way voice communication and control of a main entry door through the resident’s own telephone without the need of a dedicated Central Office (C.O.) phone line. This capability eliminates the need for costly hard-wired intercom systems, monthly line charges and equipment lease payments. The 1816 also provides communication and control of the door even if the resident does not have central office phone service.  The 1816 is ideal for colleges wishing to control access into student Resident Halls, apartment buildings and office buildings.

The 1816 is a component style system that consists of a lobby panel(s), main control cabinet(s) and line interface board(s). The system is built in accordance with the number of telephone lines to be interfaced with.  Contact your professional DKS system installer for more information about this and other DKS products.



Communicate with
Guests via Phone
Entry System
Programming via System
or Telephone Keypad
Compatible with All
DKS Entry & Access Systems



Applications

Gated Communities & Apartment Complexes Solutions
Gated Communities
mix used icon
Mixed Use Buildings
commercial industry icon
Commercial & Industrial






Product Features



1820 Telephone Entry System doorman



Doorman Telephone

One of the standout features of the 1816 Intercom System is its integration with a doorman telephone. This feature simplifies communication for residents in high-rise apartment buildings, allowing them to connect directly with the doorman or concierge with just a push of a button.



No reprogramming is required when residents move in or out



No Reprogramming Required

Unlike traditional intercom systems that require reprogramming when residents move in or out, the 1816 Intercom System eliminates this hassle. Its intuitive design ensures that the system can accommodate changes in occupancy seamlessly, without the need for additional adjustments.

%%tb-image-alt-text%%
Capacity

The 1816 Intercom System is equipped with the flexibility to expand easily with additional line interface boards.

%%tb-image-alt-text%%
Communication

With full-duplex communication capabilities, the 1816 Intercom System enables clear and uninterrupted communication between residents and visitors.

%%tb-image-alt-text%%
Control Access

Residents can grant access with a simple push of a button on their touch-tone telephone, providing convenience while maintaining security protocols.

%%tb-image-alt-text%%
No Central Office Necessary

Installation is straightforward—all that’s required is to plug a touch-tone telephone into the apartment phone jack, and the system is ready to use.

Technical Specifications

Specifications
  • Interfaces with up to 1200 telephone lines.
  • Full duplex communication.
  • Stores up to 10 preprogrammed call out numbers.
  • Doorman telephone input.
  • Programmable directory codes.
  • 16 VAC, 50 VA power transformer (main cabinet).
  • 16 VAC, 50 VA power transformer (auxiliary cabinet).
  • FCC (US): DUF6VT-12874-OT-T
  • DOC (CAN): 1736 4530 A
  • Compliant with UL 294.   ETL listed.
  • Main & Auxiliary Cabinets: 35.25″H x 13.25″W x 5.0″D.
  • Garden Style Cabinets: 21.25″H x 13.25″W x 5.0″D.
  • System requires one (1) main control or garden cabinet, one (1) relay board, one (1) connecting cable and one (1) RJ71C phone block for every 12 phone lines that the system will interface with.
Features
  • Commercial telephone intercom system.
  • Built-in call waiting.
  • Lobby panel/doorman Caller ID.
  • True full duplex communication.
  • Interfaces with all DKS telephone entry/access control systems.
  • Residents do not need central office (C.O.) telephone service to be connected to system.
  • Directory codes can be programmed to numbers of your choice.
  • No reprogramming required when residents move in or out.
  • Double ring feature identifies lobby panel call.
  • Do-Not-Disturb feature.
  • Call forwarding feature.
Options
  • Main cabinet can house up to 13 relays boards to interface with up to 156 phone lines.
  • Auxiliary cabinet can house up to 16 relay boards to interface with up to 192 phone lines.
  • Additional auxiliary cabinets can be added as needed, up to 1200 phone lines for the system.
  • Garden style cabinet will house up to 5 relay boards to interface with up to 60 phone lines.



Phone Panels

1802 Vandal Resistant Lobby Panels

  • 1802-085 Front Access with Postal Provision – Requires 1802-150 frame assembly
  • 1802-086 Front Access no Postal Provision – Requires 1802-150 frame assembly
  • 1802-087 Rear Access with Postal Provision – Requires 1802-152 box assembly
  • 1802-088 Rear Access with no Postal Provision – Requires 1802-152 box assembly

1802 Lobby Panels

  • 1802-083 Surface Mount
  • 1802-084 Surface Mount with Handset

1803 Vandal Resistant Lobby Panels

  • 1803-097 Front Access no Postal Provision – Requires 1803-150 Recess Kit

1803 Lobby Panels

  • 1803-090 Surface Mount
  • 1803-091 Surface Mount with Handset
  • 1803-092 Flush Mount
  • 1803-093 Flush Mount with Handset
  • 1803-094 Flush Mount Gold Plated

1803 Lobby Panel Mounting Accessories

  • 1814-165 Flush Mount Kit Stainless
  • 1814-166 Flush Mount Kit Gold

1808 Lobby Panels

  • 1808-081 Surface Mount
  • 1808-083 Surface Mount w / Directory

1810 Lobby Panels

  • 1810-088 Surface Mount
  • 1810-090 Flush Mount
  • 1810-094 Flush Mount Gold Plated

1810 Lobby Panel Mounting Accessories

  • 1803-150 Surface Mount Recess Kit
  • 1814-165 Flush Mount Kit Stainless
  • 1814-166 Flush Mount Kit Gold

Phone Accessories

  • 1701-080 20 Name Directory
  • 1702-080 60 Name Directory
  • 1710-080 Large Directory Surface Mount
  • 1710-081 Large Directory Flush Mount
  • 1720-080 Fluorescent Light Kit
  • 1812-145 Color Camera Kit – use with 1808-081, 1808-083, 1810-090, 1810-094
  • 1812-147 Color Camera Kit – use with 1810-088

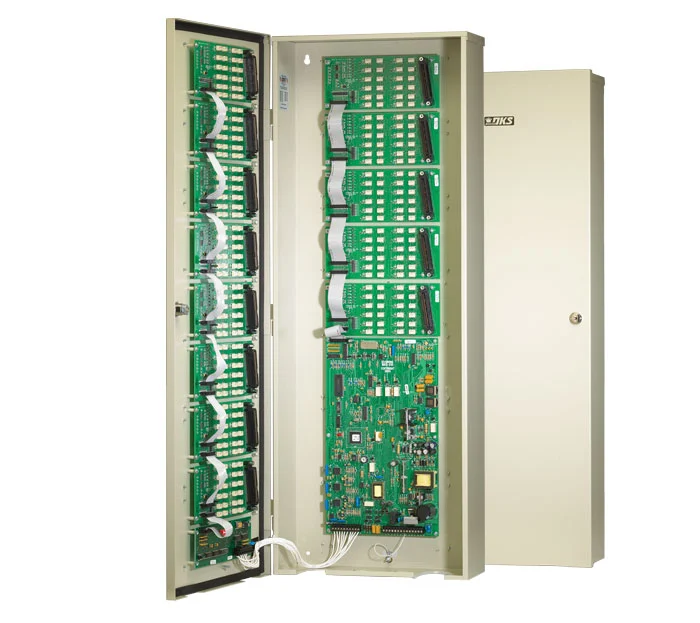

Dimensions and Weight – Large Cabinet

  • Main & Auxiliary Cabinets: 35.25″H x 13.25″W x 5.0″D.
  • Shipping weight: Large Cabinet approximately 32 lb (14.5 kg)

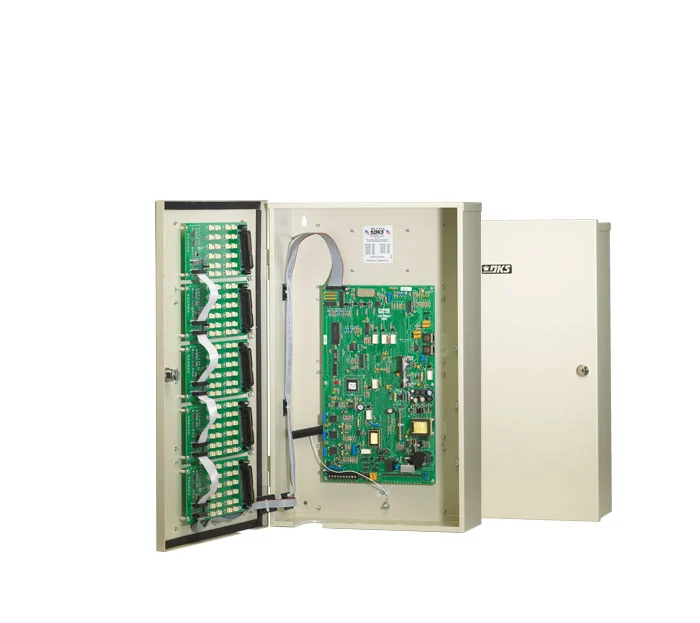

Dimensions and Weight – Standard Cabinet

  • Garden Style Cabinets: 21.25″H x 13.25″W x 5.0″D.
  • Shipping weight: Small Cabinet approximately 21 lb (9.5 kg)
