2132
Video Entry System
Applications
Large Multi-Family Residential
Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities

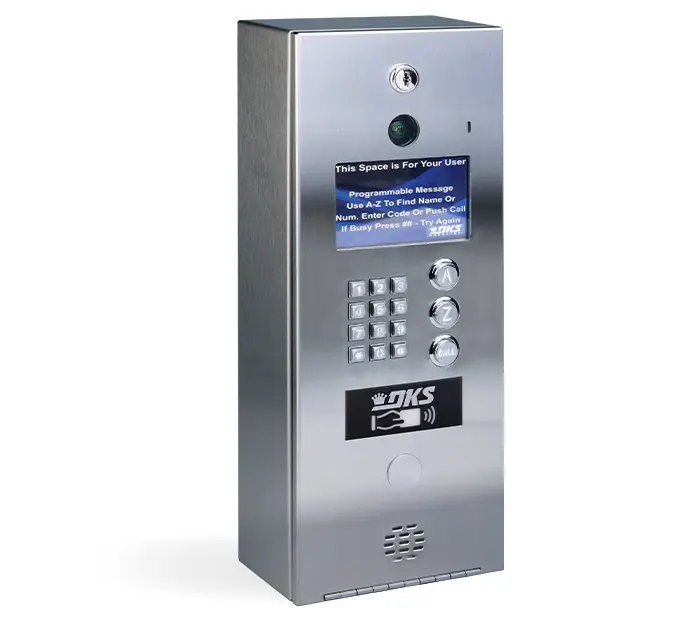

2132 Video Entry System
Space-Saving Design. Powerful Control. Smarter Connectivity.
The eVolve™ 2132 Video Entry System delivers powerful, cloud-based video access control in a slim, space-saving design—ideal for properties where mounting space is limited but performance can’t be.
Designed for residential, multi-tenant, and light commercial applications, the 2132 features live streaming video, a vibrant color display, and advanced visitor and credential management tools.
Manage up to 10,000 users and 40,000 (4- or 5-digit) entry codes, with expansion capability for up to 97 entry points using optional Tracker expansion boards. Administrators can program the system remotely through their DKS Cloud account from any internet-connected device, while day-to-day access management is handled through the DKS Community App (iOS & Android).
With built-in guest management, elevator control, three internal relays, two Wiegand inputs, and flexible scheduling—including holiday, hold-open, security time zones, geo-fencing, and live activity monitoring—the 2132 adapts to virtually any property requirement.

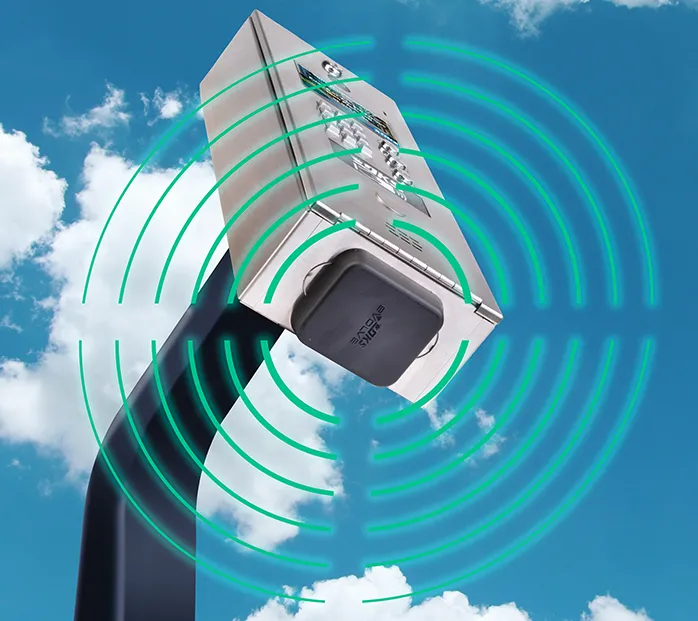

Installation is simple with PoE++ or 12-24 VDC power options. No Ethernet? An optional cellular kit provides reliable wireless connectivity. Minimum upload connection speed is 3 MBs.
2100 Video Entry Circuit Board
The new DKS Video Entry Controller simplifies installation and setup. Power over Ethernet (PoE) eliminates the need for a separate power supply. Don’t have an Ethernet connection? The Cellular add-on provides a seamless wireless connection. The system can be expanded to control up to 97 entry points using optional Tracker expansion boards. Programming and reporting are handled through DKS Cloud. Managers and Administrators can manage their systems with the DKS Community App available on the App Store and Google Play.
Voice & Video Communication with Guests
Right On Your Smartphone:

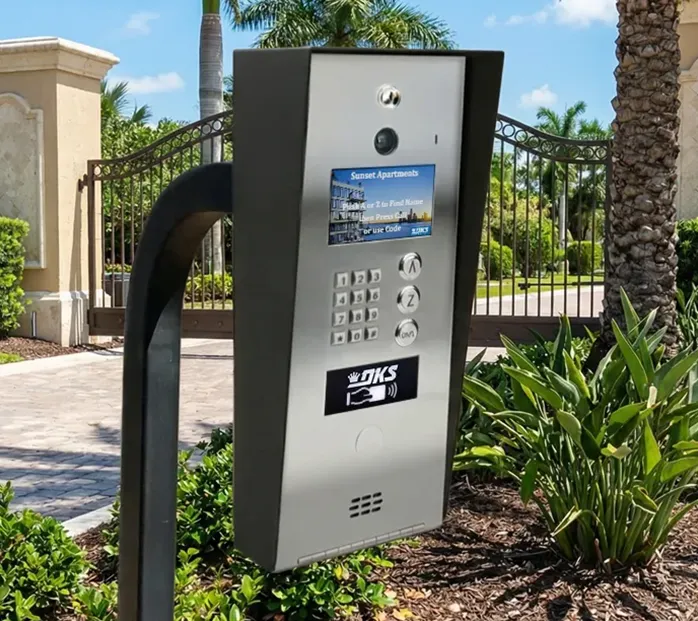

DoorKing’s 2132 eVolve Video Entry System enables residents to not only speak on the phone to guests at the gate but also see guests right on their smartphone through video streaming — offering verbal and visual communication from anywhere. Residents can quickly grant guests access from their home phone or smartphone, and can easily program the Video Entry System by logging in to their administrator account through any browser on any internet-connected device.
Grant Access & View Guests via Live Video
Community App: User Level allows tenants to easily grant access with video confirmation of who is at the entry. Manager Level, Enhanced User Levels have even more control over customized access.
Remote Programming via eVolve Cloud
Cloud-based programming and reporting via DKS Community Cloud lets managers work remotely with 100% control.
Powerful Day and Night Camera
The Perfect Lighting
The Soft Light Glow of the keys and call button ensures your visitors are always illuminated without blinding them.
Color Display

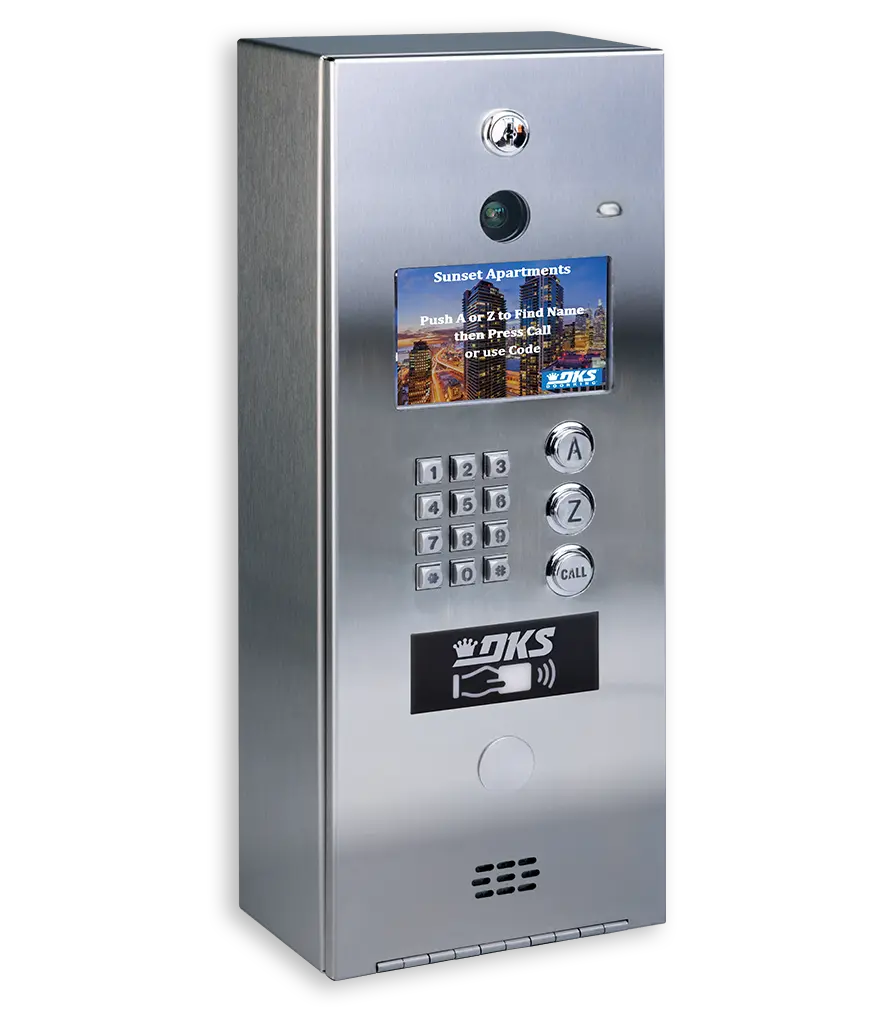

Featuring a 4.25″ W × 2.625″ H full-color screen. Easily customize the welcome message and upload your own background image for a clean, professional first impression.
Looking for an authorized DoorKing dealer near you?
Weather Resistant Case
Optional Internal Card Reader
Built into the faceplate
Technical Specifications
Expandable Entry Points (Max): 97
Supports Up to
10,000 Users and 40,000 Entry Codes
Device Codes
Up to 25 Per User
Built-in Ethernet Connectivity
Dual Wiegand Inputs
Specifications
- Input Power: PoE++ (Type 3) or 12-24 VDC (18 VDC Power Supply Included)
- Connection: Ethernet or Cellular
- Color Display: 4.25″ W × 2.625″ H
- Users: 10,000
- Device Codes: Up to 25 per User
- Entry Codes (4 or 5 digit): 40,000
- Wiegand Inputs: 2 (Expandable to 97 with Tracker expansion boards)
- Internal Relays: 3
- Events Buffer: Up to 6 months
- Elevator Control: Up to 8 elevators, 64 floors each
- Postal Lock Provision: Yes
- Tamper Switch: Yes
- Built-In Card Reader Provision: Yes
- Dimensions: 17.25″ H × 6.75″ W × 3.75″ D
- Operating Temperature: -20°F to 130°F (-29°C to 54°C)
- Security Hood & Flush Mount Kits: Optional
Features
- Directory Listing: Last Name First or First Name First
- Customizable Home Screen: Yes
- Visitor (Guest) Management: Scheduled or One-Time
- Geo-Fencing Access Control: Can Be Enabled or Disabled
- User Auto-Expire: Yes
- Security (Permission) Levels: 31 (10 Time Zones Each Level)
- Entry Code Schedules: 10
- Holiday Schedules: 55
- Hold Open Schedules: 15 (Auto-Cancel Can Be Enabled)
- Do-Not-Call Schedules: 10
- Do-Not-Disturb for Video Calls: User Enable or Disable
Applications
- DKS Community App: Manager Level, Enhanced User Level, Standard User Level (Enhanced and Standard Levels Are Assigned by the Manager)
- DKS Cloud (Required): All Programming
Dimensions and Weight
Dimensions:
Surface Mount
17.25″ × 6.75″ × 3.75″
Shipping Weight Approximately:
20-25 lb (9-11 kg) depending on model and options selected
