1000 Backup Power Inverter & Batteries

The Model 1000 Power Inverter provides backup power for a single-gated Access Control System when primary AC power fails. With the 1000 Power Inverter & Batteries, properties can maintain a fully operational Access Control System during power outages and brown-outs.

Overview
Features
Tech Specs
Resources
  • DKS Doorking 1000 power backup keypad accessory

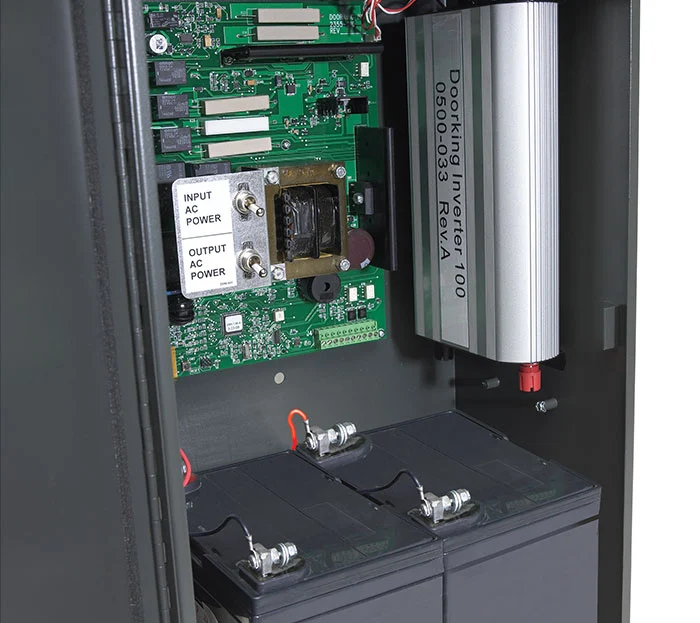

1000 Backup Power Inverter & Batteries



No Power? No Problem

DoorKing’s 1000 Power Inverter is designed to provide backup power for your Gate Operator and/or additional Access Control devices when primary (AC) power fails. Unlike DC Gate Operators that can only backup the Gate Operator itself with internal batteries to run the DC motor, the 1000 Power Inverter converts DC battery power to AC power to keep all Access Control components, even those that are powered by AC Accessory Transformers, operable at all times.  DC Gate Operators do not convert their battery power to AC, which renders all the additional AC-powered components of an Access Control System inoperable during a power outage or brownout.

The 1000 Power Inverter & Batteries provide reliable backup power for most aspects of an Access Control System, including Gate Operators operating a single gate, Loop Detectors, Secondary Entrapment Devices, Entry Systems, Card Access Systems, RF Controls, Traffic Control Devices, and other components.



Find A Dealer

Features



Access Control Backup System for Power Outages & Brownouts

The 1000 Power Inverter is designed to run a multi-component Access Control System during power outages or brownouts, enabling properties to keep their Access Control up and running. The 1000 Power Inverter maintains power to all components of the Access Control System including various combinations of Entry System, Card Access System, RF Controls, etc. as well as the Vehicular Gate System including Gate Operator, Loop Detectors, Secondary Entrapment Prevention Devices, or Traffic Control devices. We recommend consulting with a DKS Dealer to understand the power requirements and backup power runtime of your particular Access Control System.



Compatible with Most Access Control Products

The 1000 Power Inverter is suitable for use with DoorKing Class I and Class II Gate Operators and most other Residential or Light Duty commercial gate operator brands. The 1000 Power Inverter is also compatible with all DKS Entry Systems, Access Control devices and Traffic Control products.







    Whole System Power Backup

    The 1000 is designed to run an entire Access Control System during power outages.

    Powers All AC Components

    The Inverter converts the 12 Volt DC Battery power to 120 Volt AC.

    Maintains a Battery Charge

    The Batteries charge during normal operation.

    Two Batteries Included

    Two included 35 Amp Hour SLA Batteries fit inside the cabinet.

    Technical Specifications



    Mechanical
    • Pure Sine Wave Inverter can be used to power a single Gate Operator with a 1 HP motor, or 2 Gate
      Operators with 1/2 HP motors, and additional Access Control components.
    • Low Battery Alarm: 10.5 V
    • Low Battery Shutdown: 9.5 V
    • Overload Protection
    • Input Short Protection
    • Over Temperature Control (140°F / 60°C)
    • LED Status Indicators
    • Status Report Capability

      Control Circuit

    • Selectable Power Out and Power Start Options
    • Selectable Continuous Operation Mode or Quick Open Mode
    • Low Battery Shutdown and Operate Options
    • 2 Relays
    • Electronic control circuit monitors battery Voltage while System is in inverter mode and commands Gate Operators to open when battery power reaches critical levels.

    IMPORTANT!  Use only with Gate Operators that utilize PSC motors.  Do not use with Operators that utilize motors with separate start and run windings.



    Electrical
    • Continuous Power Output: 1000 Watts
    • Efficiency: 90%
    • Max AC Load Current: Pure Sine Wave = 12.5 A
    • DC Input Voltage: 10 to 15 VDC Nominal 12 VDC
    • Frequency: 60 Hz
    • AC Output Voltage: 120 VAC, 60 Hz

      Batteries

    • Pure Sine Wave Inverter includes two Maintenance Free, Rechargeable, Non-spillable, Sealed
      Lead-Acid (SLA), 12-Volt, 35.0 Ah Batteries (wired in parallel).
    • Inverter Cabinet contains internal room for two Batteries.
    Miscellaneous
    • Environmental Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
    • Weight with two 35 Ah Batteries: approximately 83 lb (37.65 kg)
    • Additional 12-Volt, 35 Ah SLA Battery P/N 1801-005
    Options
    • Post Mount Kit P/N 1000-045
    • Battery Cable Set P/N 1000-044
    • Additional 12-Volt, 35 Ah SLA Battery P/N 1801-005
