1810 Access Plus

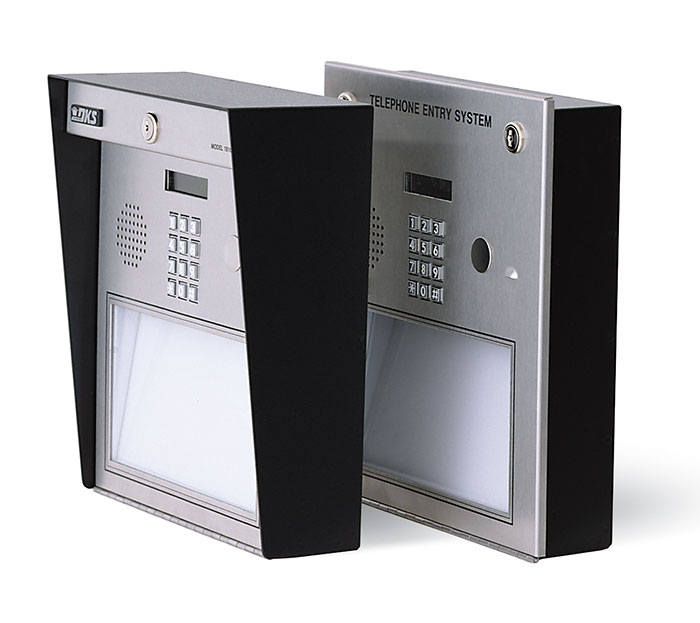

The 1810 Access Plus is a versatile Programmable Telephone Entry System that provides voice communication for up to 27 residents from the main entry point to the resident via the phone network. Up to six (6) additional access points can be controlled by this system using cards, transmitters or keypads.  The system is IP addressable allowing you to program the system (Access Plus Account Manager software required – free download) directly from your PC via a LAN or internet or direct connection.  A built-in modem is also available.  With a host of advanced features (see Specs below), the 1810 Access Plus offers a big time access control system for smaller applications at an affordable price.  Access Plus models do not have any programming display or electronic directory.  Display area is covered with dark plastic on this model.

1810 Access Plus

Residential & Small Multi-Resident Complexes

The Access Plus line combines essential features of our most versatile solutions with the ease and accessibility of computer programming and control for smaller applications. Each Access Plus Series unit allows a Voice and Data connection over either Cellular (requires cellular adapter), VoIP or POTS (Plain Old Telephone Service). DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. With the easy to use Access Plus Account Manager programming software, you can customize the system immediately: set up time zones, add or delete access codes, set up email notifications, and even lock or un-lock a door with the click of the mouse button.

The Model 1810 Access Plus provides voice communication from the entry point between the resident/tenant and guest.

The 1810AP is ideal for smaller residential, multi-home, gated community or apartment house applications. It features a built-in lighted directory that can be printed directly from the Access Plus Account Manager software.

DoorKing’s Access Plus Account Manager Software is a powerful, flexible and easy to use computer program that allows you to manage access control in a variety of controlled access applications.


Communicate with
Guests via Phone
Entry System
Programming via Windows
AP Account Manager
27 Number LED Lit
Printed Directory



Gated Communities
Mixed Use Buildings
Commercial & Industrial


DKS Easy Connect Options


AC and DC Power

DC Power Inverter & Backup Battery


Cellular Wireless


POTS Telephone Line


Desktop Access Plus Manager


Product Features


DKS - 1802 Access Plus Telephone Entry System



Access Plus systems for smaller applications at a much lower cost. Control two entry points for up to 27 users – easily expandable to control an additional six entry points.

DoorKing’s Access PlusAccount Manager Software is a powerful, flexible and easy to use computer program that allows you to manage access control in a variety of controlled access applications.

Create new accounts, program security and permission levels, card and transmitter numbers, hold open time zones, holiday schedules, elevator control functions, and more!



Control Two Doors or Gates

Residences and tenanted properties provide occupants with the ability to remotely control their entry points. Specifically, residents and tenants are able to control two doors or gates using their touch-tone telephones, contingent upon the establishment of voice communication with their guest. This feature provides a sophisticated and convenient means of managing access to your property while maintaining a level of security and privacy. By leveraging this functionality, you can not only ensure that your guests are granted or denied access as needed, but also do so with ease and confidence.

Built-in Display

Indicates door/gate has been opened.

LED Lighted

The directory display is lighted for easy viewing in dark locations.

Modular Design

Created to make installation and service easy.

Up to 6 devices

Up to 6 Access Control Devices (Card Readers, Keypads, Clickers) can be added to the Access Plus System.

Technical Specifications

  • 16 VAC, 20 VA (250 ma)
  • U.L. listed power transformer provided.
  • Ringer equivalence: 0.0 A.
  • Jack type: RJ11C or W.
  • FCC (US): DUF6VT-12874-OT-0
  • DOC (CAN): 1736 4507 A
  • Complies with UL 294; ETL Listed.
Download Access Plus Programming Software

NOTES for Access Plus download:
Use this software with Access Plus systems with circuit board 1970-010 only. (This software cannot be used to program systems with 1871-010 or 1971-010 circuit boards.)

This program will operate in Windows 2000, Windows NT, Windows XP*, Windows Vista, Windows 7 – 8 – 10.

*This program will function with Windows XP provided that Microsoft continues their support of the XP downgrade DLL. If Microsoft discontinues their support of the downgrade DLL, we will discontinue support of Windows XP.

Access Plus Account Manager Details >

  • Environmental: 10°F to 145°F (-12°C to 62°C)
  • Camera Ready: Optional CCTV camera* *may require additional CCTV equipment
  • Optional heater kit available for colder climates
  • “No phone line” intercom system in conjunction with the DKS 1816 AP
  • RF 485 Card Readers, Keypads, RF Controls and Conversion Boards
  • Cellular adapter
  • Relay board allows use of 26-bit devcies


  • Up to 27 resident / tenant phone numbers – plus 23 additional with 1816-AP intercom expansion
  • IP addressable – program from your PC via direct connection, LAN or an internet connection or via built-in modem
  • Intuitive, easy to use, Windows based programming DKS Access Plus software available at doorking.com/software
  • Relay board available which allows use of existing 26-bit wiegand devices
  • Holiday schedule, schedule un-lock / lock times
  • Four (4) hold open time zones
  • Email notifications
  • Live relay control from your PC
  • HD digital voice circuit
  • Add up to six (6) additional (RS-485) card readers, keypads or proxy RF devices
  • 100 device codes (card, keypad, transmitter)
  • 500 event history buffer
  • 10 temporary access codes with start and end dates
  • Built-in lighted directory for 27 names, easily printed with Access Plus software
  • 20-digit dialing, 2-digit directory codes
  • Answer machine bypass feature
  • Up to 30 holidays can be added to access and hold open time zones
  • Control access points from your PC. Schedule lock and unlock times, lock or unlock an access point with the click of a mouse
  • Optional cellular adapter for wireless service
Voice Communication
  • Provides voice communication from the entry point via the central office telephone service for up to 27 Residents/Tenants
  • Can provide voice communication from the entry point for up to 23 residents/tenants without central office phone service by using the 1816 Access Plus telephone intercom add-on module
Access Control
  • Residents/Tenants can control two (2) doors or gates via their touch-tone telephone after voice communication is established with their guest
  • Access Control devices include card readers, keypads, MicroPlus RF controls
  • Up to six (6) additional entry points can be controlled via card, keypad or RF control



Dimensions and Weight – Surface Mount

Shipping weight approximately 20-25 Lbs (9-11.3 kg)



Dimensions and Weight – Flush Mount

Shipping weight approximately 20-25 Lbs (9-11.3 kg)
