2112 eVolve Video Entry System

The 2112 eVolve is our most advanced and versatile residential Video Entry System, allowing the homeowner to program and control their System from virtually anywhere. The 2112 control dashboard is browser-based, so all that’s needed is an internet connection and a laptop, tablet, or smartphone to access the System settings.

With the DKS 2112 Resident app, the System can be controlled right from a smartphone, enabling users to grant entry to guests even from thousands of miles away. The 2112 features broadcast calling, which allows up to four phones to ring simultaneously when the call button is pushed. The 2112 can control up to three entry points and operates with either an internet (VoIP) or cellular connection.

Please note that the 2112 system uses the DKS Cloud for all operating functions and a monthly connection fee applies.

Overview
Features
Tech Specs
Resources
Accessories

2112 eVolve Video Entry System

Video Communication and Access Management From Anywhere With the eVolve Cloud

The 2112 is a Video Entry System designed for residential applications. With the DKS 2112 Resident app and a smartphone, homeowners can see who is at their front door or gate and easily grant or deny them entry with the push of a button.  With the broadcast calling feature, up to four phones will ring when the call button is pressed.  The 2112 can control up to three entry points and uses an internet or cellular connection.

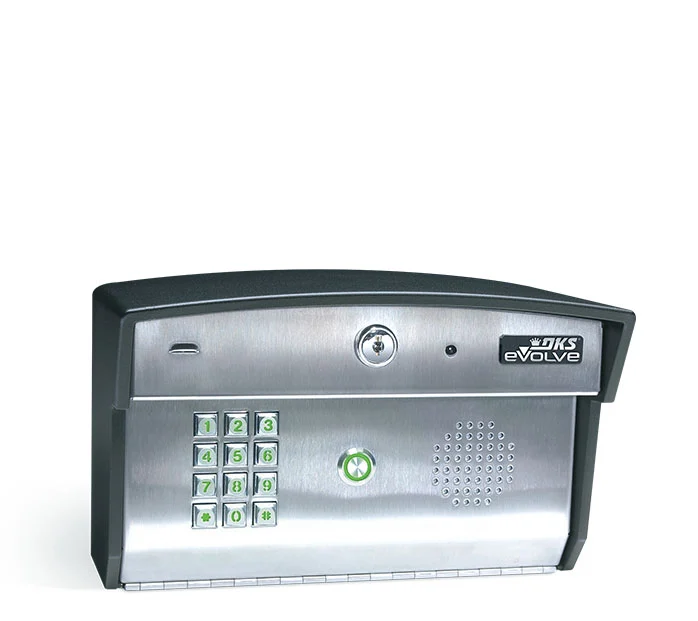

The 2112 eVolve is available in Surface Mount and Flush Mount.



Communicate
with Guests via
Phone & Live Video
Entry System Programming from
Anywhere via
eVolve Cloud
Guests Ring
up to 4
Designated Phones



Find A Dealer

Applications

Single Family Residential
Small Multi-Family Residential



DKS Easy Connect Options

Power

AC and DC Power

DC Power Inverter & Backup Battery

Connection

Cellular Wireless

VoIP/Ethernet

Programming

eVolve Cloud Programmer



Product Features

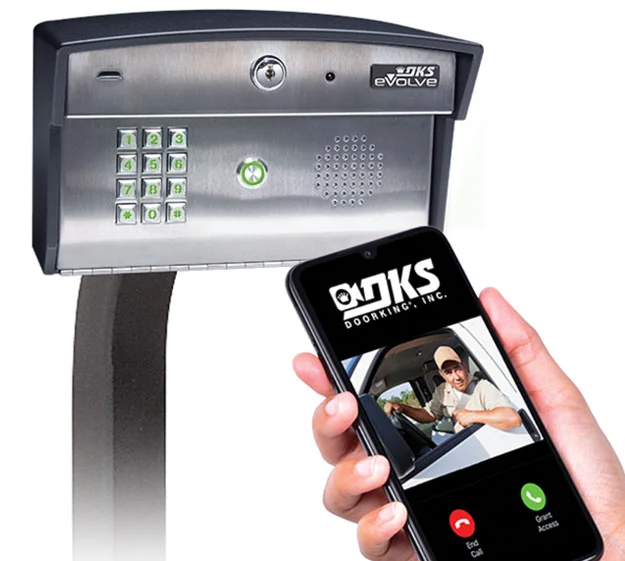

Voice & Video Communication with Guests – Right On Your Smartphone

System administrators can designate up to four phones to receive guest calls from the Entry System via broadcast calling. All four phones will ring when a guest presses the call button, and when one resident answers the other three lines will stop ringing. Whether a landline, cordless, or smartphone is in use, the 2112 makes it easy for residents to communicate with guests from anywhere.





Our Most Advanced Video Entry System Available

DoorKing’s 2112 eVolve Video Entry System enables residents to not only speak on the phone to guests at the gate but also see guests right on their smartphone through video streaming — offering verbal and visual communication from anywhere. Residents can quickly grant guests access from their home phone or smartphone, and can easily program the Video Entry System by logging in to their administrator account through any browser on any internet-connected device.

    %%tb-image-alt-text%%
    Control from Any Device, Anywhere

    The 2112 is a Cloud based System! Homeowners can access the system settings from a laptop, tablet or smartphone with an Internet connection

    %%tb-image-alt-text%%
    DC Backup Power Option

    The 2112 is designed to pair with a 12V DC backup power input to keep it up and running in the event of a blackout.

    %%tb-image-alt-text%%
    Designed for Versatile Residential Access Control

    Choose up to 3 access points to control — any combination of vehicle gate, foot gate, or doors into or within the property can be programmed and managed by the 2112 eVolve.

    %%tb-image-alt-text%%
    eVolve Resident App

    The eVolve Resident App allows those with the appropriate security levels to receive guest calls, speak with guests via voice or video, and grant or deny visitor entry — without gaining access to any Entry System or User administrative settings.

    %%tb-image-alt-text%%
    Internet Connection

    Use your existing internet connection for easy Plug & Play connectivity.

    %%tb-image-alt-text%%
    Program Your Entry System from Any Browser on Any Device

    The eVolve Programmer account enables the administrator to set up access points, designate user security levels, grant access credentials and more. Administrators can log into their Programmer Account via any browser on any device connected to the internet.

    %%tb-image-alt-text%%
    Wireless Cellular Connection Option

    Used if an internet connection is not possible.

    %%tb-image-alt-text%%
    Engineered to Withstand the Elements

    Through rain, snow or blazing sun — DKS products are designed to weather them all with style and functionality. Rated to operate in 10°F to 145°F (-12°C to 62°C), the 2112 eVolve is built tough with a stainless steel faceplate, galvanized steel sub plate, and durable back lighted metal keypad and push-to-call button.

    Technical Specifications

    Control up to 3 Access Points

    Store Up to 40 Phone Numbers

    Use Up to 25 Entry Codes

    Not Used with Device Codes

    Relays Connected via Hardwire

    Specifications
    • 16 VAC or 12-24 VDC Power Input
    • 16VAC, 20 VA transformer provided
    • Three (3) type C relays, 1A max
    • Back Lighted Metal Keypad
    • Back Lighted Metal Push to Call button
    • Stainless Steel Faceplate
    • Galvanized Steel sub plate
    Connectivity Network Connection
    • User provided Internet connection required
    • Standard Residential Package Registration is required
    Connectivity Cellular Connection
    • Cellular connection available if Internet connection is not possible. Additional cellular connection fee applies.
    Programming/User Features
    • Programming via Internet Browser using a laptop, tablet or smartphone
    • DKS Video Calling app
    • All programming is shared in the cloud, updates show as they occur



    Mechanical
    • Cloud based system – standard monthly fee applies to use the 2112
    • User provided Internet connection standard (see cellular options below)
    • Up to 10 residents with a maximum of four (4) phone numbers per resident
    • Entry codes (25 max) can be set to four (4) or five (5) digits
    • Built-in IP Camera for Video Calling
    • Broadcast Calling (up to four numbers simultaneously)
    • Do Not Call schedule
    • Hold Open schedule
    • Entry Code schedule
    • Microphone / Speaker volume control
    • Relay Status
    • Relay (Entry Point) names
    • Independent relay strike times
    • Relay (Door/Gate) control
    Miscellaneous
    • Environmental: 10°F to 145°F (-12°C to 62°C)
    Options
    • Surface or flush mount – specify which.
    • Internal cellular connection kit (AT&T or T-Mobile)
    • External cellular connection kit (AT&T or T-Mobile)

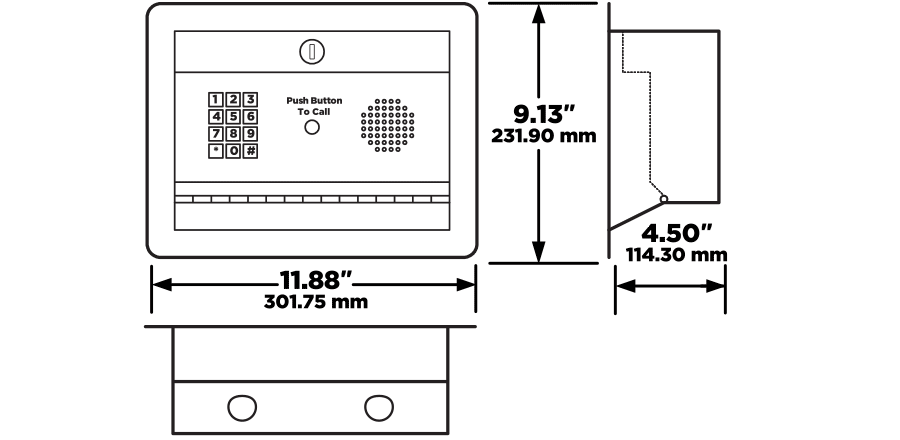

    Surface Mount Model Dimensions and Weight

    Shipping weight approximately 15 lb (7 kg)

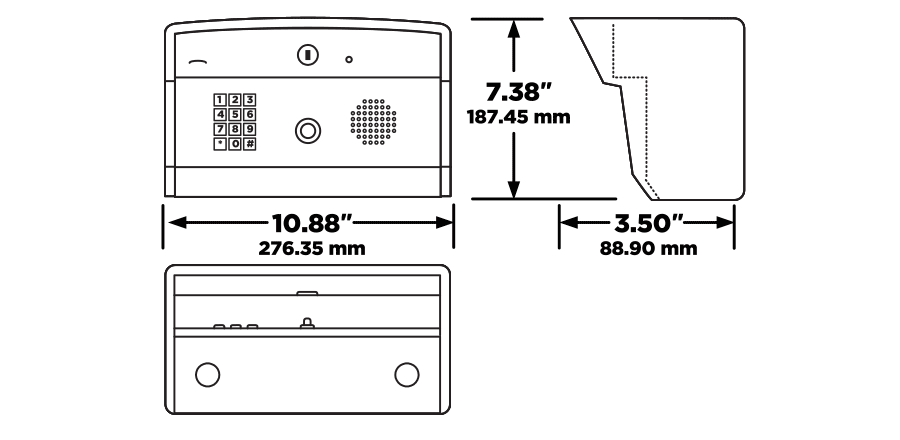

    Flush Mount Model Dimensions and Weight







    The eVolve Cloud Account Manager provides
    complete administrative control over the Video Entry System
    while the Resident App handles entry requests.

    eVolve Cloud Account Manager (for administrators)
    • All System Programming Saved in the Cloud
    • Designate 3 Access Points
    • Set up to 4 Phones for Guest Communication
    • Set Do Not Call Schedules
    • Set Hold Open Schedules
    • Set Entry Code Schedules
    • Control Microphone / Speaker Volume
    • Check Door & Gate (Relay) Status
    • Set Door & Gate (Relay) Names
    • Set Independent Door & Gate (Relay) Unlock/Relock Time Limits
    2112 Resident App (for system users)
    • Grant or Deny Guest Entry with the Touch of a Button
    • Video monitoring allows the homeowner to turn on the Camera and Microphone to view the gate area from the Resident App
    • Broadcast Calling for Simultaneous Ring to all 4 Designated Phones
    • Speak with Guests at Access Point via Voice Communication







    Easy Connection Setup for Any Property

    The 2112 eVolve uses an Internet connection to provide Voice Calling, Video Calling and database management.

    Customers who have easy access to an Ethernet connection at the entry system location can connect with their existing internet services. This provides full system function and performance for the 2112 eVolve.

    Programming is performed through a browser connection from any internet capable device.

    Our customers choose this option if they have convenient access to Ethernet at the entry system location, or if they already have infrastructure for other Ethernet services.

    Customers who do not have an Ethernet connection at the entry system location can use the optional DoorKing Cellular Kit (AT&T or T-Mobile).

    This is an additional cellular hardware kit and there is an additional monthly fee that provides a cellular internet connection for the 2112 eVolve. This will support the full system function and performance.

    Customers choose this option if they have difficulty trenching or running Ethernet Cable from their home network out to the entry system location.

    Ready to Set Up Your New 2112?



    ACTIVATE YOUR DEVICE



    Click or Scan to Download the Resident app for Android or iPhone



    Tech Support

    Find all the documentation needed to install, program, and operate your DKS product below.

    Quick Start Guides

    Owner’s Manuals

    Accessory Manuals

    Easy Connect Manuals

    Tech Tip Videos

    Resources

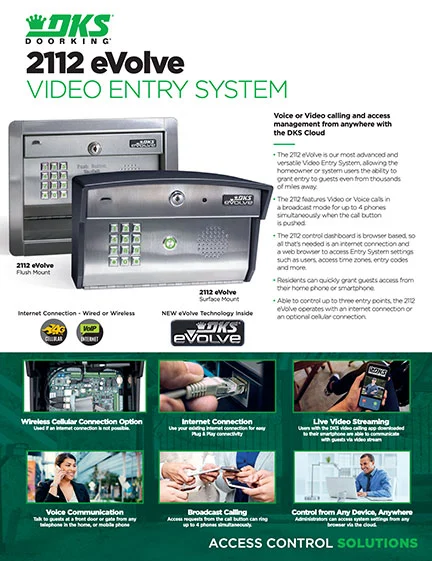

    2112 eVolve | Literature
