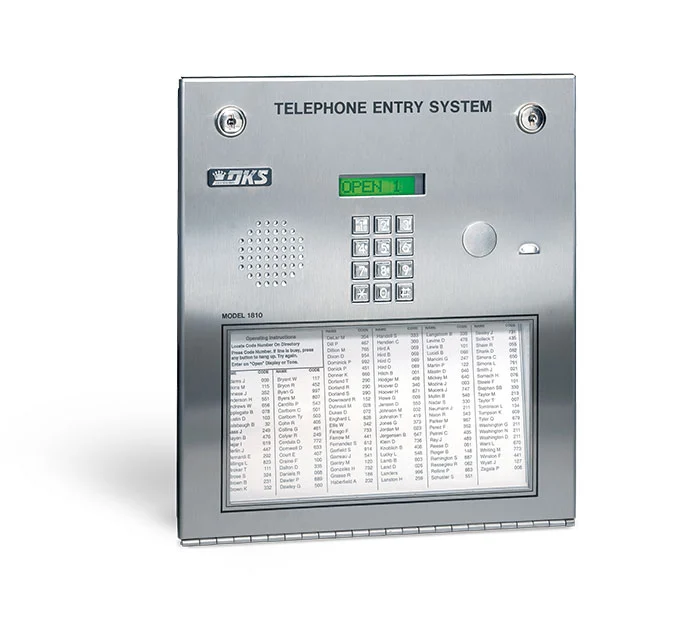

1810 Entry System


The DKS 1810 is an ideal Telephone Entry System that is suited for a wide variety of applications. The built-in lighted directory makes it a complete all-in-one compact unit and it is easy for managers to update by using a word processing program. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. Perfect for small to medium-sized apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites.


1810 Entry System

Self-Contained Telephone Entry System

With its built-in lighted directory, the Model 1810 is a complete self-contained telephone entry system that is ideal for small to medium sized apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites. Managers can easily create and change the directory as needed with a word processing program (templates are available from DoorKing). The 1810 is available in both surface and flush mount styles. Visitors are identified by voice communication via the telephone. Access is granted by pressing “9” on your touch tone telephone, or access can be denied by simply hanging up.



Communicate with
Guests via Phone
Entry System
Programming via System
or Telephone Keypad
132 Number LED Lit
Printed Directory



Applications

Small Multi-Family Residential
Large Multi-Family Residential
Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Light Commercial
Commercial & Industrial
Self Storage
Parking Facilities






Product Features





Small to Medium-sized Facilities

Model 1810 is a complete self-contained telephone entry system that is ideal for small to medium-sized facilities, where managers can easily create and change directories as needed.



1812ap Telephone Entry System Grant Guest Access



Up to 600 Phone Numbers

The 1810 Telephone Entry System provides a capacity of up to 600 phone numbers and enables visitors to be identified through voice communication using a telephone. Access to the premises can be granted by pressing the “9” key on a touch-tone telephone, while access denial can be executed by simply hanging up. This system offers a straightforward and efficient method for identifying and admitting visitors to a facility.

Built-in Display

Indicates door/gate has been opened.

LED Lighted

The directory display is lighted for easy viewing in dark locations.

Modular Design

Created to make installation and service easy.

Two Mount Styles

Surface and Flush are available.

Technical Specifications

Use Up to 1,000 Entry Codes

Control up to 2 Access Points

Store Up to 600 Phone Numbers

Not Used with Device Codes

Relays Connected via Hardwire

Specifications
  • Stores up to 600 telephone numbers.
  • EEPROM Memory Chip.
  • Full duplex communication.
  • 4-digit entry codes; 1000.
  • Six, 5-digit entry codes.
  • 16 VAC, 20 VA (250 ma) power transformer provided.
  • Ringer equivalence: 0.0 A.
  • Jack type: RJ11C or W.
  • FCC (US): DUF6VT-12874-OT-0
  • DOC (CAN): 1736 4507 A
  • Complies with UL 294; ETL Listed.
Miscellaneous
  • Environmental: 10°F to 145°F (-12°C to 62°C)
  • Camera Ready: Optional CCTV camera* *may require additional CCTV equipment
  • Optional heater kit available for colder climates
  • Surface or flush mount – specify which.
  • Stainless steel housing (surface mount only).



Mechanical
  • Programmable directory codes (1-4 digits).
  • 16-digit dialing.
  • Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number.
  • 5-digit entry codes for special needs.
  • Built-in LED lighted directory.
  • LED lighting illuminates directory.
  • Built-in time clock.
  • Hold open time zones.
  • Entry code time zones.
  • “Flash” entry codes.
  • Built-in postal lock provision.
  • Programming display.
Miscellaneous
  • Surface or flush mount – specify which.
  • Stainless steel housing (surface mount only).





Dimensions and Weight – Surface Mount

  • Shipping weight approximately 20-25 Lbs (9-11.3 kg)
  • Surface mount dimensions: 13″H x 11.25″W x 4.75″D.





Dimensions and Weight – Flush Mount



  • Shipping weight approximately 20-25 Lbs (9-11.3 kg)
  • Flush mount dimensions: 13.25″H x 12″W x 3.25″D.
