2108 eVolve Video Entry System

The 2108 eVolve is our most advanced and versatile residential Video Entry System, allowing the homeowner to program and control their system from virtually anywhere. The 2108 control dashboard is browser based, so all that’s needed is an internet connection and a laptop, tablet or smartphone to access the system settings.

Overview
Features
Tech Specs
Resources
Accessories

2108 eVolve Video Entry System

Video Calling and Access Management From Anywhere With the eVolve Cloud

The 2108 eVolve is our most advanced and versatile residential Video Entry System, allowing the homeowner to program and control their System from virtually anywhere. The 2108 control dashboard is browser-based, so all that’s needed is an internet connection and a laptop, tablet, or smartphone to access the System Settings.

With the DKS 2108 app, the System can be controlled right from a smartphone, enabling users to grant entry to guests even from thousands of miles away. The 2108 features broadcast calling which allows up to four (4) phones to ring simultaneously when the call button is pushed. The 2108 can control up to three entry points and operates with either an internet (VoIP) or cellular connection.

Please note that the 2108 system uses the DKS Cloud for all operating functions and a monthly connection fee applies.



Communicate
with Guests via
Phone & Live Video
Entry System Programming from
Anywhere via
eVolve Cloud
Guests Ring
up to 4
Designated Phones



Find A Dealer

Applications

Single Family Residential
Small Multi-Family Residential



DKS Easy Connect Options

Power

AC and DC Power

DC Power Inverter & Backup Battery

Connection

Cellular Wireless

VoIP/Ethernet

Programming

eVolve Cloud Programmer



Product Features

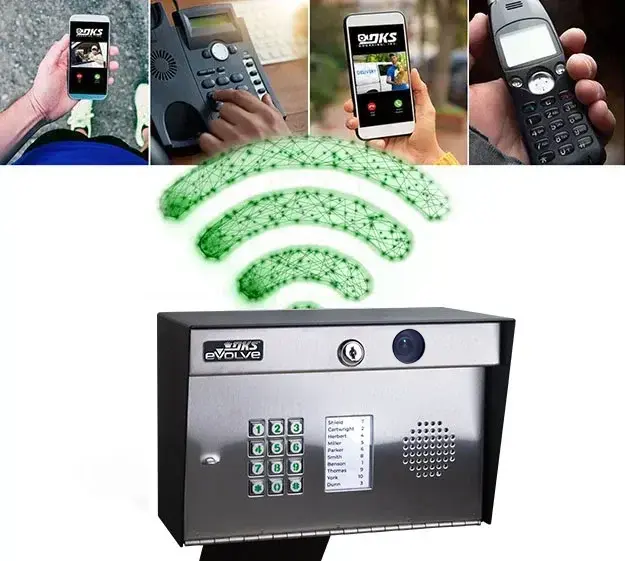

Voice & Video Communication with Guests – Right On Your Smartphone

System administrators can designate up to 4 phones to receive guest calls from the Entry System via broadcast calling. All 4 phones will ring when a guest presses the call button, when one resident answers the other 3 lines will stop ringing. Landline, cordless or smartphone, the 2108 makes it easy for residents to communicate with guests from anywhere.





Our Most Advanced Video Entry System Available

DoorKing’s 2108 eVolve Entry System enables residents to not only speak on the phone to guests at the gate but also see guests right on their smartphone through video streaming — offering verbal and visual communication from anywhere. Residents can quickly grant guests access from their home phone or smartphone, and can easily program the Entry System by logging in to their administrator account through any browser on any internet connected device.

    Technical Specifications

    Control up to 3 Access Points

    Store Up to 40 Phone Numbers

    Use Up to 25 Entry Codes

    Not Used with Device Codes

    Relays Connected via Hardwire

    Specifications
    • 16VAC, 20 VA transformer provided
    • 12VDC Backup power input
    • Three (3) type C relays, 1A max
    • Back Lighted Metal Keypad
    • Back Lighted Metal Push to Call button
    • Stainless Steel Faceplate
    • Galvanized Steel sub plate
    Connectivity Network Connection
    • User provided Internet connection required
    • Standard Residential Package Registration is required
    Connectivity Cellular Connection
    • Cellular connection available if Internet connection is not possible. Additional cellular connection fee applies.
    Miscellaneous

    Environmental: 10°F to 145°F (-12°C to 62°C)



    Mechanical
    • DKS 2108 Video Calling app
    • All programming is shared in the cloud, updates show as they occur
    • Cloud based system – standard monthly fee applies to use the 2108
    • User provided Internet connection standard (see cellular options below)
    • Up to 10 residents with a maximum of four (4) phone numbers per resident
    • Entry codes (25 max) can be set to four (4) or five (5) digits
    • Built-in IP Camera for Video Calling
    • Broadcast Calling (up to four numbers simultaneously)
    • Do Not Call schedule
    • Hold Open schedule
    • Entry Code schedule
    • Microphone / Speaker volume control
    • Relay Status
    • Relay (Entry Point) names
    • Independent relay strike times
    • Relay (Door/Gate) control
    Programming/User Features
    • Programming via Internet Browser using a laptop, tablet or smartphone
    • DKS Video Calling app
    • All programming is shared in the cloud
    • Updates show as they occur

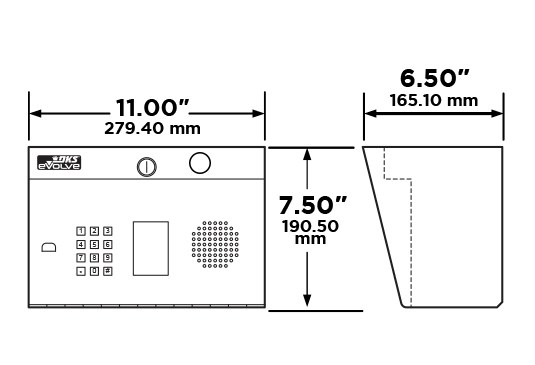

    Dimensions and Weight

    • Surface mount dimensions: 7.5″H x 11″W x 6.5″D.
    • Shipping weight approximately 15 lb (7 kg)









    The Programmer browser login provides
    complete control over the Entry System,
    while the Resident App handles entry requests.



    DKS Programmer Browser Login(for administrators)
    • All System Programming Saved in the Cloud
    • Designate 3 Access Points
    • Set up to 4 Phones for Guest Communication
    • Set Do Not Call Schedules
    • Set Hold Open Schedules
    • Set Entry Code Schedules
    • Control Microphone / Speaker Volume
    • Check Door & Gate (Relay) Status
    • Set Door & Gate (Relay) Names
    • Set Independent Door & Gate (Relay) Unlock/Relock Time Limits
    DKS 2108 Resident App (for system users)
    • Grant or Deny Guest Entry with the Touch of a Button
    • Video monitoring allows the homeowner to turn on the Camera and Microphone to view the gate area from the Resident App
    • Broadcast Calling for Simultaneous Ring to all 4 Designated Phones
    • Speak with Guests at Access Point via Voice Communication







    Easy Connection Setup for Any Property

    The 2108 eVolve uses an Internet connection to provide Voice Calling, Video Calling and database management.

    Customers who have easy access to an Ethernet connection at the entry system location can connect with their existing internet services. This provides full system function and performance for the 2108 eVolve.

    Programming is performed through a browser connection from any internet capable device.

    Our customers choose this option if they have convenient access to Ethernet at the entry system location, or if they already have infrastructure for other Ethernet services.

    Customers who do not have an Ethernet connection at the entry system location can use the optional DoorKing Cellular Kit (AT&T or T-Mobile).

    This is an additional cellular hardware kit and there is an additional monthly fee that provides a cellular internet connection for the 2108 eVolve. This will support the full system function and performance.

    Customers choose this option if they have difficulty trenching or running Ethernet Cable from their home network out to the entry system location.
