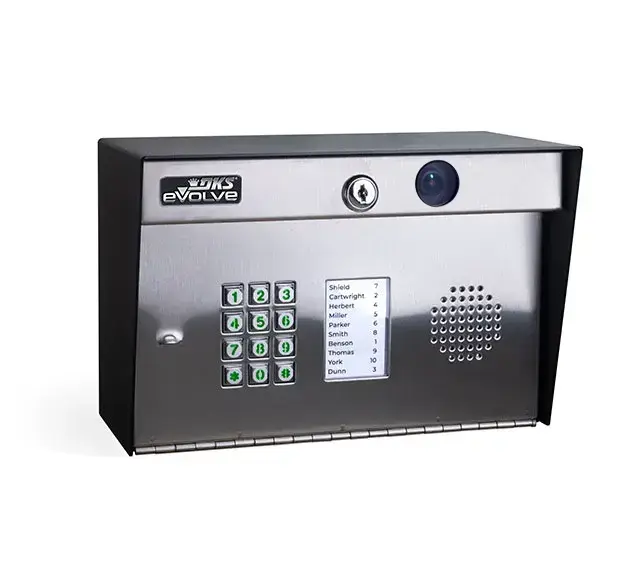

2108 eVolve
Video Entry System
Voice or Video calling and access management from anywhere with the DKS Cloud
- The 2108 eVolve is an advanced and versatile Video Entry System, allowing the homeowner or system users the ability to grant entry to guests even from thousands of miles away.
- The 2108 features Video or Voice calls in a broadcast mode for up to 4 phones simultaneously when the call button is pushed.
- Available with built-in paper directory for 12 names
- The 2108 control dashboard is browser based, so all that’s needed is an internet connection and a web browser to access Entry System settings such as users, access time zones, entry codes and more.
- Residents can quickly grant guests access from their home phone or smartphone.
- Able to control up to three entry points, the 2108 eVolve operates with an internet connection or an optional cellular connection.
Wireless Cellular Connection Option
Used if an internet connection is not possible.
Internet Connection
Use your existing internet connection for easy Plug & Play connectivity
Live Video Streaming
Users with the DKS video calling app downloaded to their smartphone are able to communicate with guests via video stream
Voice Communication
Talk to guests at a front door or gate from any telephone in the home, or mobile phone
Broadcast Calling
Access requests from the call button can ring up to 4 phones simultaneously.
Control from Any Device, Anywhere
Administrators can access system settings from any browser via the cloud.
ACCESS CONTROL SOLUTIONS
| MODEL | 2108 |
|---|---|
| PHONE NUMBERS | 10 Residents, four (4) phone numbers per resident |
| ENTRY CODES1 | Programmable to four (4) or five (5) digits |
| RELAYS | Three (3) Type C |
1. Entry codes grant access when entered on the system keypad.
TECHNICAL FEATURES
MECHANICAL
Programming via Internet Browser using a laptop,
tablet or smartphone
DKS Video Calling app
All programming is shared in the cloud
Updates show as they occur
CONNECTIVITY NETWORK CONNECTION
User provided Internet connection required
Standard Residential Package Registration is required
CONNECTIVITY CELLULAR CONNECTION
Cellular connection available if Internet connection is not possible. Additional cellular connection fee applies.
FEATURES
Cloud Based system
Built-in IP Camera for Video Calling
Broadcast Calling (up to four numbers simultaneously)
10 Residents, maximum of four (4) phone
numbers per resident
Entry codes can be set to either four (4) or five (5) digits
Do Not Call schedule
Hold Open schedule for each relay
Entry Code schedule
Relay (Door/Gate) Status: Closed – Open – Held Open
Each relay (Entry Point) can be named
Independent relay strike times
Relay (Door/Gate) control: Close – Open – Hold Open
ELECTRICAL/MECHANICAL
16VAC, 20 VA transformer provided
12VDC Backup power input
Three (3) Form C relays, 1A max
Back Lighted Metal Keypad
Back Lighted Metal Push to Call button
Stainless Steel Faceplate
Galvanized Steel sub plate
MISCELLANEOUS
Environmental: 10°F to 145°F (-12°C to 62°C)
Shipping weight approximately 15 lb (7 kg)
FCC (US) DUF6VT-12874-OT-T
DOC (CAN) 1736 4528 A
