MOUNTING KIOSKS

By /

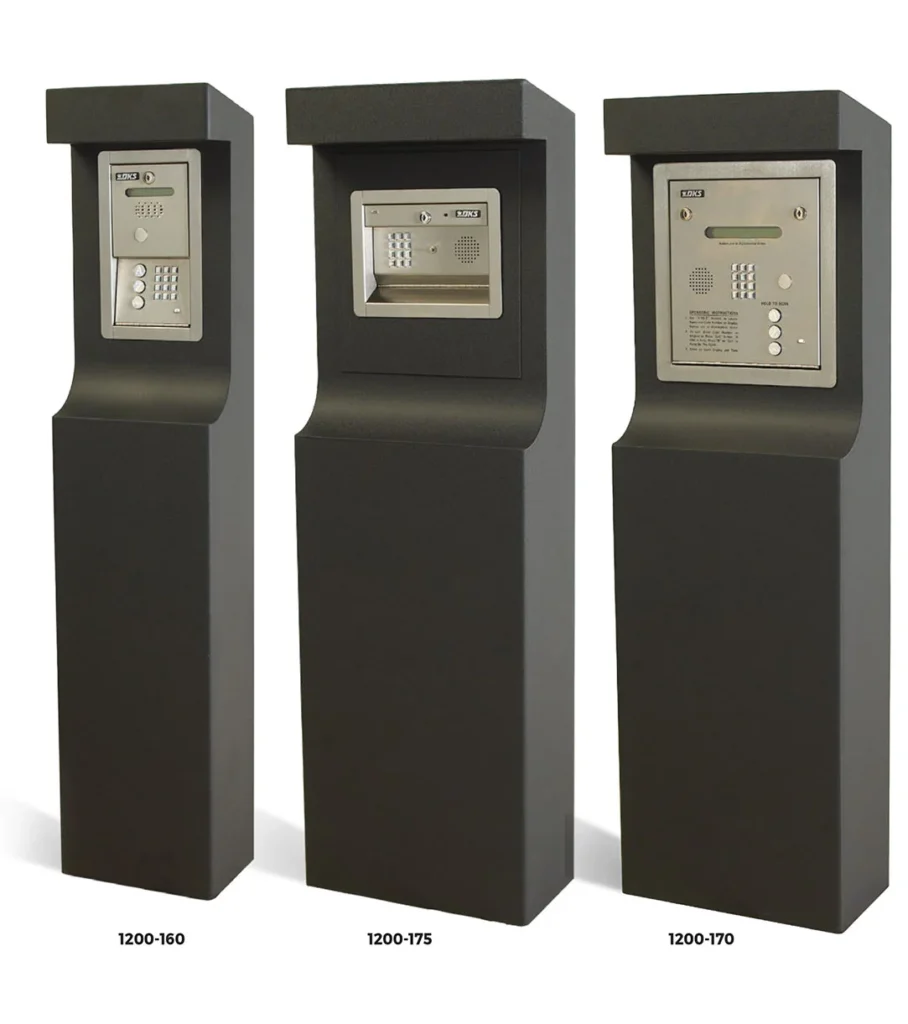

MOUNTING KIOSKS

Access Control

IDEAL FOR WALK-UP PEDESTRIAN APPLICATIONS
  • Telephone entry system mounting kiosks are ideal for walk-up pedestrian applications and are designed for DKS Flush Mount systems
  • Baked on crinkle coat enamel finish is durable and weather resistant
  • Lockable electrical panel includes 4 convenience outlets for accessory transformers, and mounting space for surge suppressors and an access control radio receiver
  • Kiosks feature ultra-bright energy saving LEDs to provide illumination to the entry system
%%tb-image-alt-text%%

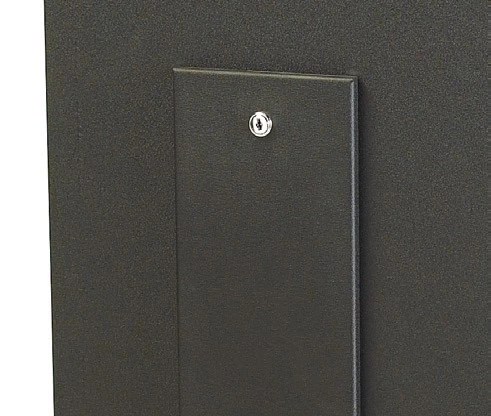

Lockable

electrical compartment

%%tb-image-alt-text%%

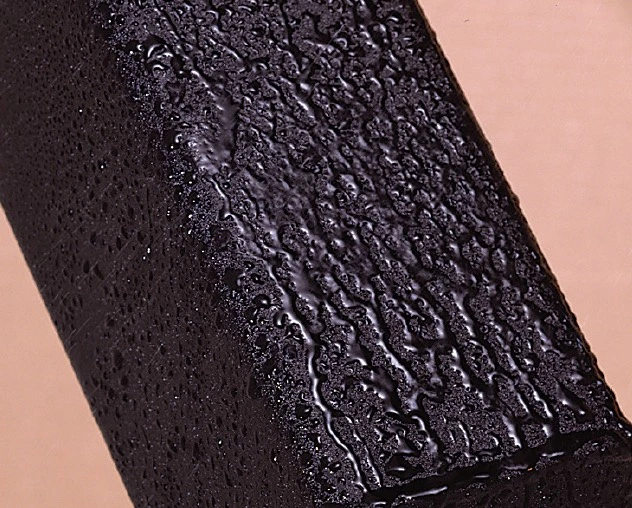

Baked on Enamel Finish

for weather resistance

%%tb-image-alt-text%%

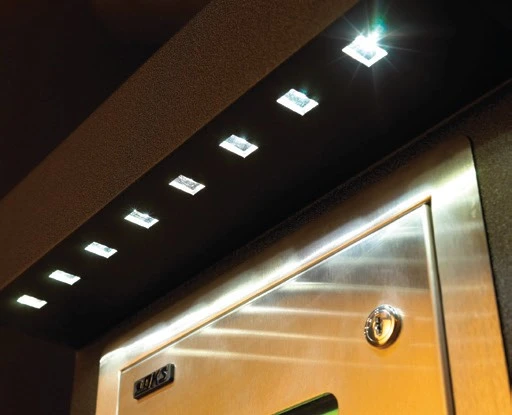

Built-in

ultra-bright LED lighting

%%tb-image-alt-text%%

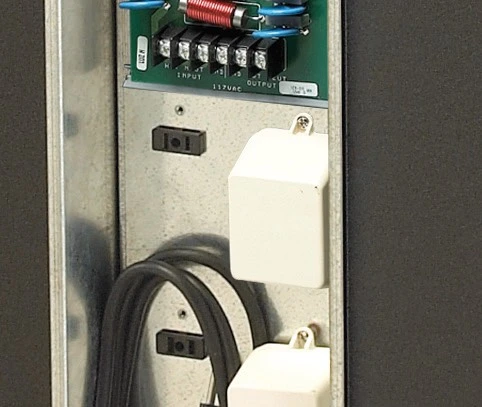

Electrical Compartment

Electrical Compartment with Mounting Space for Transformers and Surge Protection

ACCESS CONTROL SOLUTIONS

Diagram of three mounting kiosk models (1200-160, 1200-170, and 1200-175) showing front and side views with labeled dimensions in inches and millimeters for height, width, and depth.

TECHNICAL FEATURES

MOUNTING KIOSKS

1200-160

60” high x 13” wide x 9” deep

Use with DKS 1802 and 1802-EPD Flush Mount
units only.

1200-170

60” high x 18.5” wide x 10” deep

Use with DKS 1803, 1810, 1833, 1834, 1835, 1837
Flush Mount 80 Series models only.

1200-175

60” high x 18.5” wide x 10” deep

Use with DKS 1812 Classic, 1812 Plus and 1812
Access Plus Flush Mount units only.

All Kiosks

Designed for use with Flush Mount systems only.

Kiosks are pad mounted.

Locked accessory compartment holds four (4)
transformers, three (3) surge suppressors, and a
radio receiver.

All models include ultra-bright LED lighting to
illuminate entry system
