1175 Overhead Operator

The DKS 1175 Overhead Gate Operator is designed for high traffic underground parking applications serving gated communities, apartment complexes, commercial buildings and industrial sites. An optional cover is available.

Overview
Features
Tech Specs
Resources
Accessories
  • DKS 1175 Gate Operators

1175 Overhead Operator

Industrial Strength – Parking Structure – Low Profile

The 1175 overhead gate operator is designed to operate overhead type vehicular gates mounted on jamb track or jamb type hardware. Overhead gates are typically used in underground parking applications where headroom is minimal. The low profile design and quiet operation of the 1175 makes it ideal for these applications.

This Operator is not designed for residential applications and should never be used to operate overhead sectional garage doors.

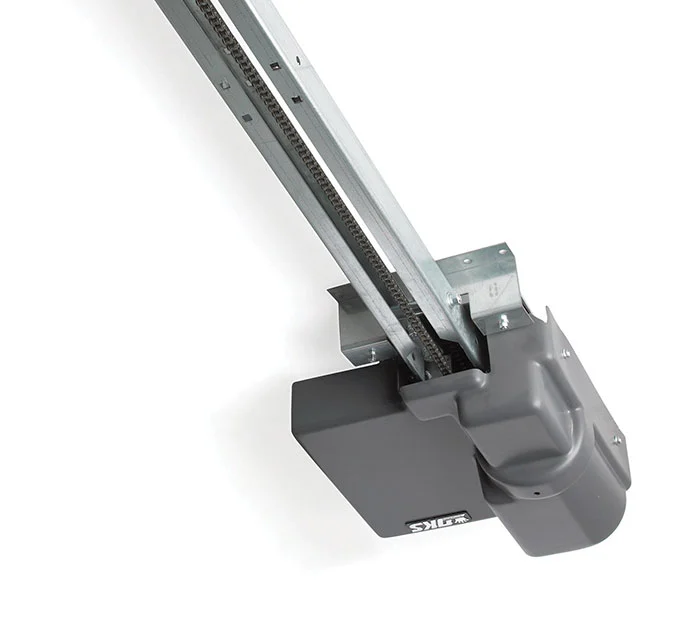

The solid steel frame and belt-driven gear box make this Operator one of the quietest in the market today. Shown with optional cover.



Compatible with
Overhead Gates
Overhead Mount Only
Designed for Commercial Use



Find A Dealer

Applications

Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities
Maximum Security

Product Features

DKS 1175 Gate Operators



Polyethylene Cover

Optional cover available for a sleek look.



DKS Doorking 1175 Gate Operator Keyed Manual Release



Keyed Manual Release

For heavy-duty trolly in case of power failure.



    Plug-in Loop Detectors

    Simplify wiring and make installation easy.

    Direct Drive Limit Switches

    Easily adjustable, no need to reset after a power outage.

    Low Profile

    For low-clearance underground parking.

    Shock Mounts

    Greatly reducees noise and vibration.



    Technical Specifications

    8′ / 10′ / 12′ / 14′ Maximum Gate Heights

    12′ / 14′ / 16′ / 18′ Maximum Gate Width

    Opens Approximately 10″ per Second

    1/2 HP Continuous Duty Motor

    Specifications
    • Maximum gate height up to 14-feet*.   (*Dependent on the rail assembly ordered).
    • Maximum gate width 25-feet*.   (*Assumes gate is in good condition with properly adjusted hardware.   Other external factors may affect the performance of the gate operator.)
    • 40:1 gear reduction running in a continuous oil bath.
    • #40 chain.
    • 3-inch rails.
    • 1/2 HP continuous-duty motor.
    • 115 VAC.
    • Class II, III and IV applications only.
    • Compliant with UL 325 and 991.   ETL Listed.   (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator.   Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)





    Mechanical
    • Direct driven limit nuts.
    • Gate tracker reporting output.
    • Ports for plug-in loop detectors.
    • Fail-secure, keyed quick release.
    • Shock mounts.
    • Heavy-duty 3-inch rails.
    • Programming switches.
    • Built-in power On/Off switch.
    Options
    • Surge suppressors.
    • Rail assembly for 8-foot high gate.
    • Rail assembly for 10-foot high gate.
    • Rail assembly for 12-foot high gate.
    • Rail assembly for 14-foot high gate.
    • Operator cover – required if powerhead is less than 8-feet above ground.





    Dimensions and Weight

    Dimensions: 19.75″W x 9″H x 149″- 221″L (Length depends on rail assembly ordered).





    Dimensions and Weight – Optional Cover

    Dimensions: 11.50″H
