ProxPlus®Card Readers
Access Control
Extremely High Security and Compatibility in One Card
ProxPlus Secure
- Reads only ProxPlus Secure cards which offer an extremely high level of encryption
- Output from reader is 26-bit Wiegand format
- 13.56 MHz frequency
- Three-color LED
- 5-Year limited factory warranty
*MIFARE® is a registered Trademark of NXP B.V.
ProxPlus Secure Applications
are available for applications that require a higher level of security, providing a variety of security levels and clearances for vulnerable locations such as ports, schools, laboratories, utility facilities, airports, and more.
Card Scanner
Enables administrators to view card number of unlabeled cards, keeping security intact. (Optional Accessory)
Two Levels of Security
ProxPlus Secure cards and card readers include an encrypted unique identifier making the cards almost impossible to duplicate.
Functional Design

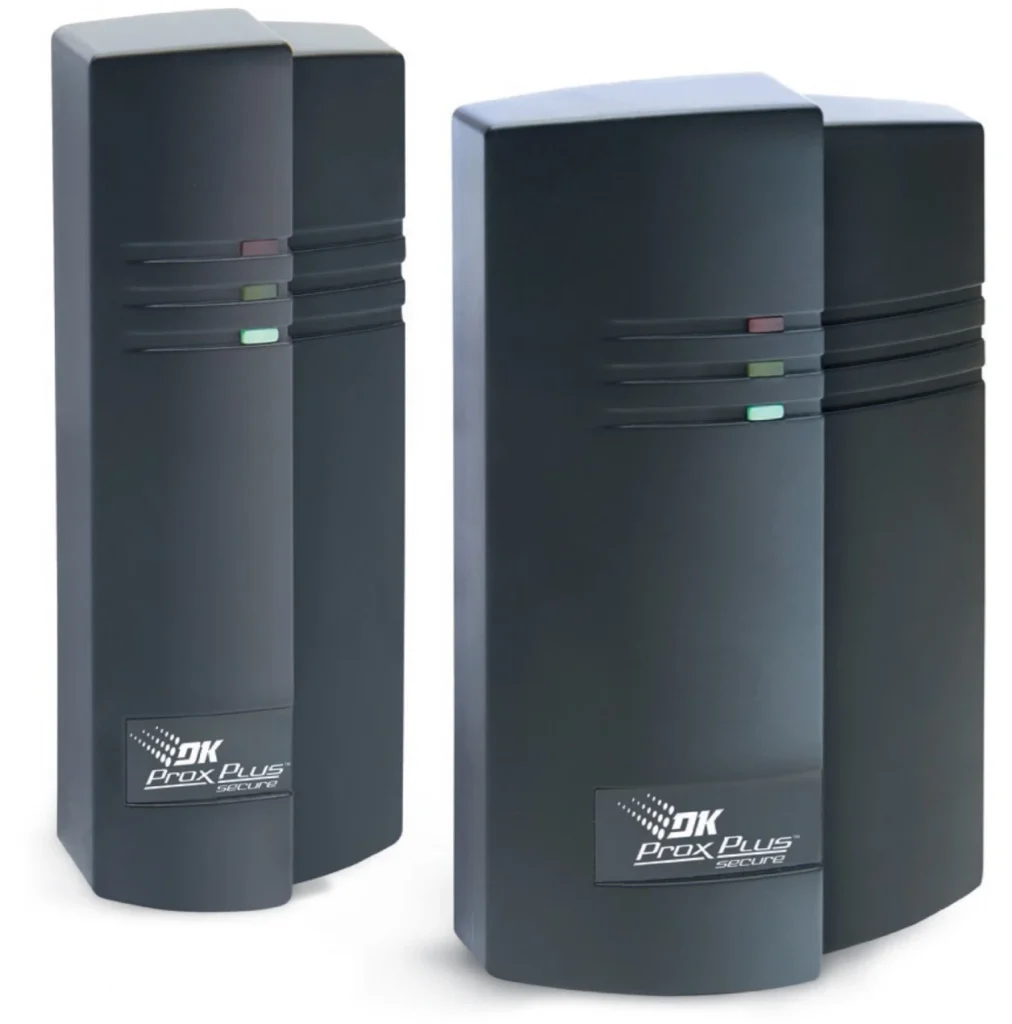

Card Readers come in two sizes to accommodate sizeable high-traffic access points and even small or awkward locations where wall space is at a premium.
ACCESS CONTROL SOLUTIONS

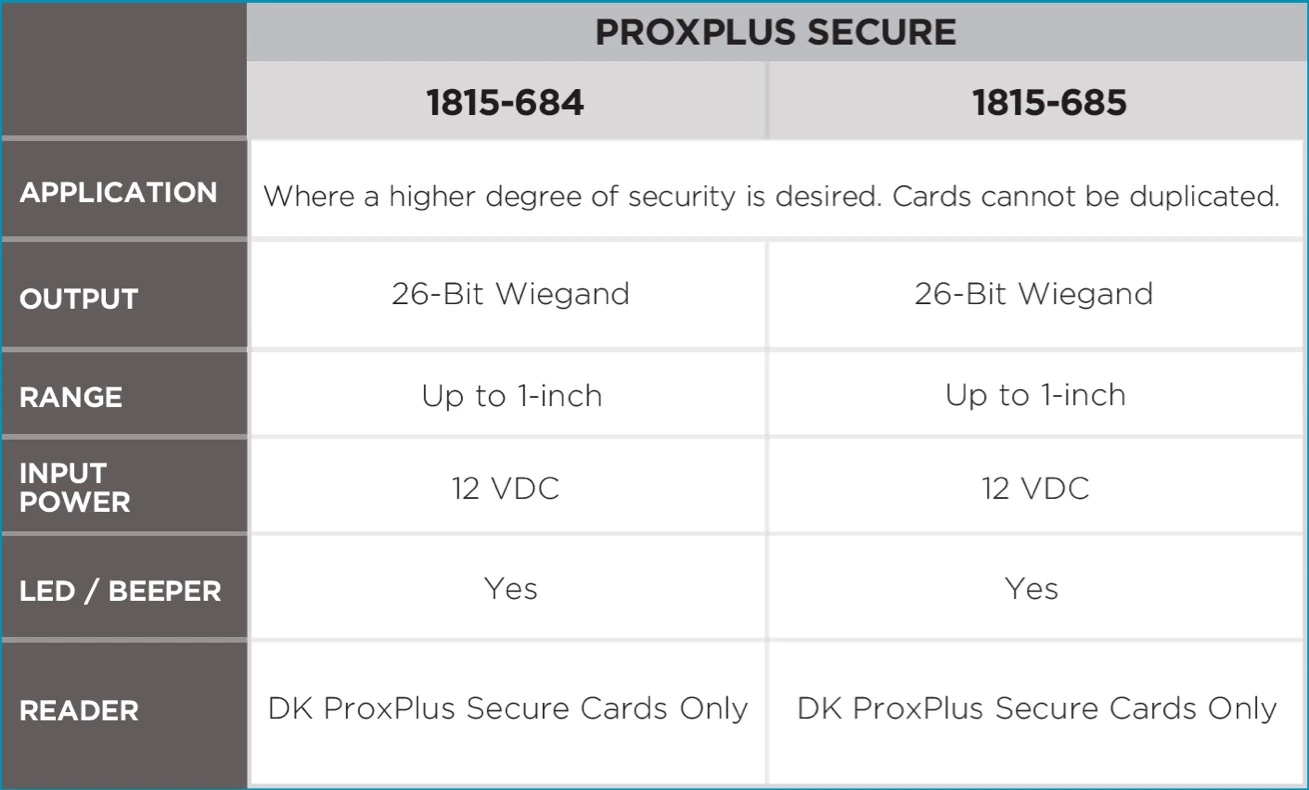

TECHNICAL FEATURES
DK PROXPLUS SECURE READERS
ProxPlus Secure
1815-684; Up to 1-inch read range
1815-685; Up to 1-inch read range
These readers will read only DoorKing ProxPlus Secure cards and output the card code in a 26-bit Wiegand format. These readers offer higher security levels and are not compatible with Mifare 4 or 7 byte UID cards.
DK PROXPLUS SECURE CARDS
Factory Coded Cards
These cards are factory pre-coded. Card numbers may or may not be in numerical sequence.
1508-252 Secure Cards
1508-257 Secure Key Tags
Custom Programmed Cards
These cards include sequential coding, specific card numbers and specific start / stop numbering sequences.
1508-250 Secure Cards
1508-255 Secure Key Tags
MIFARE READER
Use these readers only to match to existing Mifare Classic 4 or 7 byte UID cards that are already in use. The 1815-690 card scanner is required to identify the actual Wiegand card code so that it can be entered into the access controller.
Mifare Reader
1815-680; Up to 1-inch read range
1815-681; Up to 1-inch read range
CARD SCANNER
ProxPlus Secure Card Scanner
1815-692 Reads ProxPlus Secure Cards
Use this card scanner when the card code is not printed on the card or the code has worn off the card. This scanner will read ProxPlus Secure cards only.
Mifare Card Scanner
1815-690 Reads Mifare Cards
Because of the nature of how the UID code generates the 26-bit Wiegand code in Mifare readers, the card scanner MUST be used to ensure the correct Wiegand code is entered in the access controller.
Scanners require ProxPlus/Mifare card scanner software – free download at doorking.com.
ELECTRICAL
Input Voltage / Current
1815-680: 12 VDC – 200mA
1815-681: 12 VDC – 200mA
1815-684: 12 VDC – 200mA
1815-685: 12 VDC – 200mA
3 color LED (Red, Yellow, Green), Piezo Beeper
Output Format 26-bit Wiegand
Miscellaneous
Operating Environment: -31°F to 149°F (-35°C to 65°C)
DOORKING, INC.
Access Control Solutions since 1948
120 Glasgow Avenue, Inglewood, California 90301 U.S.A.
Tel: 310-645-0023 FAX: 310-641-1586
www.doorking.com
© 2026 All Rights Reserved. Product specifications may change without notice. Rev. 9/26
MEMBER:
