GATE OPERATOR CONTROL STATIONS

By /

GATE OPERATOR CONTROL STATIONS

Access Control

CONTROL STATIONS PROVIDE MANUAL CONTROL FOR A SINGLE GATE CONTROL REQUIREMENTS

CONTROL STATIONS – INTERIOR

  • Controls mount into a single-gang electrical box (except 1211-081 and 1200-016)
  • 1211-081 exit button is mullion mounted
  • 1200-016 is surface mounted
  • Stainless steel faceplates
  • Key switch uses mortise cylinder that can be re-keyed

CONTROL STATIONS – DOOR/GATE

  • Open – Close – Stop indoor and outdoor control Stations
  • Manual gate controller provides normal, momentary open or hold open operation

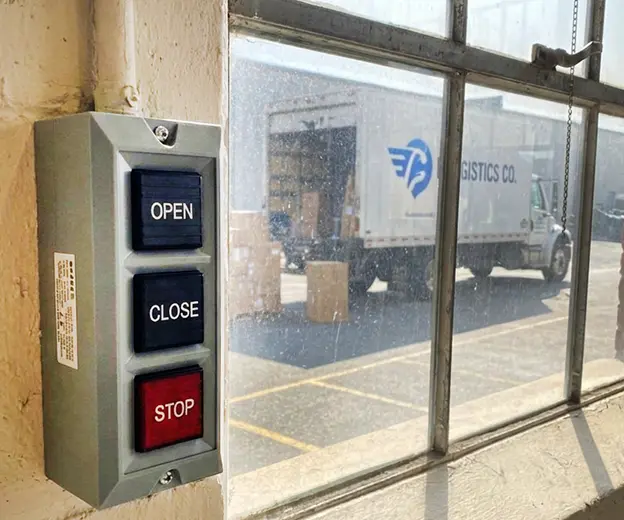

Interior Surface Mount

1200-016 3-button gate controller is a surface mount control station for indoor use

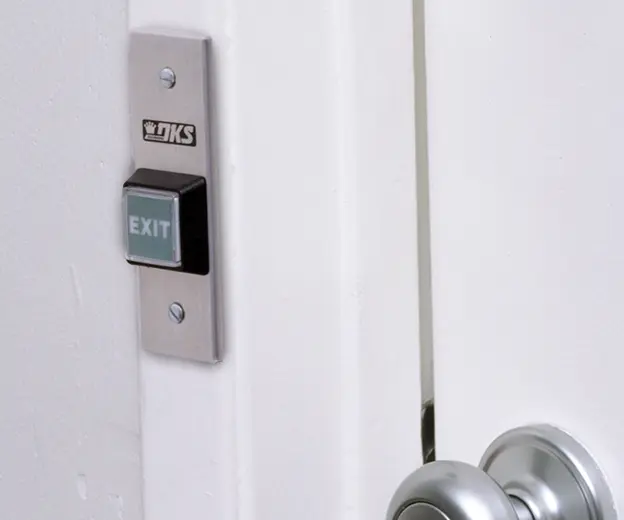

Slim Design

allows the 1211-081 exit button to be mounted into the door jam

Construction

ready for easy wall installation

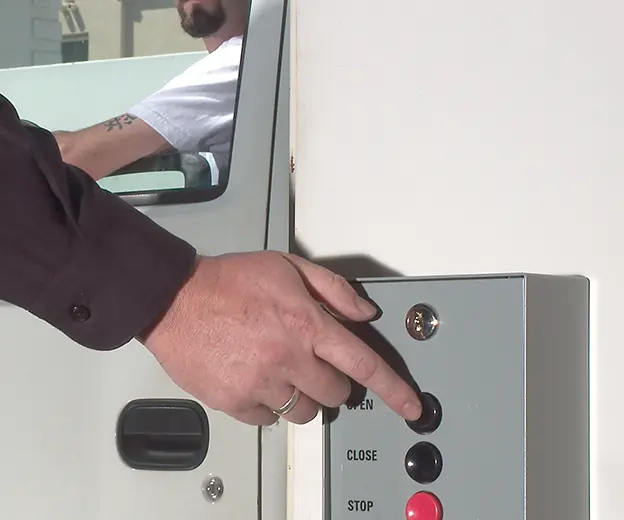

Manual Control

for easy access at guarded entries

ACCESS CONTROL SOLUTIONS

TECHNICAL FEATURES

INTERIOR CONTROL STATIONS

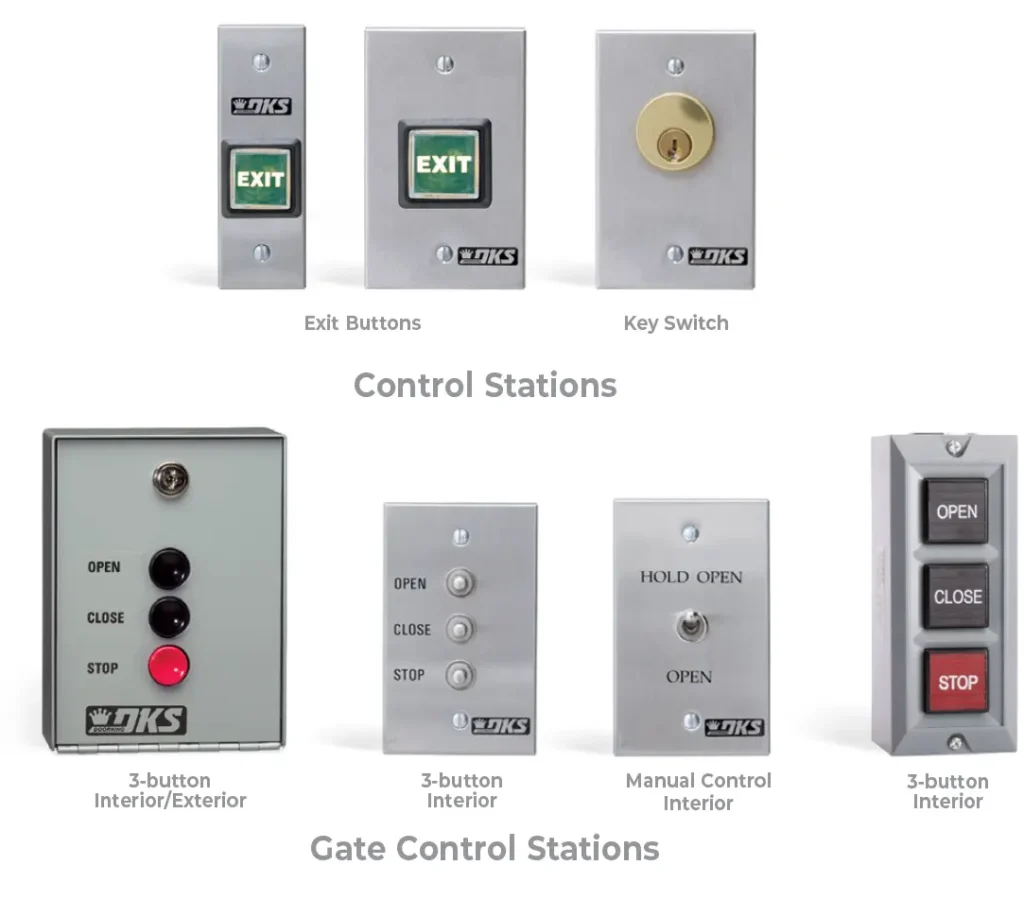

Models

1211-080 Exit Button

  • Provides a release device for doors secured with a magnetic lock or electric strike
  • Lighted Exit push buttons
  • Requires 12-VDC power to illuminate exit button.
  • Stainless steel faceplate

1211-081 Exit Button

  • Stainless steel faceplate
  • Requires 12-VDC power to illuminate exit button
  • Indoor use only

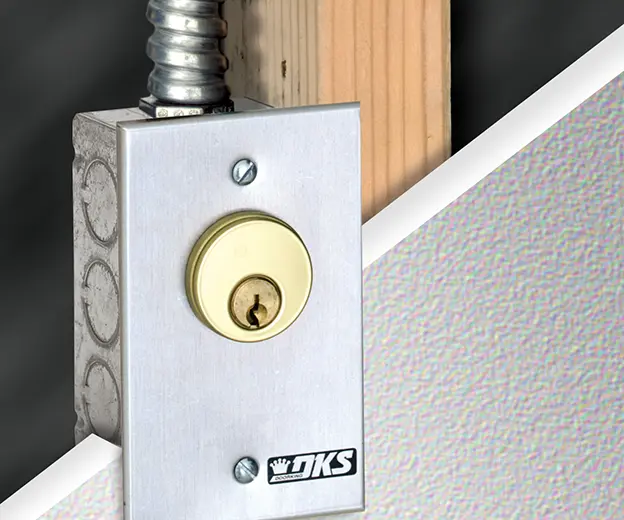

1206-080 Mortise Cylinder Keyswitch

  • Momentary contact
  • Mortise cylinder can be re-keyed to match existing locks
  • N.O. or N.C. operation
  • Indoor use only

Features All interior control are designed to mount into a single-gang electrical box except the model 1211-081 exit button, which is designed for mullion mounting. All interior controls are designed to control a single door/gate only

Operating Temperature: -10°F to 145°F (-23°C to 62°C)

DOOR/GATE OPERATOR CONTROL STATIONS

Models

1200-006 3-Button

  • Ideal for exterior applications, interior too
  • Can be surface or post mounted
  • OPEN – CLOSE – STOP control
  • Operates with DKS models 6050, 6100 and 6300 only

1200-007 / 1200-221 3-Button Interior

  • Provides manual control of automated vehicular gates, interior use only
  • OPEN – CLOSE – STOP control
  • 1200-007: Operates with DKS models 6050, 6100 and 6300 only
  • 1200-221: Operates with all other DKS gate operator models

1200-016 3-Button1

  • Can be surface mounted
  • NC Stop circuit
  • OPEN – CLOSE – STOP control
  • Can be used with most door and gate operators

1200-017 Gate Control Toggle

  • 3-position control switch for automated vehicular gates, interior use only
  • Center position is neutral for normal operation
  • Down position is momentary contact to open a gate
  • Up position is toggled to hold a gate open
  • Can be used with most gate operators

1 Do not use with DKS 6060, 6100 or 6300 model operators.

Features All controls are designed to control a single gate operator only. (1211-081 is mullion mount)

Operating Temperature: -10°F to 145°F (-23°C to 62°C)

DOORKING,  INC.

Access Control Solutions since 1948

120 Glasgow Avenue, Inglewood, California 90301 U.S.A.
Tel: 310-645-0023   FAX: 310-641-1586
www.doorking.com

© 2026 All Rights Reserved. Product specifications may change without notice. Rev. 7/26
