9050 Vehicular

By /

9050 Vehicular

Slide Gate Operator

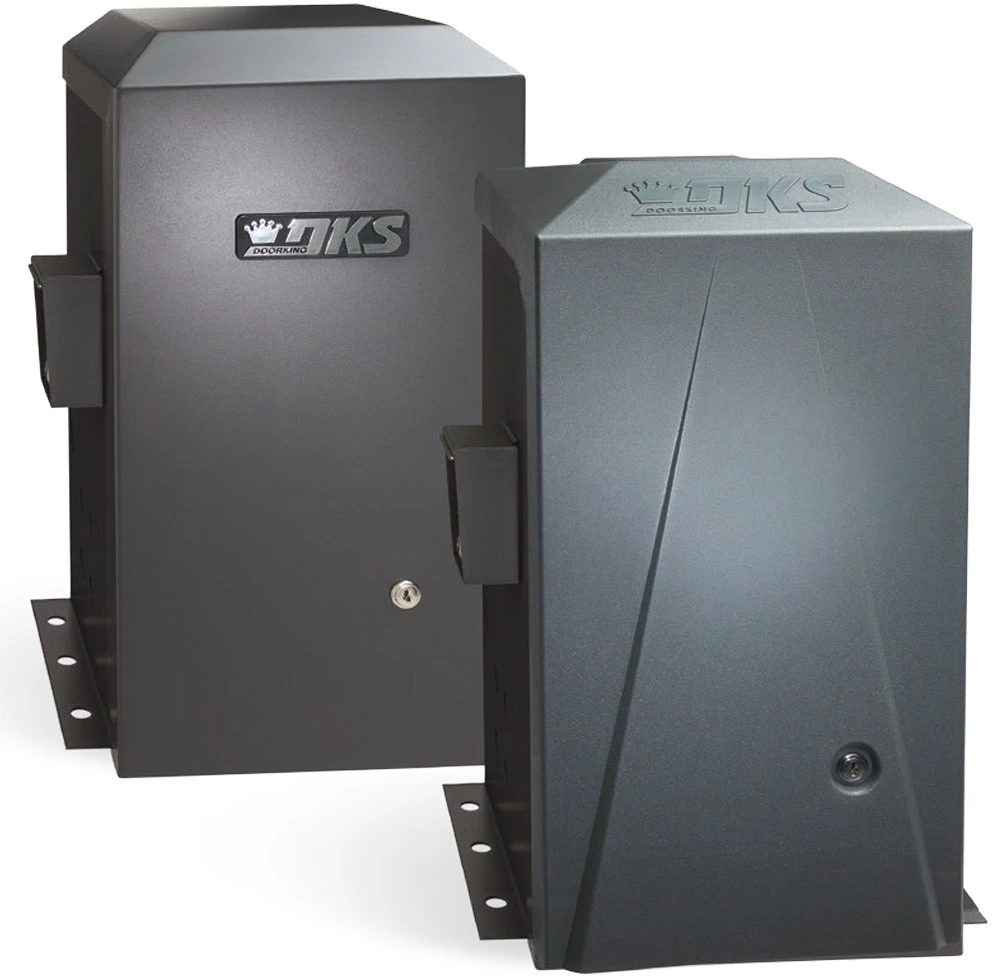

Two DKS 9050 slide gate operator units with protective enclosures shown side by side.
Quiet, reliable & outstanding safety features
  • Electronic magnetic limits eliminate old style mechanical switches that can wear out, break or fail
  • Automatic self-setting limits mean no limit switch adjustments – ever
  • Safety – built-in mechanical and electronic reverse system
  • Advanced microprocessor control board features programming switches to set the mode of operation required and has ports for DKS plug-in loop detectors to simplify wiring
  • 5-Year limited warranty
%%tb-image-alt-text%%
Entrapment Prevention

reverses gate when obstructed

%%tb-image-alt-text%%

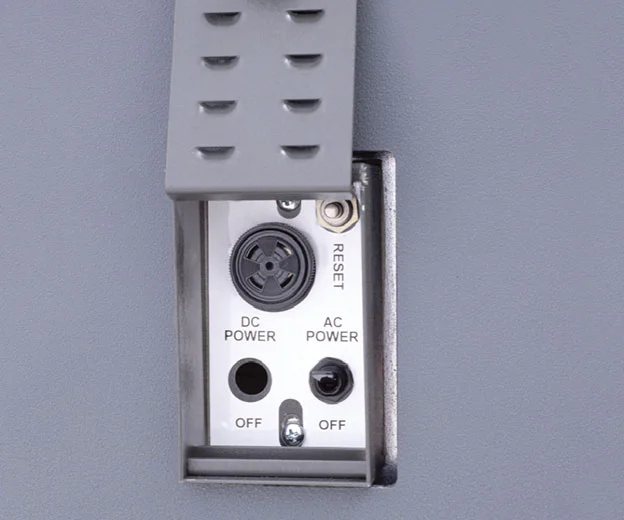

Built In

power switch and reset switch

%%tb-image-alt-text%%
Fail-safe Release

never be locked out (or in)

%%tb-image-alt-text%%

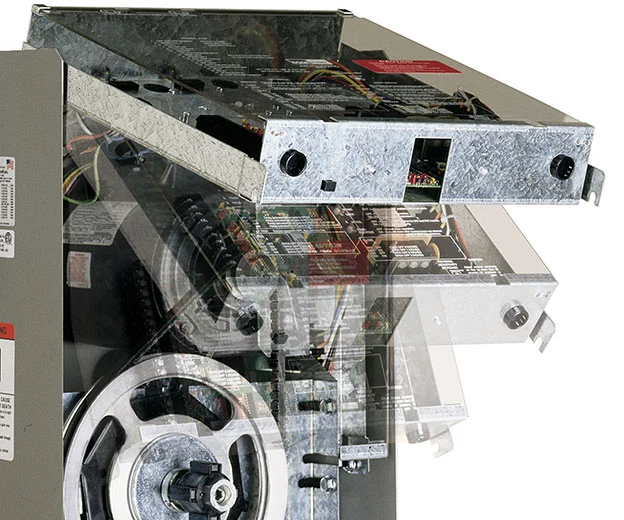

Unique Design

allows easy access to all mechanical parts

ACCESS CONTROL SOLUTIONS

TECHNICAL FEATURES

MECHANICAL

Frame: G90 galvanized steel to prevent rusting

Cover:  Steel or polypropylene cover

Primary Reduction:  Single cog belt

Speed:  Approximately 10 in/sec (254 mm/sec)

Chain:  Unit is shipped with 20 ft (6m) of #40 roller chain, chain brackets, hardware

Fail-safe release standard

Options

Heater kit for cold weather environments

Base plate for post mounting

Fail-secure release kit

Electrical

Automatic limit adjustment

Auto-close timer 1-23 sec

Selectable stop / reverse loop function

Built-in On / Off switch

Built-in alarm reset switch

Two 115 VAC convenience outlets for
accessory transformers

Automatically assumes fail-safe mode when an entrapment condition exists

Ports for plug-in open and reverse loop detectors  (DKS detectors only)

Miscellaneous

Environmental: 10°F to 140°F (-12°C to 62°C)

Thermostatically controlled heater kit recommended for colder environments.

Shipping weight approximately 70 lb (32kg)

Operator requires monitored Type B1 and/or Type B2 entrapment protection devices



ETL listed certification logo for DKS cellular and access products
Conforms To ANSI/CAN/UL 325:2017 Ed. 7
Certified To CSA C22.2 #247
