2170 Vehicular DC Slide Gate Operator

2170 VEHICULAR

DC SLIDE GATE OPERATOR

Smart, brushless DC slide gate automation with battery backup

115 / 230 VAC selectable input or 24 VDC
Brushless DC motor available in 500W (½ HP) or 750W (1 HP) configurations

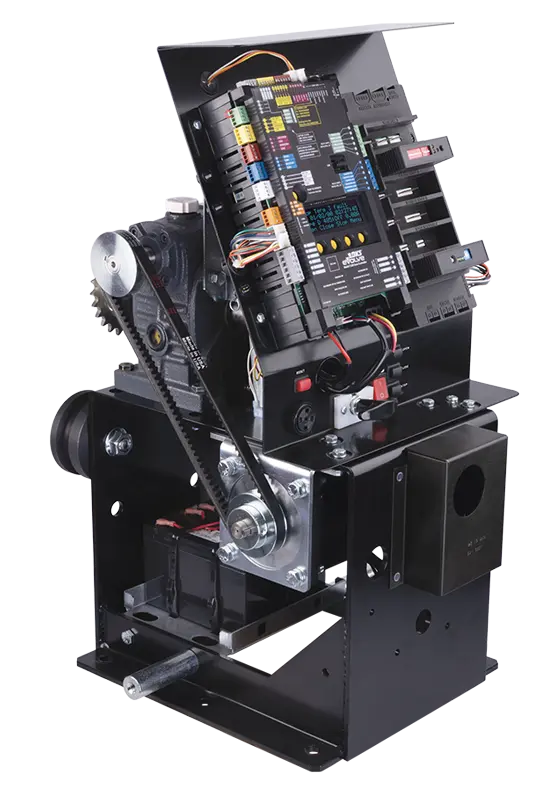

Removable cover allows fast, unobstructed access
Heavy-duty steel frame built for continuous-duty operation
Moves gates up to 40 ft or 3,500 lbs
Integrated battery backup with two (2) 7Ah batteries
5-year limited warranty
Five (5) programmable relays
Six (6) programmable UL inputs
Built-in Diagnostics

eVolve™ Smart Controller

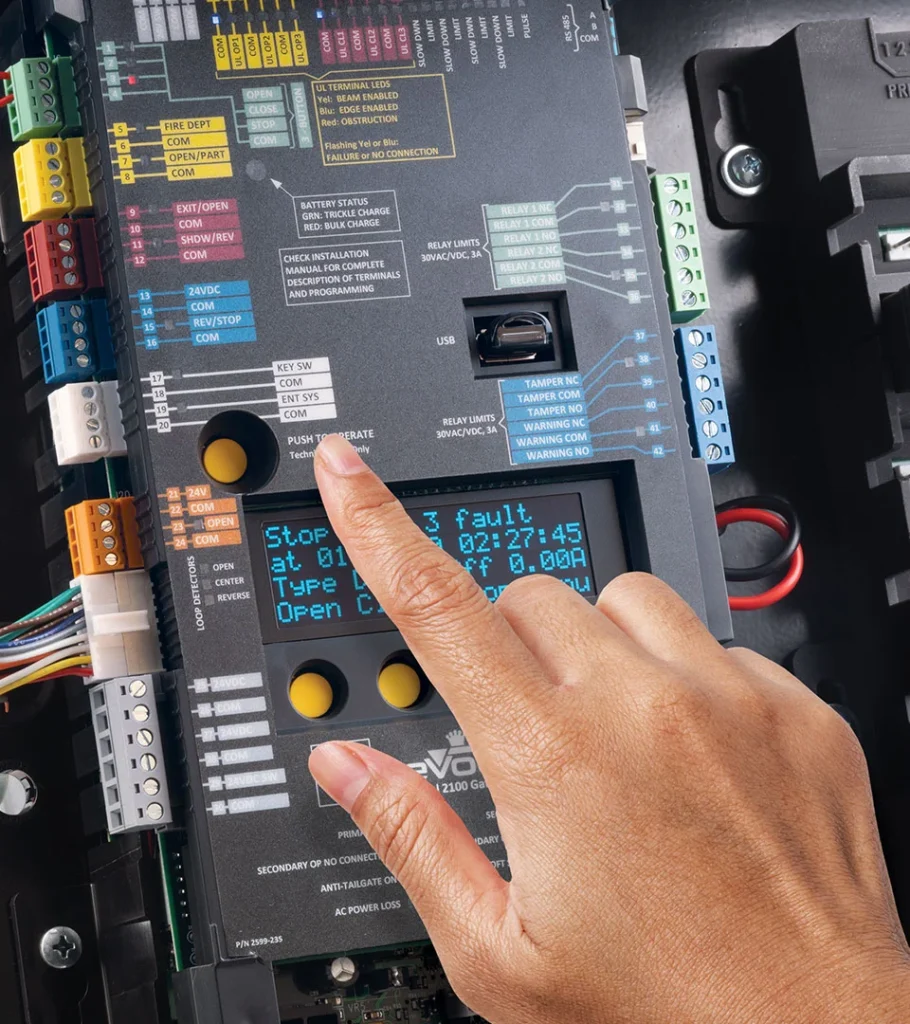

Built-in smart controls with Digital Onboard Operator Controls and Programming Access Controller . USB configuration backup, event logging, and diagnostics.

Easy Onboard Programming

Intuitive onboard LCD interface allows fast setup, adjustment, and diagnostics directly at the operator—no external devices required.

Powerful Brushless DC Motors

Up to 3,500 lb slide gate capacity for demanding residential and commercial applications.

Built from the Ground Up

Heavy-duty steel construction with a durable semi-gloss black powder coat engineered for continuous-duty residential and commercial applications.

Dimensions: 17.25″ W × 24.75″ H × 23.75″ D

Shipping Weight Approximately: 175-225 lb (79-102 kg)
depending on model and options selected

	2170-380 / 382	2170-381 / 383
CLASS OF OPERATION	I, II, III, IV	I, II, III, IV
MAX GATE LENGTH	40 ft (12.192 m)	40 ft (12.192m)
MAX GATE WEIGHT	2,300 lb (1043 kg)	3,500 lb (1587 kg)
MOTOR	Motor Brushless 36 VDC¹ 500W (½ HP)	Motor Brushless 36 VDC¹ 750W (1 HP)
INPUT	115 / 230 - 1Ø VAC 5 A / 3 A	115 / 230 - 1Ø VAC 7 A / 4 A
AC POWER CYCLES PER HOUR	Continuous	Continuous
BATTERY BACK-UP²(QTY. 2 REQUIRED)	60 cycles with 7.5 Ah batteries 150 cycles with 18 Ah batteries	40 cycles with 7.5 Ah batteries 100 cycles with 18 Ah batteries

Note 1: 36 VDC motor is operated at 24 VDC.
Note 2: Approximate cycles. The number of cycles using only battery back-up will vary depending on the weight of the gate, the length of the gate, the operating condition of the gate, temperature and the charge state of the batteries.

TECHNICAL FEATURES

Class of Operation: I, II, III, IV
Maximum Gate Weight:
– 2170-380 / 382: 2,300 lb– 2170-381 / 383: 3,500 lb
Maximum Gate Length:
– 2170-380 / 382: 40 ft– 2170-381 / 383: 40 ft
Pulling Medium: #40 Nickel Chain
Speed: 12 in/Sec (max)
Gearbox Reduction: 30:1
Power Loss Operation: Push Button, Constant Pressure
Manual Release: Internal/Manual
Motor (Brushless 36 VDC¹):
– 2170-380 / 382: 500W (½ HP)– 2170-381 / 383: 750W (1 HP)
Input Power VAC: 115 / 230 – 1Ø
Amps (115 / 230 VAC):
– 2170-380 / 382: 5A / 3A– 2170-381 / 383: 7A / 4A
Accessory Device Power: 24 VDC, 3A
Battery Backup: Two (2) 7 Ah batteries

Smart Controls (Evolve™)

Onboard LCD operator programming USB configuration backup and restore
Built-in diagnostics and event logging
Supports plug-in accessory hub modules
Compatible with DKS access control systems

Miscellaneous

Environmental:

-10°F to 158°F (-23°C to 70°C)
With optional heater kit: -40°F to 158°F (-40°C to 70°C)

Heater Kit:

Thermostatically controlled heater kit required for operation below freezing temperatures to prevent battery damage.
Heater kit is for AC-powered operators only.
