2137 VIDEO
Entry System
Smart, Connected Access Control - Designed for Modern Communities
- Provides resident and visitor access control for apartment buildings, gated communities, condominiums, offices, factories, and industrial sites.
- Large 6.50″ W × 4.875″ H full-color display with easy-to-use A–Z CALL buttons and built-in electronic directory.

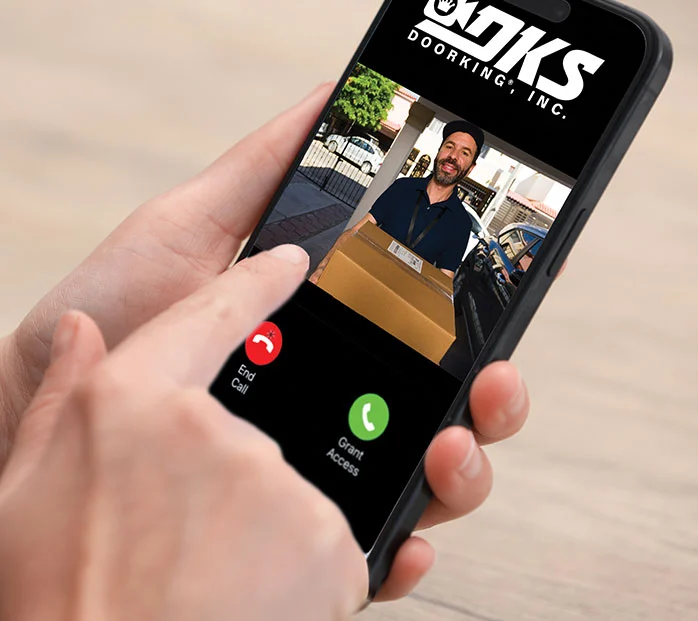

- Residents can see and speak with guests directly on their smartphone via live video streaming.
- Integrated camera with powerful day/night performance for clear, detailed images.
- Voice and data connection via Ethernet with PoE++ or optional cellular.
- Plug-N-Play installation using the 2100 Video Entry Controller.
- Supports 10,000 users and 40,000 (4- or 5-digit) entry codes.
- Expandable to 97 entry points using tracker expansion boards.

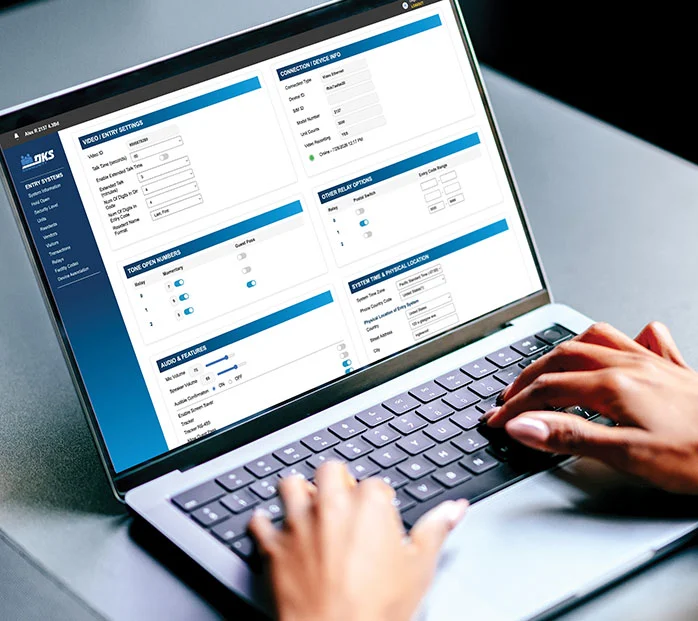

- Cloud-based programming and reporting via DKS Community Cloud or Remote Account Manager software.
- Soft-glow illuminated keypad and call buttons for improved visibility.
- 2-Year limited factory warranty.
eVolve™ Circuit Board
Plug-N-Play installation with
integrated smart control
technology.
PoE simplifies setup with single cable power and data. Optional Cellular connectivity available. Expandable up to 97 entry points with cloud-based programming and management
Optional Cellular Connectiong
Reliable wireless communication when Ethernet isn’t available. Provides secure connection to DKS Community Cloud for remote programming, reporting, and system management.
Optional Internal Card Reader
Built into the faceplate

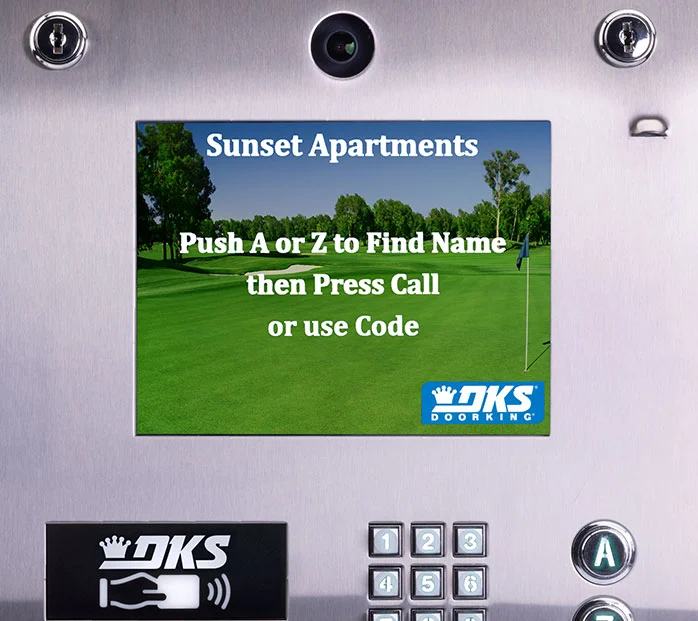

Color Display
Featuring a 4.25″ W × 2.625″ H full-color screen. Easily customize the welcome message and upload your own background image for a clean, professional first impression.
Dimensions: 17.2″ W × 25.4″ H × 25″ D
Shipping Weight Approximately: 175-225 lb (79-102 kg)
depending on model and options selected
| 2137 VIDEO ENTRY SYSTEM | |
|---|---|
| USERS | 10,000 |
| ENTRY CODES | 40,000 (4 OR 5 DIGIT) |
| DEVICE CODES | UP TO 4 PER USER |
| DOOR CONTROL | 3 INTERNAL RELAYS, EXPANDABLE TO 97 ENTRY POINTS |
| DIRECTORY LISTING | FIRST NAME FIRST OR LAST NAME FIRST |
| ELEVATOR CONTROL | YES |
| PROGRAMMING | IMPORT FROM DKS CLOUD (REQUIRES SUBSCRIPTION) |
| TRANSACTION BUFFER | 6 MONTHS OF EVENTS |
| CONNECTION | ETHERNET OR CELLULAR |
| DISPLAY | 6.50" W X 4.875" H COLOR DISPLAY |
| INTEGRATED VIDEO CAMERA | YES |
| FACILITY CODES | 20 |
| WIEGAND INPUTS | 2 |
| APPS | USER APP & MANAGER APP |
Note 1: Excludes video storage.
Note 2: DK Cloud account subscription is required. DK consumer factory support included.
Note 3: Ensure that the upload speed of your internet connection is at least 3 Mbps.
Note 4: Requires cellular connection kit - sold separately. Additional monthly cellular connection fee applies.
Technical Specifications
Specifications
- Power Supply (Included): 12 VDC
- Color Display: 6.50 W x 4.875 H
- POE++ (Type 3): 60 Watt
- Fuse Protection: 5 Amp
- Users: 10,000
- Entry Codes (4 or 5 digit): 40,000
- Device Codes: Up to 4 Per User
- Facility Codes: 20
- Integrated Video Camera: Yes
- Internal Relays: 3
- Expandable Entry Points (Max): 97
- Tamper Switch: Yes
- Postal Lock Provision: Yes
- Wiegand Inputs: 2
- Elevator Control: Yes
- Events Buffer (Time)1: 6 Mos
- Programming2: Import from DKS Cloud
- User App: Yes
- Manager App: Yes
- Connection3: Ethernet / Cellular4
- Operating Temperature: -20°F to 130°F (-29°C to 54°C)
- Surface Mount Dimensions (H x W x D): 14.75 x 12.75 x 3.625
- Surface Mount Hood Dimensions (H x W x D): 14.88 x 13.08 x 5.61
- Surface Mount Curved Dimensions (H x W x D): N / A
- Flush Mount Kit Dimensions (H x W x D): 15.56 x 15.34 x 3.75
- Warranty: 2-Year
FEATURES
- Directory Listing: First name first or last name first
- Customizable Home Screen: Yes
- Screen Saver: Yes
- Microphone Adjustment: Yes
- Speaker Adjustment: Yes
- Voice Feedback Option: Yes
- DND Option on Video Calls: Yes
- Visitor (Guest) Management (Scheduled or One Time): Yes
- Guest Keypad Code: Yes
- Holiday Schedules: 55
- Hold Open Schedules: 15
- Auto Cancel Hold Schedules: Yes
- Security Level Time-Zones (ea.): 10
- Do-Not-Call Schedules: 10
- Entry Code Schedules: 10
- Geo-Fencing Door Control: Yes
- Video Recording Playback: Yes
- Create Units (Apt) Option: Yes
- Resident Audio or Video Call: Yes
- User (Resident) Auto Expire: Yes
- Live Transactions: Yes
- Solar Power Input: Yes
- On-Board Power Switch: Yes
