2132 VIDEO
Entry System
Space-Saving Design. Powerful Control. Smarter Connectivity.
- Visitors communicate with residents via integrated camera, microphone, and speaker. Access can be granted via the DKS Manager App, touch-tone phone, or keypad.
- Slim, space-saving design ideal for limited mounting areas. Surface mount option available.
- Hands-free, full-duplex voice communication with adjustable audio settings.
- Supports 10,000 users, 40,000 (4- or 5-digit) entry codes, and up to 4 device codes per user.
- Live video streaming, recording/playback, and real-time transaction monitoring.
- Geo-Fencing for automatic door/gate control based on user location.
- Expandable to 97 total entry points via compatible RS-485 devices.
- Ethernet connection with PoE++ for simplified Plug-N-Play installation (no separate power supply required).
- Managed through the DKS Community Cloud with programming and reporting via the DKS Community App (iOS & Android).
- Powerful day/night camera with enhanced image clarity.
- Soft-glow illuminated keys and call button for optimal nighttime visibility.
- 2-Year limited factory warranty.
eVolve™ Circuit Board
Optional Cellular Connectiong

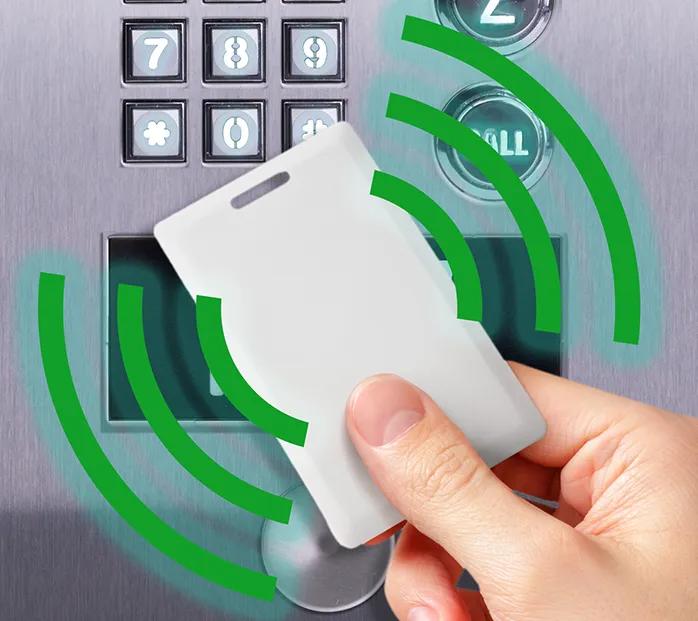

Optional Internal Card Reader

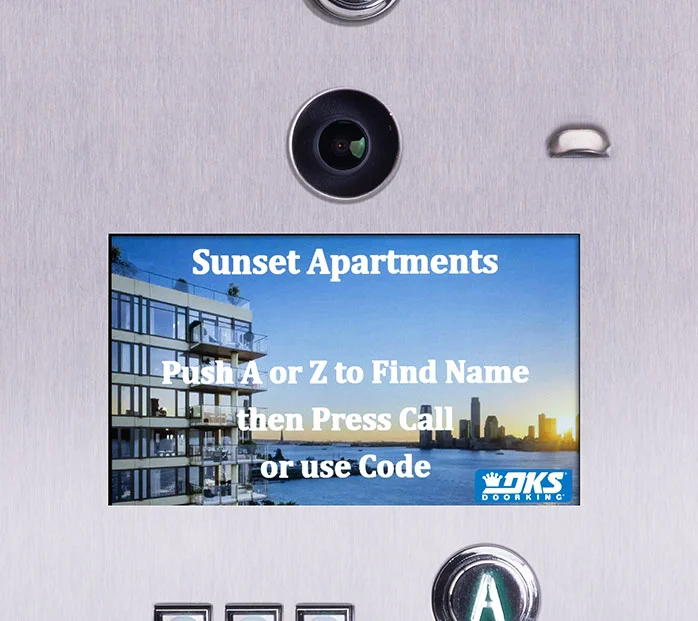

Color Display
Featuring a 4.25″ W × 2.625″ H full-color screen. Easily customize the welcome message and upload your own background image for a clean, professional first impression.
Dimensions: 17.2″ W × 25.4″ H × 25″ D
Shipping Weight Approximately: 175-225 lb (79-102 kg)
depending on model and options selected
| 2132 VIDEO ENTRY SYSTEM | |
|---|---|
| USERS | 10,000 |
| ENTRY CODES | 40,000 (4 OR 5 DIGIT) |
| DEVICE CODES | UP TO 4 PER USER |
| DOOR CONTROL | 3 INTERNAL RELAYS, EXPANDABLE TO 97 ENTRY POINTS |
| DIRECTORY LISTING | FIRST NAME FIRST OR LAST NAME FIRST |
| ELEVATOR CONTROL | YES |
| PROGRAMMING | IMPORT FROM DKS CLOUD (REQUIRES SUBSCRIPTION) |
| TRANSACTION BUFFER | 6 MONTHS OF EVENTS |
| CONNECTION | ETHERNET OR CELLULAR |
| DISPLAY | 4.25 W X 2.625 H COLOR DISPLAY |
| INTEGRATED VIDEO CAMERA | YES |
| FACILITY CODES | 20 |
| WIEGAND INPUTS | 2 |
| APPS | USER APP & MANAGER APP |
Technical Specifications
Specifications
Power Supply (Included): 12 VDC
Color Display: 4.25 W x 2.625 H
POE++ (Type 3): 60 Watt
Fuse Protection: 5 Amp
Users: 10,000
Entry Codes (4 or 5 digit): 40,000
Device Codes: Up to 4 Per User
Facility Codes: 20
Integrated Video Camera: Yes
Internal Relays: 3
Expandable Entry Points (Max): 97
Tamper Switch: Yes
Postal Lock Provision: Yes
Wiegand Inputs: 2
Elevator Control: Yes
Events Buffer (Time)¹: 6 Mos
Programming²: Import from DKS Cloud
User App: Yes
Manager App: Yes
Connection³: Ethernet / Cellular⁴
Operating Temperature: -20°F to 130°F (-29°C to 54°C)
Surface Mount (H x W x D): 17.22 x 6.71 x 3.25
Surface Mount Hood (H x W x D): 17.38 x 7.04 x 3.92
Flush Mount Kit (H x W x D): 18.82 x 8.36 x 3.70
Warranty: 2-Year
FEATURES
Directory Listing: First name first or Last name first
Customizable Home Screen: Yes
Screen Saver: Yes
Microphone Adjustment: Yes
Speaker Adjustment: Yes
Voice Feedback Option: Yes
DND Option on Video Calls: Yes
Visitor (Guest) Management – Scheduled or One Time: Yes
Guest Keypad Code: Yes
Holiday Schedules: 55
Hold Open Schedules: 15
Auto Cancel Hold Schedules: Yes
Security Level Time-Zones (ea.): 10
Do-Not-Call Schedules: 10
Entry Code Schedules: 10
Geo-Fencing Door Control: Yes
Video Recording Playback: Yes
Create Units (Apt) Option: Yes
Resident Audio or Video Call: Yes
User (Resident) Auto Expire: Yes
Live Transactions: Yes
Solar Power Input: Yes
On-Board Power Switch: Yes
