Coming Soon 2026!

Smart Programming, at Your Fingertips

DKS eVolve Series logo used for branding the next generation of smart gate and access control products.

Keep configuration in your hands with the intuitive onboard LCD interface and automatic USB backup, only with eVolve.

Polycarbonate case for the DKS 2160 gate operator, showing the protective outdoor housing used for residential and commercial slide gate automation.

2160 Swing Gate Operator

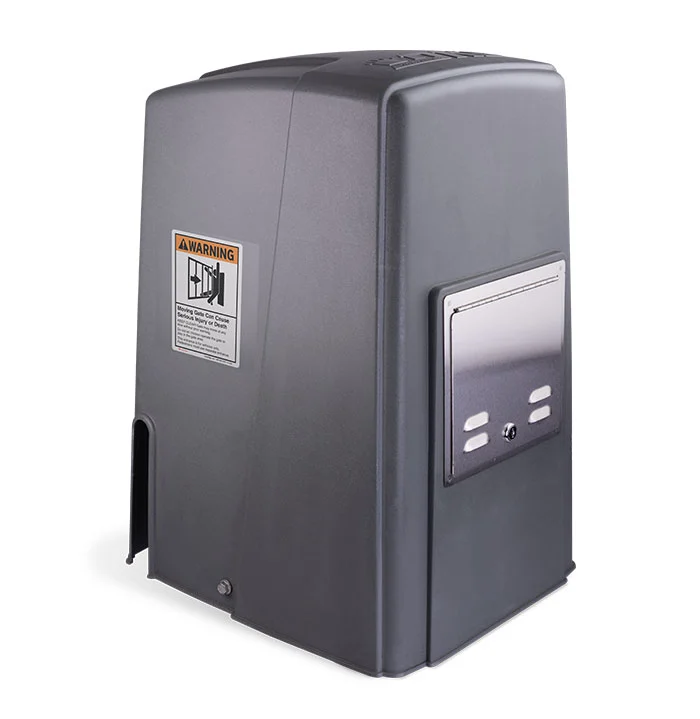

Polycarbonate cover for the DKS 2170 slide gate operator, showing the durable protective housing used for residential and commercial gate systems.

2170 Slide Gate Operator

The first two models in DKS’s new line of eVolve Gate Operators are built from the ground up with the all-in-one eVolve Controller Board, featuring simple onboard programming through a bright LED display. Once setup is complete, all settings save automatically to the onboard USB — making it easy to restore after maintenance. The Accessory Hub lets installers plug in optional cards for Loop Detectors (3), Edge, and a Radio Receiver programmable for MicroClik or MicroPlus RF remotes.

Close-up of the DKS onboard USB module used for programming, firmware updates, and data transfer on DoorKing gate operator systems.

Save All settings automatically to the onboard USB

2100 Controller Board

  • Digital Onboard Operator Controls and Programming
  • Access Controller via RS485
  • 3-Button Control Station

Easy Onboard Programming:

  • Set Open Direction
  • Motor Speed (Swing gates only)
  • Set Primary/Secondary
  • Reverse Sensors
  • Check Limits
  • General Info
  • Set Plug-in Loops
  • Gate Leaf Delay
  • Logs and Operation Info
  • Set Date & Time
  • Auto Close Timer
  • UL Device Set up
  • Restore Defaults
  • Quick Close
  • Power Fail Options
  • 3 Button Options
  • Tamper Output
  • Warn Before Open
  • Relay Options
  • Set External Detectors

2100 Accessory Hub Plug-Ins

  • Loop Detectors
  • Reversing Edge
  • Radio Receiver

Built from the Ground Up

DKS’ eVolve Gate Operators are built on a new, stronger chassis made from 1/4″ heavy-duty steel and finished with a durable semi-gloss black powder coat.

2160 Swing Gate Operator

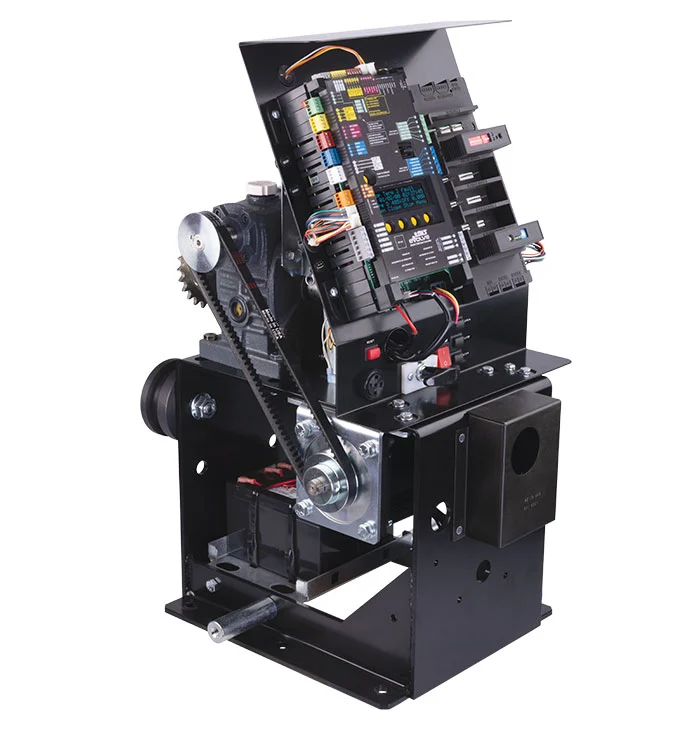

Internal chassis of the DKS 2170 gate operator showing the powder-coated galvanized steel frame, belt drive assembly, and mounted controller board.

2170 Slide Gate Operator

Powerful Brushless DC Motors

Up to

  • 3,500 lb Slide
  • 1,800 lb Swing

Built-in Backup Batteries

Two (2) 120 VAC Convenience Outlets

Selectable Power Input

115 Volt or 230 Volt

Onboard Log Files
