Gate Operators Controller Board

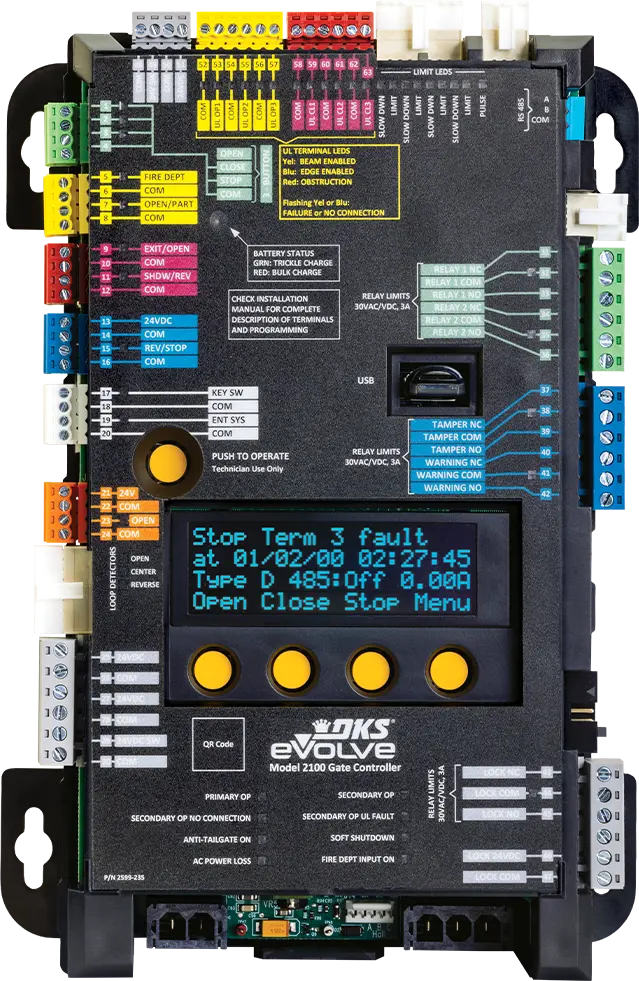

Intuitive onboard LCD interface allows fast setup, adjustment, and diagnostics directly at the operator—no external devices required.
24 VDC Switched –
24 VDC
Three Programmable Monitored Inputs for the Open Direction
Three Programmable Monitored Inputs for the Close Direction
Programmable 3-Button Control
Fire Dept Input Open Input
External Vehicle Detection Inputs
24 VDC Rev/Stop Input
Open Inputs
Technician Operate Button
External Vehicle Detection Inputs
Plug-in Loop Detector Activation Indicators
24 VDC – 24 VDC -24 VDC Switched
RS-485 to DK entry system
Battery Charging Inicator
Programmable Relays – 6 Option
USB Port For Programming Updates And Logs
Programmable Tamper Relay – 5 Options
Programmable Warning Relay – 3 Options
LCD Programming Display
Programming Buttons
Programmable Relay With 6 Options
24 VDC Lock Power
Controller Board Top
24 VDC Switched – 24 VDC
Three Programmable Monitored Inputs for the Open Direction
Three Programmable Monitored Inputs for the Close Direction

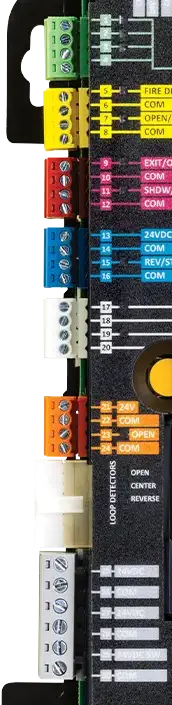

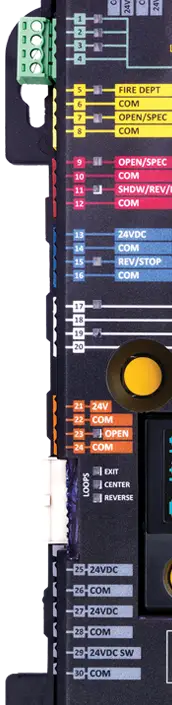

Controller Board Left
Programmable 3-Button Control
Fire Dept Input Open Input
External Vehicle Detection Inputs
24 VDC Rev/Stop Input
Open Inputs
Technician Operate Button
External Vehicle Detection Inputs
Plug-in Loop Detector Activation Indicators
24 VDC – 24 VDC – 24 VDC Switched

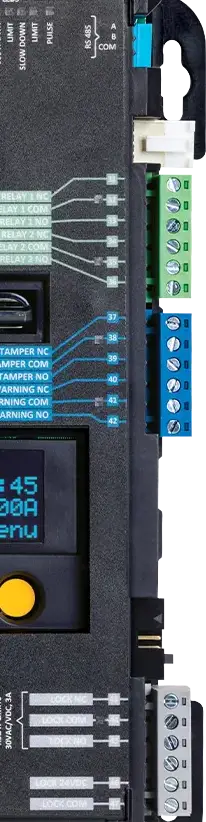

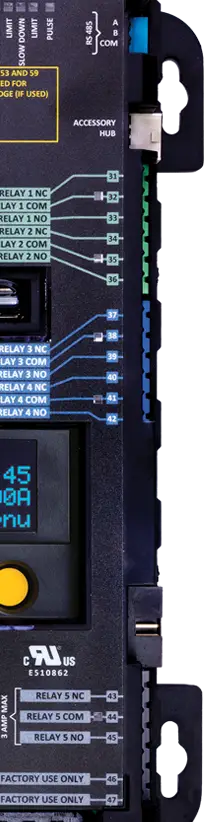

Controller Board Right
RS-485 to DK Entry System
Battery Charging Indicator
Programmable Relays – 6 Option
USB Port For Programming Updates And Logs
Programmable Tamper Relay – 5 Options
Programmable Warning Relay – 3 Options
LCD Programming Display
Programming Buttons
Programmable Relay With 6 Options
24 VDC Lock Power
The 2100 Gate Controller is used with all DoorKing 2100 Series Gate Operators
- Auto-Close Timer
- Adjustable Motor Speed
- Quick Close Feature (Slide Gates)
- Fire Department Input
- Programmable Plug-in Loop Detectors (3)
- Programmable External Vehicle Detection Inputs
- Plug-in Radio Receiver
- Five (5) Programmable Relays
- Programmable Monitored UL Inputs
- Programmable Power Loss Settings
- 24 VDC Lock Power
- 24 VDC 3 Amp Aux Power
- Disable Switch for Manual Operation
- Built-in Clock/Calendar
- Primary / Secondary Functions
- Gate Leaf Delay (Swing Gates)
- Programmable Log Reporting
Easy Programming, Built-in Intelligence
DKS’s new line of eVolve Gate Operators are built from the ground up with the all-in-one eVolve Controller Board, featuring simple onboard programming through a bright LED display.
Plug-and-Play Simplicity
Once setup is complete, all settings save automatically to the onboard USB — making it easy to restore after maintenance.
Save All settings automatically to the onboard USB Includes downloadable offline updates
2100 Accessory Hub Plug-Ins
The Accessory Hub lets installers plug in optional cards for Loop Detectors (3), Edge, and a Radio Receiver programmable for MicroClik or MicroPlus RF remotes.
