2160 Swing Gate Operators

The 2160 Series Operators are designed to operate vehicular swing gates in residential, commercial, and industrial applications for both single and bi-parting gates. These operators swing gates 90° in approximately 10–12 seconds and are rated for Class I, II, III, and IV operation.

Each unit uses a durable harmonic arm and a precision-engineered 60:1 gearbox reduction for smooth, quiet movement. The unique design allows easy access to electronic and mechanical components without removing the gate arm. Electronic magnetic limits are easily adjusted and will never wear out or break. A solid steel frame and belt-driven gear system make the 2160 one of the quietest and most reliable swing gate operators on the market today.

Overview
Features
Tech Specs
Resources
Accessories

2160 Swing Gate Operators

Easy Access Design, Low Maintenance & Quiet Operation

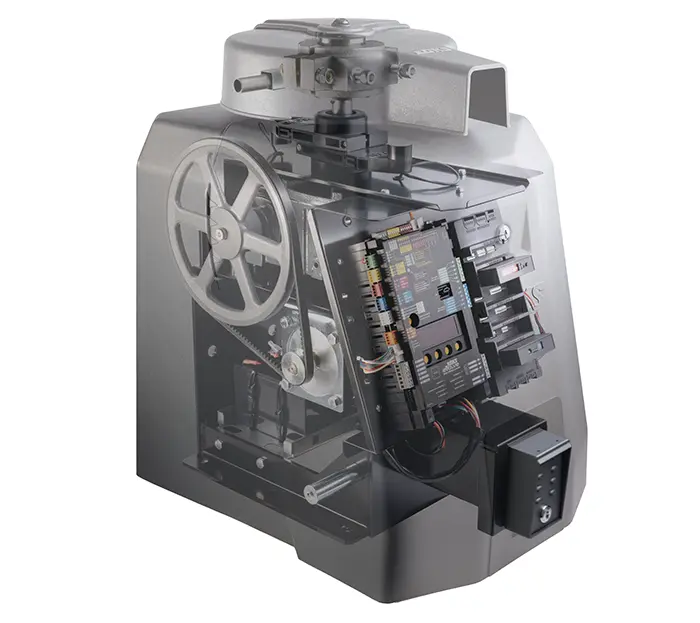

The 2160 Series Operators are engineered to operate vehicular swing gates in residential, commercial, and industrial applications for both single and bi-parting gates. The unique design allows easy access to electronic and mechanical components without removing the gate arm, simplifying installation and maintenance. Electronic magnetic limits are easily adjusted and will never wear out or break. A solid steel frame, harmonic arm, and belt-driven gearbox deliver quiet, reliable operation, making the 2160 one of the most durable swing gate operators available today.

The 2160 Series Swing Gate Operators combine power, precision, and quiet performance for residential, commercial, and industrial applications. Available in two models — 2160-380 and 2160-381 — these operators deliver smooth and efficient motion for single or bi-parting vehicular gates up to 22 feet and 1,000 lbs. Designed for Class I–IV operation, the 2160 Series provides dependable, low-maintenance performance ideal for a wide range of access control environments.



Compatible with
Swing Gates
Designed to Mount
on Concrete Pad
2-Piece Split Housing
for Easy Internal Access



Applications

small family application
Small Multi-Family Residential
apartment icon
Apartment Complexes & College Residence Halls
Gated Communities & Apartment Complexes Solutions
Gated Communities
mix used icon
Mixed Use Buildings
commercial industry icon
Commercial & Industrial
Icon of a row of storage unit doors, representing self-storage facilities.
Self Storage
Icon of a parking structure with multiple levels, representing parking facilities.
Parking Facilities

Product Features

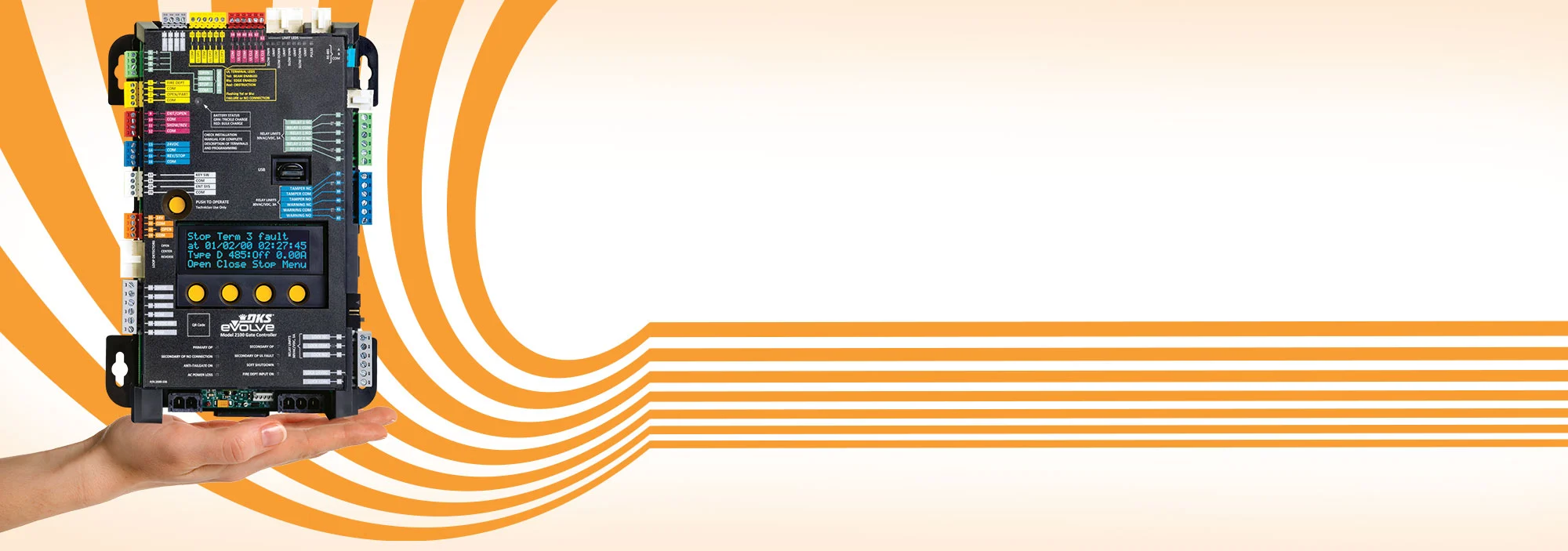

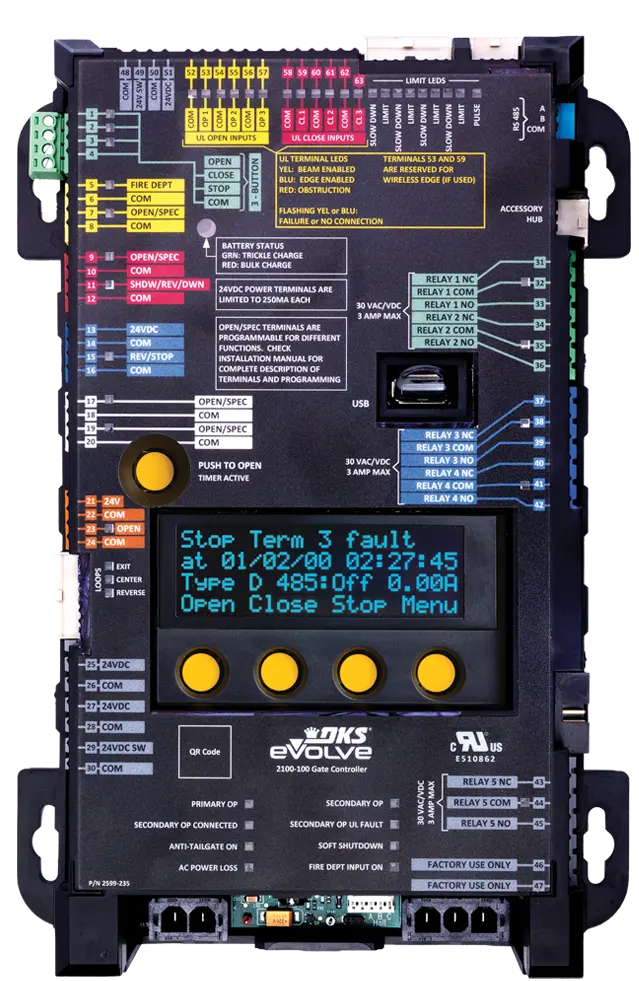

  • One Controller Many GatesNew Gate Board that has plugins for Network, Loops (3), Edge, and Radio Reciever that can be programmed for either MicroClik or MicroPlus RF Remotes making connections a breeze.

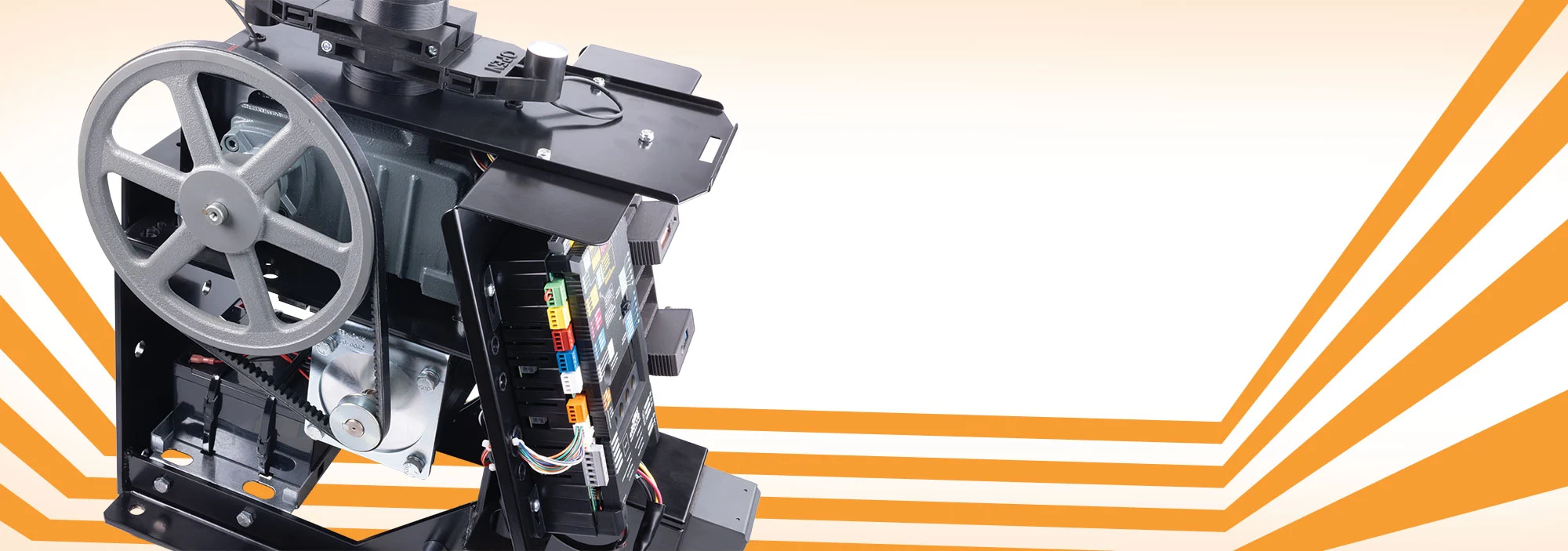

  • One of the Quietest The solid steel frame and belt-driven gearbox make this Operator one of the quietest on the market today.

Looking for an authorized DoorKing dealer near you?

Find A Dealer

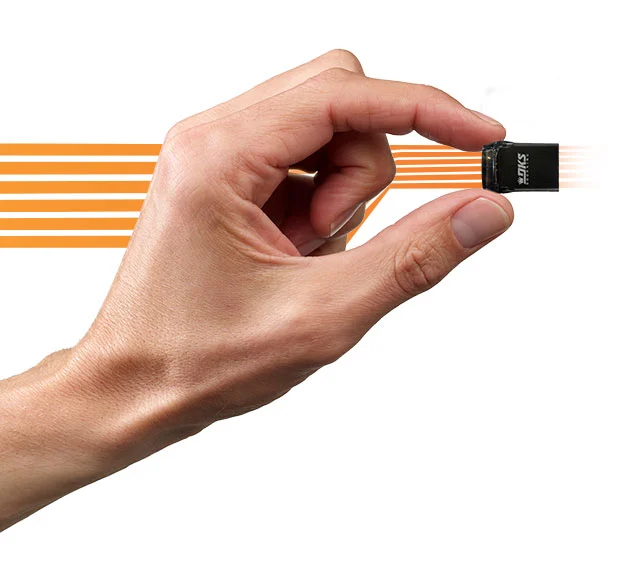

Get Programming at your Finger Tips

Once programming is complete all settings are saved to the onboard USB Drive that can be used to establish all
settings after maintenance or replacement

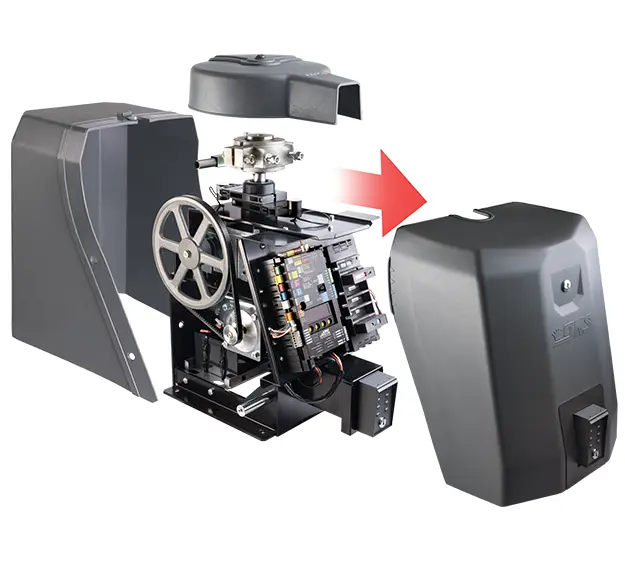

Split Case

Two-piece split polyurethane housing allows easy installation and maintenance.





    %%tb-image-alt-text%%

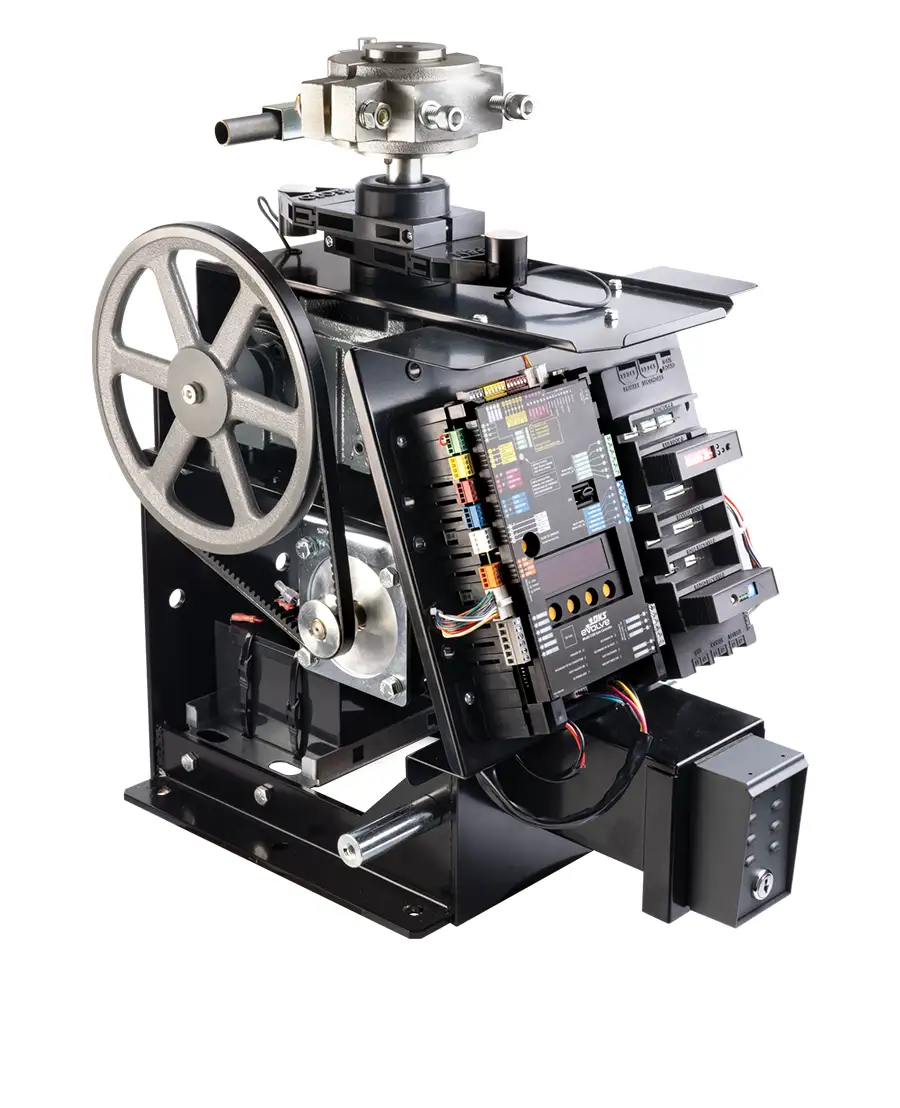

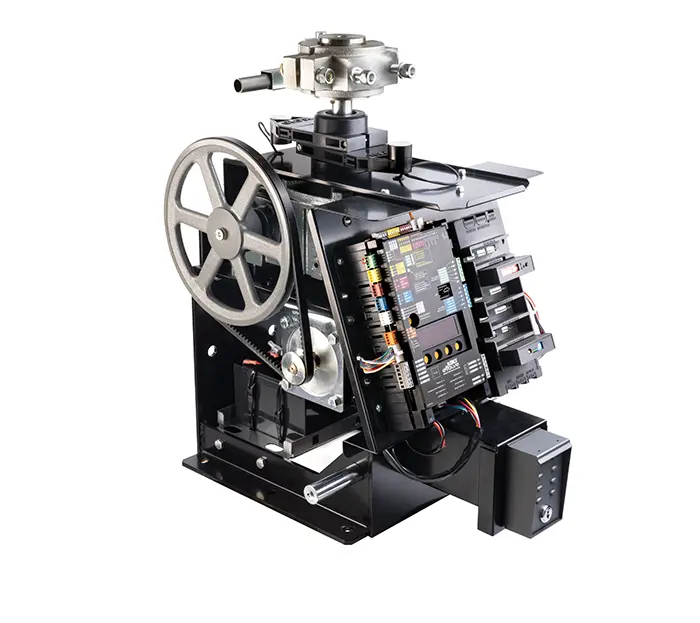

    Steel Frame

    Provides strength and durability even in harsh weather environments.

    %%tb-image-alt-text%%

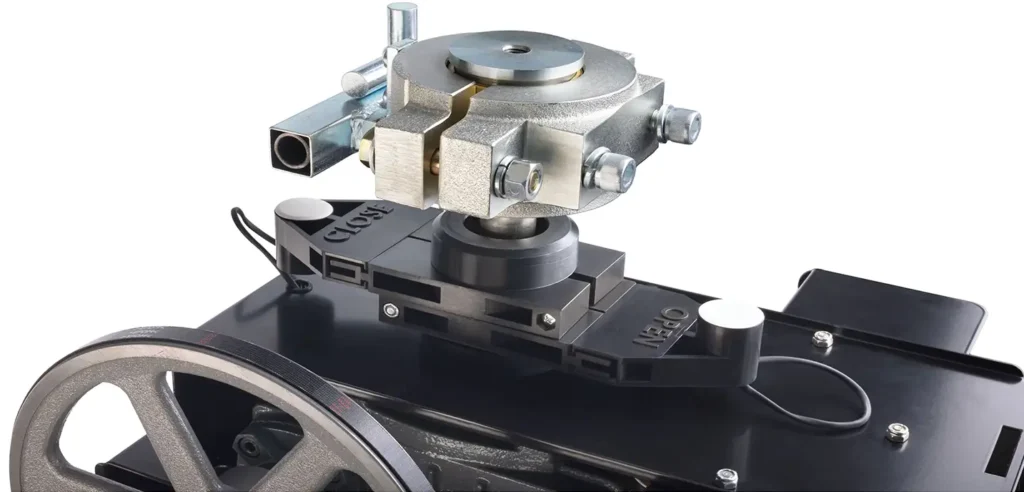

    Easy-to-Adjust Electronic Magnetic Limits

    Eliminates old-style mechanical switches that can wear out, break, or fail.

    %%tb-image-alt-text%%
    Loop Detectors

    Easy plug-in ports for DKS Loop Detectors.

    %%tb-image-alt-text%%
    Breakaway Hub

    Unique breakaway hub design prevents gear box damage if the gate is struck.

    Technical Specifications

    8-16-18 Maximum Gate Lengths DKS

    18′ / 22′ Maximum Gate Lengths

    1600 800-600lb Maximum Gate Weights DKS

    700 lb. / 800 lb. Maximum Gate Weights

    Opens 90degree Approx 18-20 Seconds DKS

    Opens 90º in Approximately 12-14 Seconds

    Backup power inverter icon for DKS gate operator systems.

    Optional Backup Power Inverters

    Horsepower icon representing motor power for DKS gate operators.

    1/2 & 1 HP Continuous Duty Motor

    Specifications
    • Type: Swing Gate
    • Class of Operation: I, II, III, IV
    • Max Gate Weight (Lb): 2160-380: 700  |  2160-381: 1000
    • Max Gate Length (Ft): 2160-380: 18  |  2160-381: 22
    • Pulling Medium: Harmonic Arm
    • Adjustable Speed: 90° 10–12 Sec.
    • Gearbox Reduction: 60:1
    • Power Loss Operation: Push Button Constant Pressure
    • Manual Release: Keyed Release
    • Power Switches: AC / DC
    • Motor Brushless 36 VDC: 2160-380: 500W (1/2 HP)  |  2160-381: 750W (1 HP)
    • Input Power VAC: 120 / 240 – 1Ø
    • Amps (120 / 240 VAC): 2160-380: 5A / 3A  |  2160-381: 7A / 4A
    • Accessory Device Power: 24 VDC 3A
    • Temperature Range: -10°F to 158°F
    • With Heater Kit: -40°F to 158°F
    • Duty Cycle: Continuous
    • Battery Back-up: 7Ah Battery (2)
    • Dimensions (H x W x D) Inches: 25.4 x 17.2 x 25
    • Warranty: 5-Year

    Note 1: 36 VDC motor is operated at 24 VDC.
    Note 2: Excludes batteries.

    Gate TrackerTM

    Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control system (requires 2358 expansion board)



    Mechanical
    • Adjustable, no maintenance magnetic limits.
    • Overlap feature for bi-parting swing gate operation.
    • Simple connection for secondary operator in bi-parting applications.
    • Selectable shadow/reverse loop function.
    • Magnetic lock power provided.
    • Gate tracker reporting output.
    • Programming switches.
    • Built-in reset switch.
    • Built-in power On/Off switch.
    • Adjustable electronic magnetic limits
    • Auto-close timer (1-23 seconds)
    • Gate overlap feature for bi-parting (dual) gate operation
    • Built-in On / Off switch
    • Built-in alarm reset switch
    • Ports for plug-in open and reverse loop detectors (DKS plug-in detectors only)
    • Three 115 VAC convenience outlets for accessory transformers
    Miscellaneous
    • Environmental: 10°F to 115°F (-12°C to 62°C)
    • Thermostatically controlled heater kit recommended for colder environments
    • Operator requires monitored Type B1 and/or Type B2 entrapment protection devices







    Dimensions and Weight





    Dimensions:
    18.38″W x 31.63″H x 23.25″D

    Shipping weight approximately:

    175-225 lb (79-102 kg)
    depending on model and options selected
