2132 Video Entry Systems

The DKS 2132 Series is an ideal Video Entry System suited for applications that have limited space and can be used in residential as well as commercial settings. Visitors are easily identified by audio and video communication and can be granted or denied access directly from a smartphone or device.

The 2132 is best suited for applications that require a built-in directory and integrated video capabilities, eliminating the need for external hardware or separate add-on systems. With support for cloud-based programming and flexible connectivity options, the 2132 simplifies access management for both small and large properties.

Overview
Features
Tech Specs
Resources
Accessories

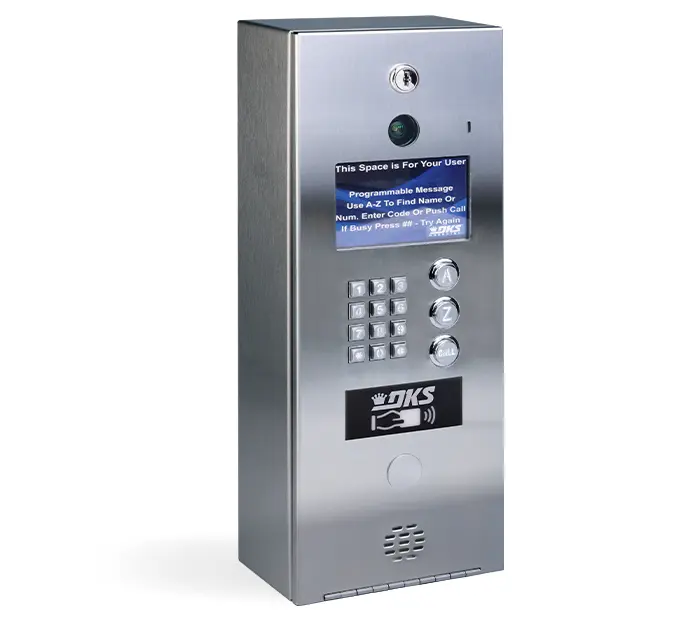

2132 Video Entry Systems

User-Friendly Integrated Design Features

DoorKing’s 2132 Video Entry System is a compact yet powerful unit loaded with features, making it ideal for installations with limited space in both residential and commercial applications. The integrated color display, built-in directory, and video camera allow residents to visually and verbally identify visitors and grant or deny access directly from their smartphone or device. The 2132 can manage over 40,000 users and entry codes, supports flexible scheduling, and offers cloud-based management for streamlined programming.

The 2132 supports Ethernet and Cellular connectivity for simple plug-and-play setup. No phone lines or extensive wiring is required — eliminating the need for trenching or conduit installation. For added flexibility, the system also supports solar power input and operates reliably in a wide temperature range.



Communicate with Guests via Audio & Video
Cloud-Based Programming with Manager & Resident Apps
Compact Design for Installation in Tight Spaces



Applications

apartment icon
Apartment Complexes & College Residence Halls
Gated Communities & Apartment Complexes Solutions
Gated Communities
mix used icon
Mixed Use Buildings
commercial industry icon
Commercial & Industrial
Icon of a row of storage unit doors, representing self-storage facilities.
Self Storage
Icon of a parking structure with multiple levels, representing parking facilities.
Parking Facilities
maximum security icon
Maximum Security

Product Features

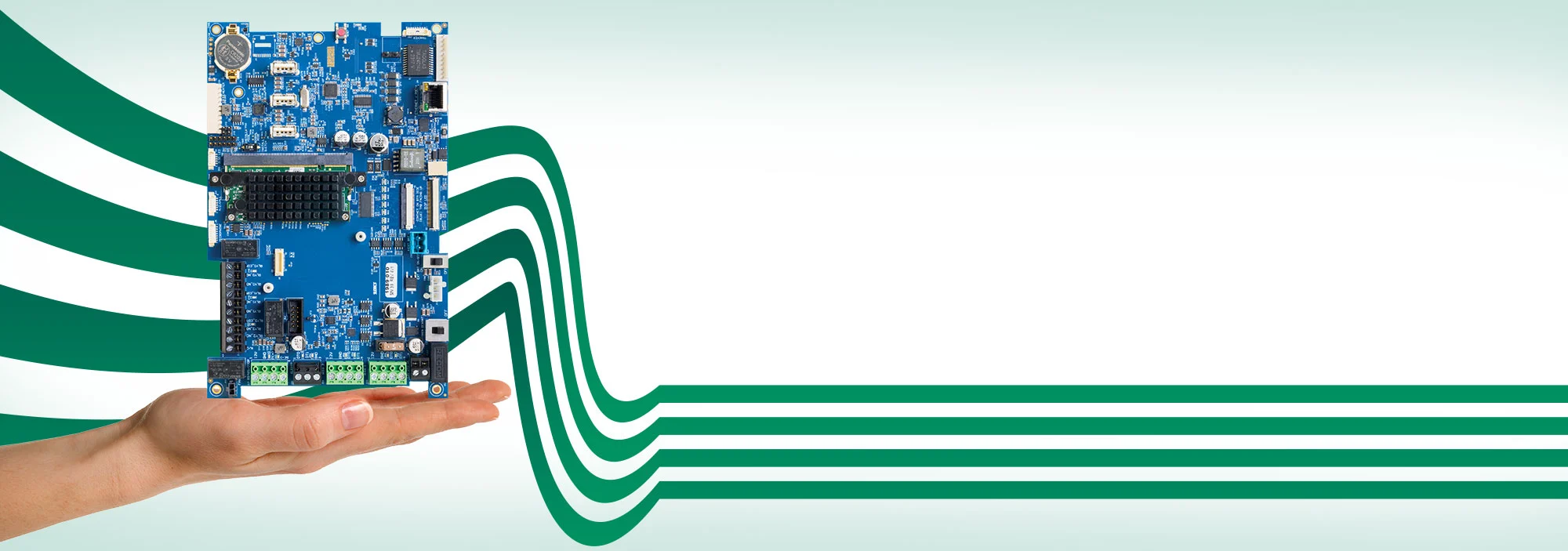

  • Universal Control Board All 2130 Series Video Entry Systems are built around a Universal Control Board, making installation, service, and upgrades easier than ever. The interchangeable design allows seamless compatibility across every 2130 model — reducing setup time, simplifying maintenance, and ensuring consistent performance throughout your system.
  • Visitor Access

    Manage guests with ease using the DKS App’s built-in visitor tools. Schedule one-time or recurring guest passes, issue temporary keypad codes, or allow access remotely with a single tap. Every visit is time-stamped and secure, giving residents and managers full visibility and control over who enters — whether it’s a delivery, service call, or visiting friend.

Looking for an authorized DoorKing dealer near you?

Find A Dealer

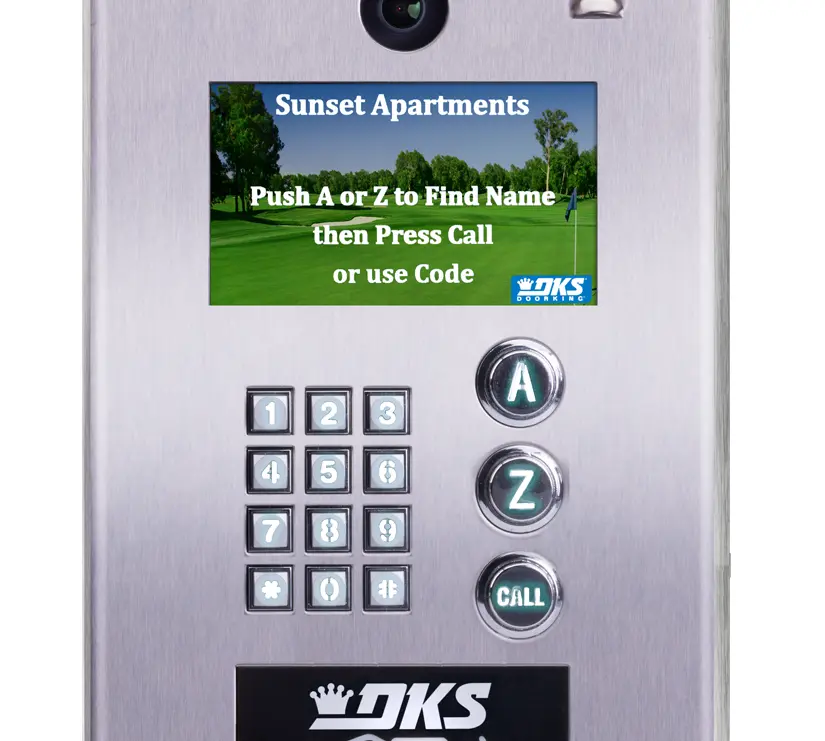

Built-In Display, A–Z Scroll & Call Button

The bright, full-color display with A–Z scroll buttons makes it easy for visitors to quickly find and call a resident by name. Once selected, a simple press of the CALL button initiates a video or voice connection, providing clear communication and secure access. The intuitive, built-in interface eliminates confusion and enhances the entry experience — whether for guests, deliveries, or service personnel.

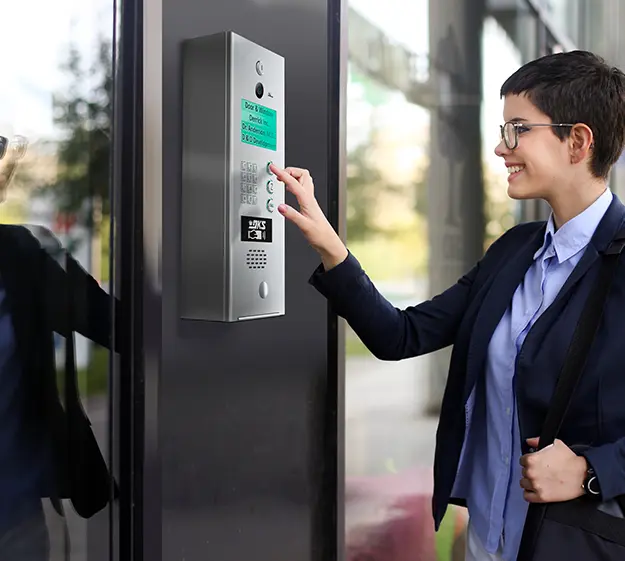

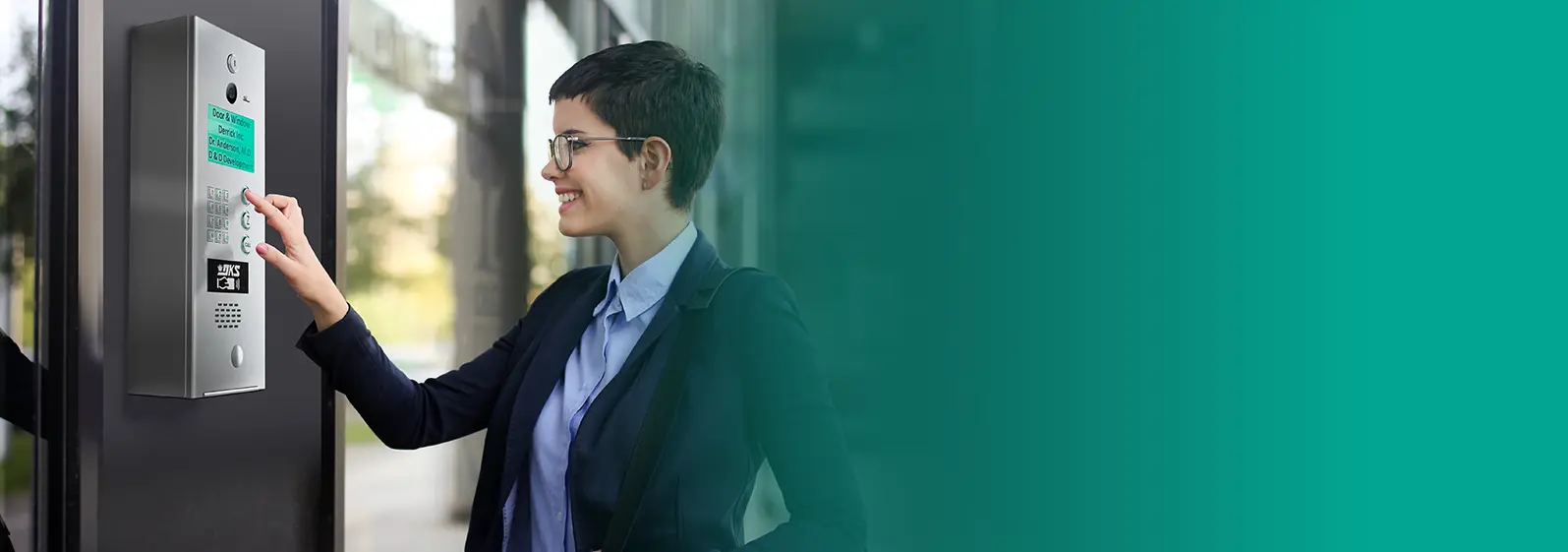

Professional, Secure Entry for Every Visitor

The DKS Video Entry System delivers a polished, professional experience at every doorway. With a sleek stainless design, high-contrast display, and one-touch call function, visitors can easily connect with tenants or office staff for quick, secure access. Ideal for multi-tenant buildings, offices, and gated properties, it combines modern aesthetics with reliable performance for a seamless first impression.



DKS Doorking Resident App manages visitor access video



Smart Access, Simplified — Total Control in the Palm of Your Hand

The DKS Cloud-Connected App gives managers and residents instant, secure control from anywhere. Manage up to 40,000 users, set entry schedules, and monitor live transactions — all synced through your DKS Cloud account.

For residents, features like geo-fencing door control, video calling, and guest code management make everyday access effortless. Whether it’s reviewing video playback or opening gates automatically as you arrive, the DKS App delivers convenience, security, and control — all backed by DKS reliability and support.

    %%tb-image-alt-text%%
    Cellular Board

    Optional Cellular Board attaches directly to the main circuit board with a bottom mount external antenna.

    %%tb-image-alt-text%%

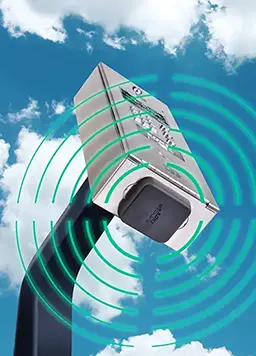

    External Antenna

    sends an omni-directional signal and the bottom mount keeps the weather out.

    %%tb-image-alt-text%%

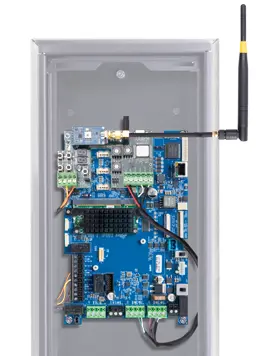

    Wireless

    Plug & Play Optional Expansion Board for Wirelessly connection to remote access points

    Choose

    %%tb-image-alt-text%%

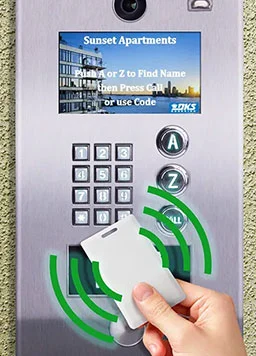

    Card Reader

    Optional Built in Card Reader

    Technical Specifications

    Relays Connected via Hardwire DKS

    3 Internal Relays

    Green icon with number 97 and a door symbolizing control of up to 97 access points

    Control up to 97 Access Points

    Green icon with three user figures symbolizing multi-user access support

    Supports Up to 40,000 Users and 40,000 Entry Codes

    Entry keypad icon showing no entry codes available.

    Device Codes Up to 4 Per User

    RS45 compatibility icon for DKS controllers and systems.

    Built-in Ethernet

    Specifications
    • Power Supply (Included): 12 VDC
    • Color Display: 4.25″ W x 2.625″ H
    • POE++ (Type 3): 60 Watt
    • Fuse Protection: 5 Amp
    • Users: 40,000+
    • Entry Codes (4 or 5 digit): 40,000+
    • Device Codes: Up to 4 Per User
    • Facility Codes: 20
    • Integrated Video Camera: Yes
    • Internal Relays: 3
    • Expandable Entry Points (Max): 97
    • Tamper Switch: Yes
    • Postal Lock Provision: Yes
    • Wiegand Inputs: 2
    • Elevator Control: Yes
    • Events Buffer (Time): 6 Months
    • Programming: Import from DKS Cloud
    • User App: Yes
    • Manager App: Yes
    • Connection: Ethernet, Cellular
    • Operating Temperature: -20°F to 130°F (-29°C to 54°C)
    • Surface Mount Dimensions (H x W x D): 17.25″ x 6.625″ x 3.625″
    • Surface Mount Hood Dimensions (H x W x D): N/A
    • Surface Mount Curved Dimensions (H x W x D): N/A
    • Flush Mount Kit Dimensions (H x W x D): N/A
    • Warranty: 2-Year



    Note 1: DK Cloud account subscription is required. DK consumer factory support included.

    Note 2: Ensure that the upload speed of your internet connection is at least 0.5 Mbps.

    Note 3: Cellular connection requires additional hardware and is an additional monthly fee.





    Features
    • Directory Listing: First name first or Last name first
    • Customizable Home Screen: Yes
    • Screen Saver: Yes
    • Microphone Adjustment: Yes
    • Speaker Adjustment: Yes
    • Voice Feedback Option: Yes
    • DND Option on Video Calls: Yes
    • Visitor (Guest) Management – Scheduled or One Time: Yes
    • Guest Keypad Code: Yes
    • Holiday Schedules: Yes
    • Hold Open Schedules: 15
    • Auto Cancel Hold Schedules: Yes
    • Security Level Time-zones (ea.): 10
    • Do-Not-Call Schedules: 10
    • Entry Code Schedules: 10
    • Geo Fencing Door Control: Yes
    • Video Recording Playback: Yes
    • Create Units (Apt) Option: Yes
    • Resident Audio or Video Call: Yes
    • User (Resident) Auto Expire: Yes
    • Live Transactions: Yes
    • Solar Power Input: Yes
    • On Board Power Switch: Yes





    Surface Dimensions and Weight

    • Shipping weight approximately 15-20 Lbs (6.8-9 kg)
    • Surface mount dimensions: 12″H x 6.5″W x 5″D.





    Flush Dimensions and Weight

    • Shipping weight approximately 15-20 Lbs (6.8-9 kg)
    • Flush mount dimensions: 14″H x 8.375″W x 3.25″D.
