1200 Key Switch

The DKS 1207 and 1209 are Momentary Contact Devices, utilizing a mortise cylinder that can be re-keyed by your locksmith to match other access keys. The DKS 1209 includes a built-in eight ohm speaker, push button, and is lighted. The 1209 is designed to be connected to an existing Intercom System and used as a sub-station to the System. The DKS 1210 uses an ACE Key Cylinder that can be turned on for constant contact applications, such as holding an electronic gate system open.

Overview
Features
Tech Specs
Resources
  • DKS Doorking 1207 Key Switch Lock
  • DKS Doorking 1209 Key Switch Lock
  • DKS Doorking 1206 Key Switch Lock
  • DKS Doorking 1210 Key Switch ACE Lock

1200 Key Switch



The Simple Solution That Grants You Access

Key Switches are the most basic access control where simple entry is needed, or where security guards control entry.
Mortise cylinder Key Switches can be re-keyed by your locksmith to match other access keys. Ace cylinder Key Switches are
used in applications where a higher degree of security is desired. Mortise cylinder Key Switches are also available with a
built-in intercom sub-station.



Find A Dealer

Features



Economic Viability

Stand-alone Key Switches present an economical approach to access control, providing value without compromising on functionality. With a variety of keyed entry devices available, users can choose the option that best suits their needs and budget.



DKS Doorking 1206 Key

Durability and Resistance

Constructed with a stainless steel faceplate and a rugged steel cabinet, these Key Switches boast exceptional durability, making them resistant to vandalism and harsh environmental conditions.





Flexible Mounting Options

Whether it’s surface mounting or post mounting, the 1207, 1209, and 1210 Key Switches offer versatile installation possibilities, catering to both indoor and outdoor applications.



    Model 1209

    Built-in Intercom

    Model 1206

    Key Switch

    Model 1210

    Ace Key for High Level Security

    Model 1206

    Key Switch

    Technical Specifications



    Specifications
    • Stainless steel face plates
    • 16 gauge steel box painted black

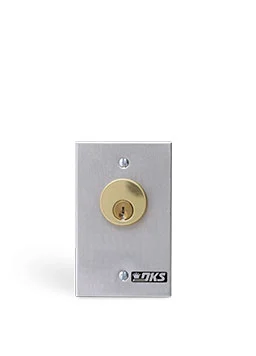

    Model 1206
    • Mortise type key cylinder.
    • Normally Open / Normally Closed switch contacts (field selectable).
    • Mounts into a single-gang electrical box.
    • Dimensions: 4″H x 2.875″W.

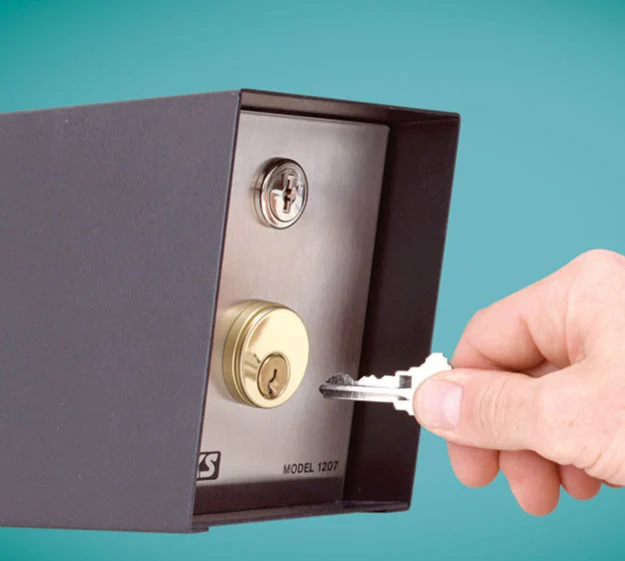

    Model 1207
    • Mortise type key cylinder.
    • Normally Open / Normally Closed switch contacts (field selectable).
    • DImensions: 5.38″H x 4.5″W x 5.38″D
    Model 1210
    • Ace type security key cylinder.
    • Constant contact, normally open.
    • Dimensions: 5.38″H x 4.5″W x 5.38″D.
    Model 1209
    • Mortise type key cylinder.
    • Normally Open / Normally Closed switch contacts (field selectable).
    • LED Lighting.
    • Combines the 1207 keyswitch into a common housing with an intercom sub-station. This sub-station may not be compatible with all intercom systems.
    • Dimensions: 7.5″H x 11″W x 6.5″D.



    MISCELLANEOUS

    Operating Temperature: -10°F to 145°F (-23°C to 62°C)

    Shipping Weight:
    1206 approx 2 Lb (.9kg)
    1207 approx 4 Lb (1.8kg)
    1209 approx 9 Lb (4kg)
    1210 approx 4 Lb (1.8kg)
