6050 / 6100 Residential and Commercial

The unique configuration of these Operators allows the gate arm to rotate from underneath the Operator, enabling the arm to attach to the bottom rail of the gate, were it is virtually unseen from outside the gate. The fully enclosed Operators prevent water from contaminating the output shaft, bearings, and electronics.  Additionally, the frame is built from G90 galvanized steel to prevent rusting. These Operators can be installed directly on a concrete pad, or post-mounted to meet any installation requirements.



Overview
Features
Tech Specs
Resources
Accessories
  • DKS 6050 6100 Gate Operators
  • DKS 6050 Gate Operators

6050 / 6100 Residential and Commercial

Aesthetically Pleasing – Original Quiet Design

The Model 6050 and 6100 operators are designed to operate vehicular swing gates in residential and commercial applications. These operators are designed so that they can be either pad or post mounted without any costly and time consuming field modifications. You need to specify which mounting method when ordering. The unique design of these operators allows the gate arm to be attached to the bottom rail of the gate. This eliminates the need for any brackets to be welded to the face of the gate and creates an aesthetically pleasing installation.

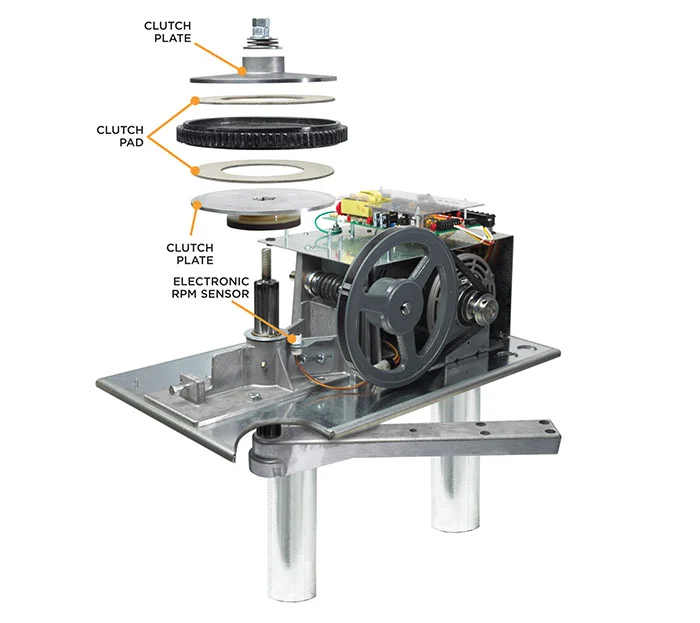

With safety in mind, these Operators contain an electronic and mechanical inherent reverse system for two methods of obstruction detection. The automatic electronic limits, along with the microprocessor-based electronic control board provide advanced features not typically found in Operators in this class.



Compatible with
Swing Gates
Versatile Mount on
Concrete Pad or Post
Low-Visibility Attachment
on Gate’s Bottom Rail



Find A Dealer

Applications

Single Family Residential
Small Multi-Family Residential
Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities

Product Features

DKS Doorking 6050 Low Visibility Gate Operators



Low Visibility Gate Operators

Provides a cleaner looking install.



DKS Doorking 6050 Smooth Operation Gate Operators



Smooth Operation

Soft Start / Soft Stop provides smooth gate operation.



    Arm Joint Cover

    Helps to eliminate pinch points and protects against harsh weather.

    Loop Detectors

    Easy plug-in ports for DKS Loop Detectors.

    Entrapment Prevention

    System reverses gate on contact to prevent injury and damage.

    Unique Design

    Simplifies installation and provides easy access to all internal parts.



    Technical Specifications

    10′ / 14′ Maximum Gate Lengths

    400 lb. / 500 lb. Maximum Gate Weights

    Opens 90º in Approximately 12 Seconds

    Optional Backup Power Inverters

    1/2 HP Limited & 1/2 HP Continuous Duty Motors

    Specifications

    Model 6050

    • Maximum gate width 10-feet.
    • Maximum gate weight 400 pounds*.  (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator).
    • Swings gate 90 degrees in approximately 10-seconds.
    • 1/2 HP limited-duty motor.
    • 115 VAC, 4.3 Amps.
    • Class I applications.
    • Compliant with UL 325 and 991. ETL Listed.  (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2  entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
    • Dimensions (operator only): 13.5″W x 11″H* x 23″D (* Height of operator only. Actual height above ground is determined by which mounting method is used)
    Model 6100
    • Maximum gate width 14-feet.
    • Maximum gate weight 500 pounds*.  (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
    • Swings gate 90 degrees in approximately 10-seconds.
    • 1/2 HP continuous-duty motor.
    • 115 VAC, 5.4 Amps.
    • Class I and Class II applications.
    • Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment protection devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
    • Dimensions (operator only): 13.5″W x 11″H* x 23″D (**27.75″D with convenience open option)  (* Height of operator only. Actual height above ground is determined by which mounting method is used)
    Gate TrackerTM

    Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control system (requires 2358 expansion board)



    Mechanical
    • Self-adjusting, no maintenance magnetic limits.
    • Overlap feature for dual swing gate operation.
    • Designed with a built-in primary and secondary entrapment prevention system.
    • Ports for plug-in loop detectors.
    • Fail-safe release.
    • Tamper detect circuit.
    • Gate tracker reporting output.
    • Programming switches.
    • Built-in reset switch.
    • Built-in power On/Off switch.
    Electrical
    • Self-adjusting, no maintenance magnetic limits
    • Auto-close timer (1-23 seconds)
    • Gate overlap feature for bi-parting (dual) gate operation
    • Simple connection for secondary operator in bi-parting gate systems
    • Tamper protect feature
    • Built-in On / Off switch
    • Built-in alarm reset switch
    • Selectable shadow / reverse loop function
    • Magnetic lock output
    • Ports for plug-in open and reverse loop detectors (DKS plug-in detectors only)



    Miscellaneous
    • Environmental: 10°F to 140°F (-12°C to 62°C)
    • Thermostatically controlled heater kit recommended for colder environments
    • Operator requires monitored Type B1 and/or Type B2 entrapment protection devices
    Options
    • Bi-parting gate connection cable (6050 secondary operator is shipped with 30-feet of cable; 6100 secondary operator is shipped with 40-feet of cable.)
    • Post or pad mount – specify which.
    • Plug-in loop detectors.
    • Heater kit for cold environments.
    • Surge suppressors.





    Dimensions and Weight – Model 6050


    Dimensions (operator only): 13.5″W x 11″H* x 23″D (* Height of operator only. Actual height above ground is determined by which mounting method is used)





    Dimensions and Weight – Model 6100


    Dimensions (operator only): 13.5″W x 11″H* x 23″D (**27.75″D with convenience open option)  (* Height of operator only. Actual height above ground is determined by which mounting method is used)
