Cellular Control Box
Provide internet connectivity for System programming and/or voice communication to eVolve Series, 1830 Series, Access Plus, and Standard/1812 Series Entry Systems. A Cellular Connection is a great option for Entry Systems without access to an ethernet port for a VoIP Connection, or as a Cellular Retrofit option for those that currently use a POTS Connection. Our most versatile Easy Connect Internet Option: an AT&T 4G LTE Cellular Internet Connection using the Cellular Control Box.
Cellular Control Box
The Wireless Internet Connection Option for Entry Systems
Cellular is a flexible, wireless solution for connecting System Managers and Users to their Access Control System.
While the eVolve Series has built-in Cellular compatibility, The optional DKS Cellular™ Control Box provides voice communication to all other DKS Entry Systems* through a cellular network, much like a mobile phone. The Cellular Connection also enables completely remote programming for DKS Entry Systems in the 1830 Series and Access Plus Series using one of the DKS Easy Connect Programming Options. The Cellular Connection Box is easy to install and sets up with instant access. Cellular is the perfect option for locations that do not have access to an internet line and don’t want to dig a trench to add one, properties with remote access points, or users who want to update from their original POTS Connection – plus, it’s more affordable than a traditional business line.
The DKS Cellular Control Box operates on the AT&T 4G-LTE cellular network (where available), and as such, a monthly subscription fee applies (just like your cell phone). The DKS Cellular Service provides very competitive monthly rates and is available in all states including Alaska, Hawaii, Puerto Rico and all U.S. Territories, Canada, and Mexico.
The DKS Cellular Control Box may not be compatible with some older Telephone Entry Systems without a circuit board upgrade for the Entry System. Find a DKS Dealer to understand your Cellular Retrofit options.
*Excludes the 1816 Intercom System.
Provides Voice Communication to All DKS Entry Systems*
Provides Programming Connection to 1830s & Access Plus
Reliable & Cost Effective AT&T 4G-LTE Service
Ready to activate your DKS Cellular Connection?
Applications
Apartment Complexes & College Residence Halls
Commercial & Industrial
Gated Communities
Large Multi-Family Residential
Maximum Security
Mixed Use Buildings
Parking Facilities
Self Storage
Single Family Residential
Small Multi-Family Residential
Product Compatibility
Built-in Cellular Control Box
eVolve Series
No Additional Cellular Control Box Needed
Compatible with Optional Cellular Control Box
1830s Series
Cellular Control Box Provides Voice Communication & Remote Programming
Access Plus Series
Cellular Control Box Provides Voice Communication & Remote Programming
Standard & 1812 Series
Cellular Control Box Provides Voice Communication
How It Works
Features

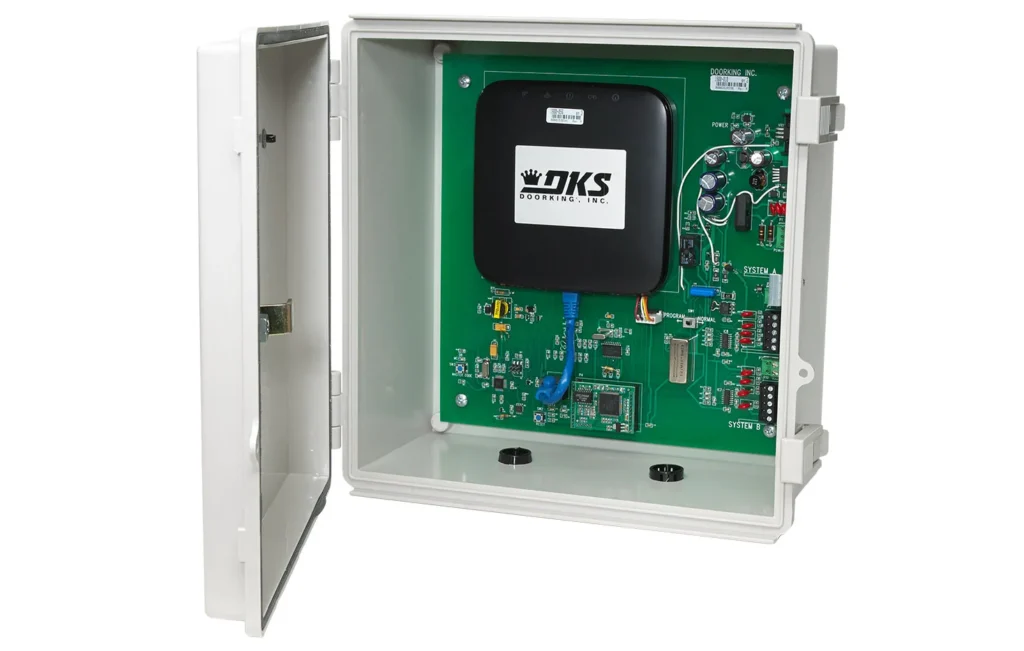

The DKS Cellular Control Box is also the Cellular Retrofit Option
The Cellular Control Box is fully backward compatible with new and older DKS Entry Systems so it’s easy to keep your Entry System up and running with the latest internet connectivity option.
Please note that some older DKS Entry Systems may need a circuit board upgrade to be Cellular-ready. We recommend contacting a DKS Dealer in your area to discuss your options and select the right Cellular Control Box for your Entry System.
Still Using a POTS Connection? Save Money and Avoid Loss of Service with a New Cellular Connection
A POTS Connection is no longer recommended or supported by DKS. DKS has phased out support for POTS Connections as phone companies nationwide are transitioning to fiber and, in the near future, will no longer service the copper lines needed for the POTS Connection. DKS recommends switching to a VoIP or Cellular Connection, you’ll save money each month and avoid a loss of Entry System service. Typical business phone lines run between $100 to $200 per month, PLUS the expense of long distance charges, Cellular phone line will cost just a fraction of that monthly.
No Available Ethernet Connection for VoIP? No Problem with DKS Cellular
While a VoIP Connection is a great internet option, not all properties have access to an ethernet port where they need to install the Entry System. A great alternative is the DKS Cellular Option™ for voice Communication and System programming over the AT&T LTE cellular network. The Cellular Control Box is easy to install and sets up with instant access once your cellular line is activated. The Cellular Control Box eliminates the need for long wire runs, expensive trenching for new lines, or reliance on expensive old phone lines that are being phased out.
DKS Cellular is the Only True "Machine to Machine" Cellular Connection for Entry System Programming

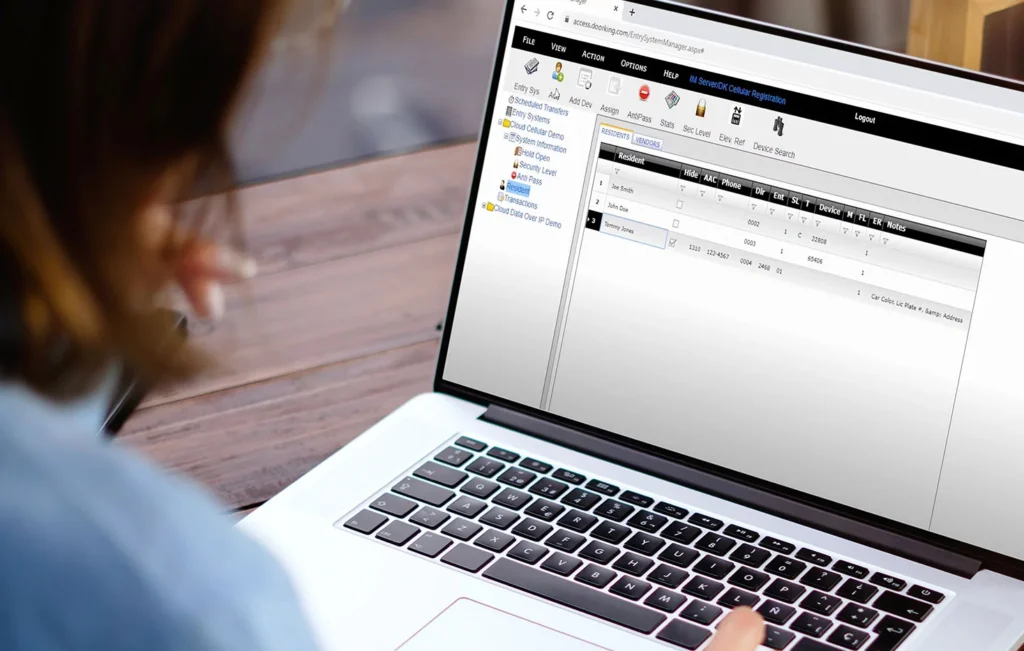

Other systems claim they can be programmed via the cellular network, but they only accomplish this through a series of text messages — imagine trying to program hundreds of telephone numbers, user names, card codes, holiday schedules, permission levels, hold open time zones, elevator control parameters, etc. with text messages. The DKS Cellular Connection is unique in the industry as it’s the only service that allows you to “push” your Entry System settings directly from the Cloud Account Managers and Windows Account Managers to the Entry System using a true machine to machine (M2M) connection.
Reliable, Wide Cellular Coverage from AT&T

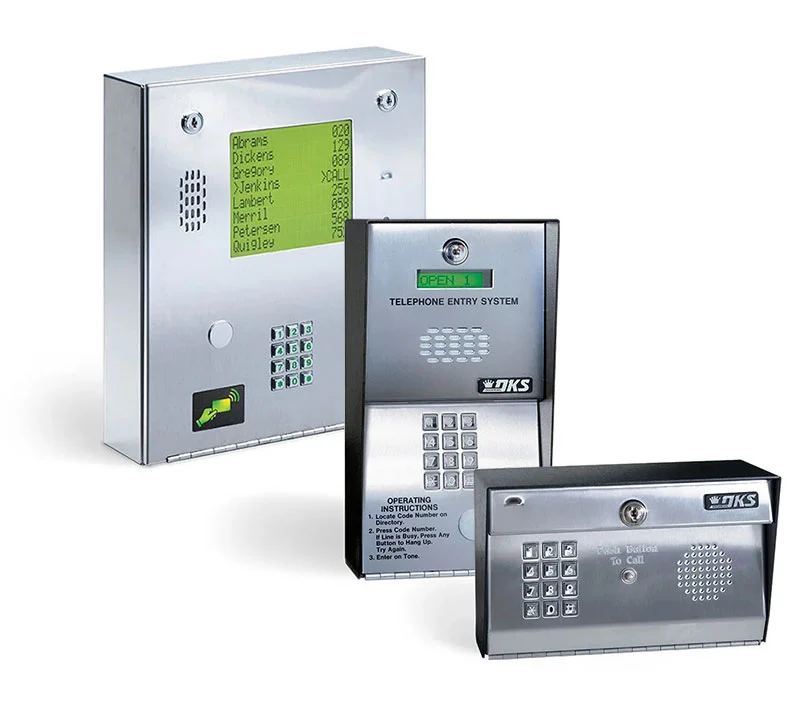

Once installed, the Cellular Control Box makes DKS Entry Systems compatible with a 4G LTE cellular connection for System programming and/or voice communication, instead of relying on the obsolete POTS Connection.
1800-080 Cellular Control Box
Provides voice Communication to Standard Series and 1812 Series Entry Systems. Provides voice communication and programming via Cloud Account Managers or Windows Account Manager to 1830 Series Entry Systems.
1800-081 Cellular Control Box
Provides voice communication and programming via Access Plus Windows Account Manager Version 1.07 A and higher to Access Plus Series Entry Systems.
Choose eVolve for Built-in Cellular
DKS eVolve Series Entry Systems are designed with cellular compatibility built right in, so you don’t need the optional DKS Cellular Control Box. See the eVolve Series here to find the right Entry System for you.
The Most Versatile Connection Option
Choose a Cellular Connection for Entry Systems in remote locations without access to ethernet for a VoIP connection, or retrofit an older DKS Entry system to update from a POTS Connection. A Cellular line can also be split for guard tower or dual entry.

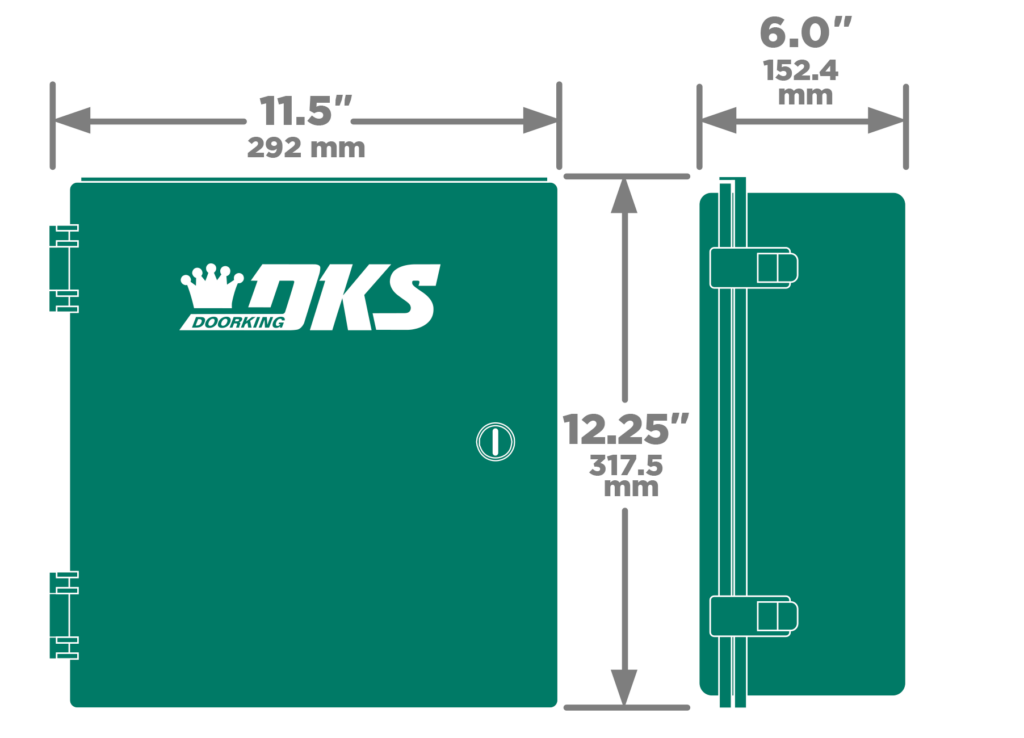

Technical Specifications
Compatible with Cloud Account Manager
Compatible with eVolve Cloud Account Manager
Compatible with Windows Account Manager
Compatible with Access Plus Windows Account Manager
CELLULAR CONTROL BOX:
- Provides Voice and Remote Programming connections for up to two (2) DKS Entry Systems.
- Cellular Control Box 1800-080: compatible with 1830 Series 1833, 1834, 1835, 1837, 1838, 1812 Series and Standard Series 1802, 1803, 1808, 1810 Entry Systems. Compatible with Windows Account Manager and Cloud Account Manager.
- Cellular Control Box 1800-081: compatible with Access Plus Series Entry Systems 1802AP, 1808AP, 1810AP, 1812AP, 1838AP. Compatible with Access Plus Windows Account Manager 1.07A or higher.
AT&T 4G LTE NETWORK:
- Both Cellular Control Box models 1800-080 and 1800-081 operate on the AT&T 4G-LTA cellular network. Service offered where available, click here to check for AT&T coverage at your location.
- DKS Cellular is available in all states including Alaska and Hawaii. It is also available in Puerto Rico, U.S. Territories, Canada, and Mexico.
- DKS Cellular service is not available in any additional countries.
- Account registration is required to active Cellular service, see Cellular Activation instructions here.
- Select your level of service at the time of registration: Voice Communication only, Programming Connection only, or Voice and Programming Connection.
ELECTRICAL:
- 16 VAC input power (transformer provided).
MISCELLANEOUS:
- Environmental: 10°F to 145°F (-12°C to 62°C)
SHIPPING WEIGHT:
- Approximately 10 Lbs (4.5 kg)
Notes:
- DKS Cellular Connection devices cannot be used for 911 calls.
- DKS Cellular Control Box may not be compatible with older Entry Systems without a circuit board upgrade for the Entry System. Please contact a DKS Dealer to discuss your options.
- DKS Cellular Control Box not compatible with 1816 Intercom System-Multi.
- DKS Cellular Control Box not compatible with eVolve Series Entry System as Celluar compatibility is built-in to the Systems in this series.
1800-080 |
1800-081 |
|
| ENTRY SYSTEMS | up to 2 1830 series systems | up to 2 Access Plus systems |
AT&T 4G LTE |
Yes |
Yes |
CELLULAR SERVICE |
Voice & Data |
Voice & Data |
FOR USE WITH DKS ENTRY SYSTEMS |
1833, 1834, 1835, 1837, 1838 |
1802AP, 1808AP, 1810AP, 1812AP, 1838AP, 1802, 1803, 1808, 1810, 1812 |
POWER |
16 VAC input |
16 VAC input |
Plans for Voice Communication + Programming |
|||
Voice Minutes / Month: |
Data Transfers / Month: |
Monthly Fee: |
Applies to: |
Up to 100 |
27.95 |
307.45 |
1800-080, 1800-081 |
101 – 450 |
23.95 |
263.45 |
|
| 451 – 1200 | 61 – 90 | 63.95 | |
| 1201 – 2500 | 91 – 120 | 73.95 | |
2501 + |
121 + |
79.95 |
|
Plans for Voice Communication Only |
|||
Voice Minutes / Month: |
Data Transfers / Month: |
Monthly Fee: |
Applies to: |
Up to 100 |
38.95 |
1800-080 |
|
101 – 450 |
45.95 |
||
| 451 – 1200 | 53.95 | ||
| 1201 – 2500 | 61.95 | ||
2501 + |
68.95 |
||
Prices subject to change.
