Wiegand Keypads

Access Controller Keypads
Otherwise known as “26-bit Wiegand output” devices, the DKS 1815 Series family of Keypads provides access control for virtually any application where digital code entry is desired with connection to an Access Controller.
These Keypads are not designed for stand-alone operation and must be connected to an Access Controller

Overview
Features
Tech Specs
Resources
  • DKS Doorking 1500 keypad accessory

Wiegand Keypads



Access Keypads Controlled by Telephone Entry Systems Only

The DKS series of wiegand keypads provide access control for virtually any application where digital code entry is desired. These keypads are not designed for stand‐alone operation and must be connected to an access controller (1833, 1835, 1837, 1838).

• Single gang electrical box model available in silver or black finish.
• Flush or surface mount versions available.
• Backlit Keypad numbers.
• Combination Keypad and Card Reader — each operate independently of each other and available with DKS Prox, HID, or AWID Readers.
• Smartphone manager programming, and user entry, with DKS Apps.



Find A Dealer

Features



Easily Integrated

With the DKS 1830 Series of Telephone Entry Control Systems



DKS Doorking weigand 1503 1506 Surface Access Control

Surface/Post Mount

As well as Flush Mount and Single Gang Electrical Box versions.





Keypads

Keypads are a simple method to control access without requiring credentials. Access codes can be easily changed for new and departing tenants or workers. DKS Keypads provide access control for virtually any application where digital code entry is desired. Keypads can also be ordered with a built-in intercom sub-station or as a keypad / card reader combination. These vandal resistant keypads use stainless steel faceplates, galvanized steel sub-plates and are housed in a rugged steel cabinet.

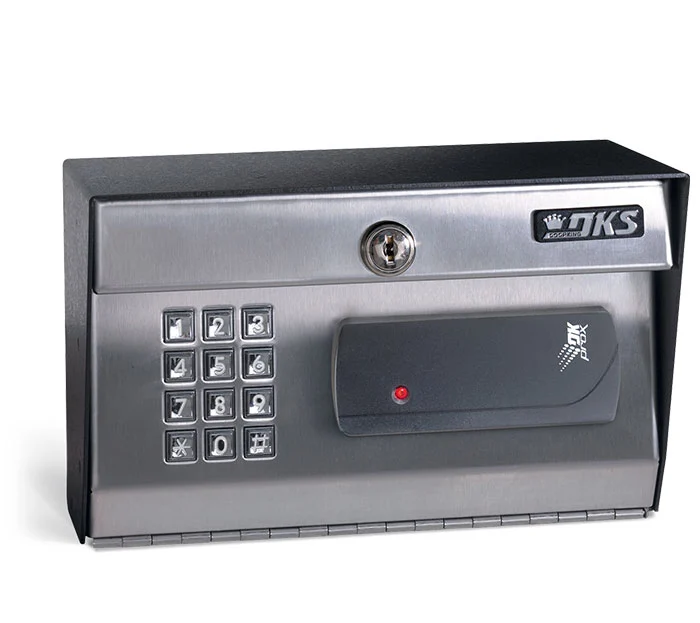

    MODEL 1815-250

    Keypad with DK Prox Card Reader

    MODEL 1815-051

    Surface Mount

    MODEL 1815-059

    Mobile Phone Compatible

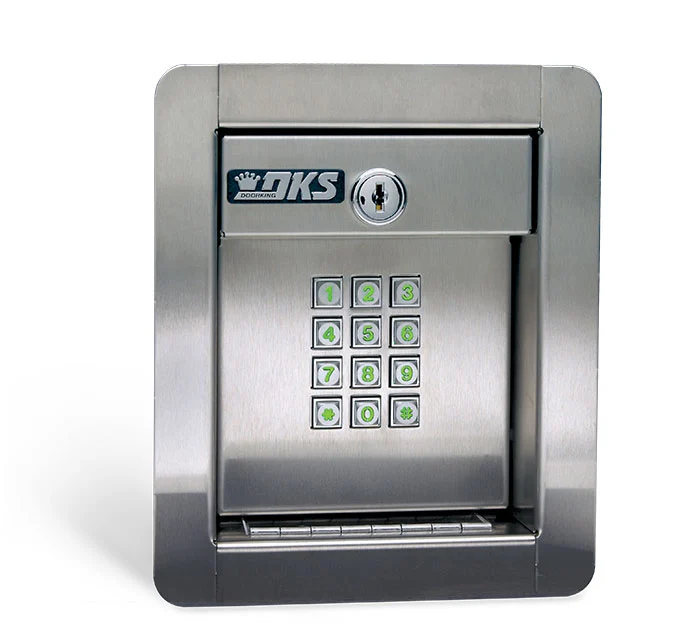

    MODEL 1815-052

    Flush Mount

    Technical Specifications



    Specifications

    WIEGAND OUTPUT MODELS

    • These keypads cannot be used in a stand-alone application.  They must be connected to an access controller such as DKS 1830 series systems.
    • Output format is 26-bit wiegand.
    • Surface Mount Compact – 1815-059
    • Surface Mount Stainless Steel Faceplate – 1815-051
    • Flush Mount Stainless Steel Faceplate – P/N 1815-052
    • Surface Mount with Intercom Substation – P/N 1504-120
    • Surface Mount Stainless Steel Faceplate with AWID Card Reader – P/N 1815-248
    • Surface Mount Stainless Steel Faceplate with HID Card Reader – P/N 1815-249
    • Surface Mount Stainless Steel Faceplate with DK Prox Card Reader – P/N 1815-250

    RS 485 OUTPUT MODELS

    • These keypads cannot be used in a stand-alone application.  They must be connected to an access controller such as the DKS Access Plus series systems.
    • Output format is RS-485
    • Surface Mount Stainless Steel Faceplate – P/N 1513-081
    • Flush Mount Stainless Steel Faceplate – P/N 1513-082



    Features


    Model 1815-059

    • Black crinkle powder-coat finish
    • Smart Open application allows users to activate their entry code from their Android smartphone
    • 26-bit wiegand output
    • Low power mode for solar applications
    • Operates on 12 to 24 volt AC or DC power
    Model 1815-051
    • Operates on 16 VAC power
    • Surface mount, lighted
    Model 1815-052
    • Operates on 16 VAC power
    • Flush mount, lighted
    Model 1504-120
    • Wiegand keypad plus built in intercom substation that can be connected to an existing intercom master station
    Model 1815-247
    • Combination wiegand keypad and card reader – each operate independent of each other
    • 1815‐217 (RF Logics) reader.
    Model 1815-248
    • Combination wiegand keypad and card reader – each operate independent of each other
    • 1815‐281 (AWID) reader.
    Model 1815-249
    • Combination wiegand keypad and card reader – each operate independent of each other
    • 1815‐382 (HID) reader.
    Model 1815-250
    • Combination wiegand keypad and card reader – each operate independent of each other
    • 1815‐300 (DK Prox) reader. Click here for cards.
