1603 AutoSpikes

The DKS 1603 Barrier Gate Operator Automated Spike System is designed as a modular system, allowing for easy flexibility in different applications and easy installation.

The 1603 Operator is designed with many advanced features and mechanically links the Spikes to the Barrier Arm. Ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.

Overview
Features
Tech Specs
Resources
Accessories

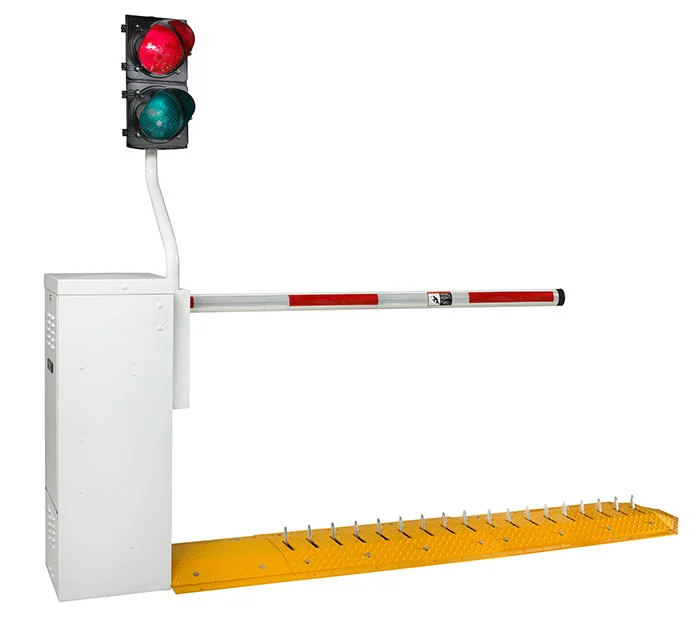

  • 1603 traffic control - Barrier Gate Operator Automated Spike System

1603 AutoSpikes

For a Higher Degree of Traffic Control

The DKS 1603 Barrier Gate Operator / Automated Spike System is designed as a modular system allowing for easy flexibility in different applications and easy installation. The 1603 Operator is designed with many advanced features and mechanically links the spikes to the Barrier Arm. The surface mount Spikes are easy to install and do not require any trenching or excavating. The 1603 Auto Spike System is ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.

CAUTION: Installation and use of traffic control spike units in areas that are subject to freezing weather with potential of snow and ice accumulation IS NOT RECOMMENDED.  The units can freeze in the up position and cause unintended damage or injury due to the inability for the spikes to retract.

With advancements in automotive tire construction, and with the many different types, sizes and styles of tires, we cannot guarantee that Traffic Control Spikes will penetrate all tires.  For use with automotive and light pickup trucks only.

A complete 1603 / Auto Spike System consists of several different components. A typical system will require a 1603 Operator, Transfer Box, Tunnel section(s) as needed, Spike section(s) as needed, End Cap, Barrier Arm, Arm Hardware Kit, and Speed Bumps. A Traffic Signal and/or Warning Sign is required with this System. Contact your professional DKS System Installer, or DoorKing, for more information on complete System requirements.



Mechanically Links
Spikes to Barrier Arm
Affordable Install with
Surface Mount Design
18 Spike Barrier for
Light Pickup Trucks



Find A Dealer

Applications

Commercial & Industrial
Parking Facilities
Maximum Security

Product Features

1603 Automatic Spike System - DKS

Surface Mount

Spikes install easily without trenching and double as a speed bump.

1602 warning sign and light feature - DKS

Warning Sign and Signal Light

Sign warns drivers and Signal Light (red/green) is synchronized with the Barrier Arm.

WARN Beeper / Operate Beeper

Beeper will beep 2 times before lowering arm ONLY when the TIMER times out. If using a down loop, when it gets activated, it will cancel the timer and lower arm WITHOUT beeping.
Beeper will beep 2 times before lowering arm EVERYTIME.

    %%tb-image-alt-text%%
    DKS Pedestrian Protection System

    It’s aware — even when they’re not.

    %%tb-image-alt-text%%
    Drive Extension Safety Design

    Flexible shaft drive keeps Spikes operable and eliminates down time from breakage.

    %%tb-image-alt-text%%
    Octagonal Lighted Signal Arm

    Light the way for customers to exit easily and safely with signals and sensors.

    %%tb-image-alt-text%%
    Folding Arm Kits

    For low ceiling applications.

    Technical Specifications

    14′ Maximum Arm Length

    Left or Right Hand Mount

    Arm Styles: Octagonal Aluminum & Round Aluminum

    Arm Rotates 90° in Approx. 2.5 Seconds

    1/2 HP Continuous Duty Motor

    Specifications

    1603

    • 1/2 HP continuous-duty motor.
    • 115, 230°, 460° VAC.   (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
    • 40:1 gear-box running in a continuous oil bath.
    • Arm rotates 90° in approximately 2.5 seconds.
    • Class II, III and IV applications.
    • Compliant with UL 325 and 991. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator.   Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
    • Dimensions: 15.25″W x 43.5″H x 15.5″D.
    Spike Components
    • Maximum 20,000 Lb. per axle weight limit.
    • Tunnel sections surface mount: 31″W x 3″H x 18″L
    • Spike sections surface mount: 31″W x 3″H x 36″L
    • End Cap: 31″W x 3″H x 12.25″L



    Mechanical
    • Magnetic limit control.
    • Ports for plug-in loop detectors.
    • Automatic sequencing inputs for use with slide and swing gate operators.
    • Up input memory buffer.
    • Down memory option.
    • Multiple up commands.
    • Two convenience outlets.
    • Gate tracker reporting output.
    • Programming switches.
    • Built-in power On/Off switch.
    • Left or right hand mount.
    Options
    • 14 – Foot Octagonal Aluminum Arm.
    • 14 – Foot Octangonal Aluminum Arm Rev Edge + Lighted Red / Green LEDs.
    • 14 – Foot Octangonal Aluminum Arm Rev Edge.
    • 14 – Foot Round Aluminum Arm.
    • DKS Pedestrian Protection System
    • Plug-in loop detectors.
    • DC powered convenience open.
    • Heater kit.
    • Fan kit.
    • Surge suppressors.
    • Manual Crank kit.





    Dimensions and Weight
