Keep it Secret, Keep it Secure

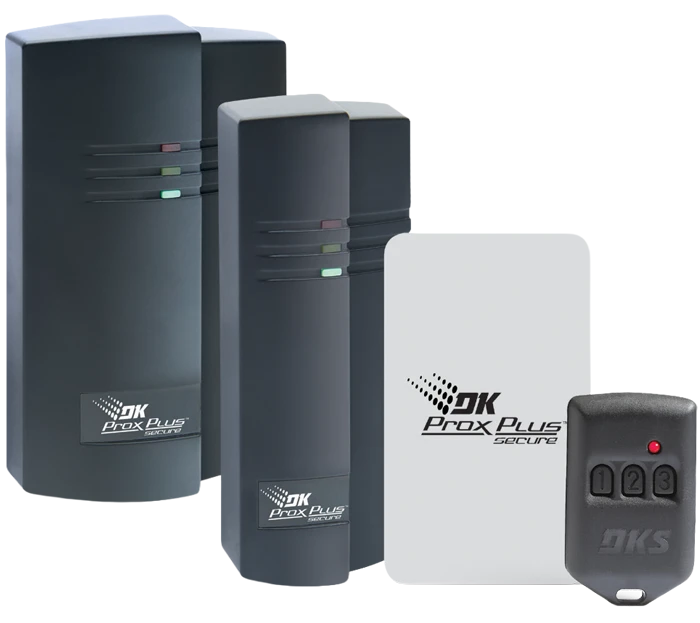

DKS ProxPlus™ Secure Readers, Cards and MicroPlus® RF transmitters provide encrypted, high-security credential access for gates and doors—without sacrificing broad access-control compatibility.
Applications
Small Multi-Family Residential
Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities
Maximum Security
Over 40 Million
people have viewed a social media video showing just how easy it is to get into any property with widely available scanning devices.
Traditional low-frequency 125 kHz proximity cards can openly broadcast facility codes and serial numbers. ProxPlus Secure credentials operate at 13.56 MHz and use an encrypted unique identifier with proprietary coding architecture.
The card and reader verify one another before credential data is transmitted.
Multi-Layer Security for Every Access Point
01
Two Levels of Security
ProxPlus Secure Cards and Card Readers include an encrypted unique identifier making the Cards almost impossible to duplicate.
02
ProxPlus Secure Applications
For applications that require a higher level of security, providing a variety of security levels and clearances for vulnerable locations such as ports, schools, laboratories, utility facilities, airports, and more.
03
Industry-Standard Wiegand Output
WHY UPGRADE
DKS ProxPlus Secure
- 13.56 MHz credential platform
- Encrypted unique identifier and proprietary coding
- Credential-reader authentication before data transfer
- 26-bit Wiegand compatibility
- VS -

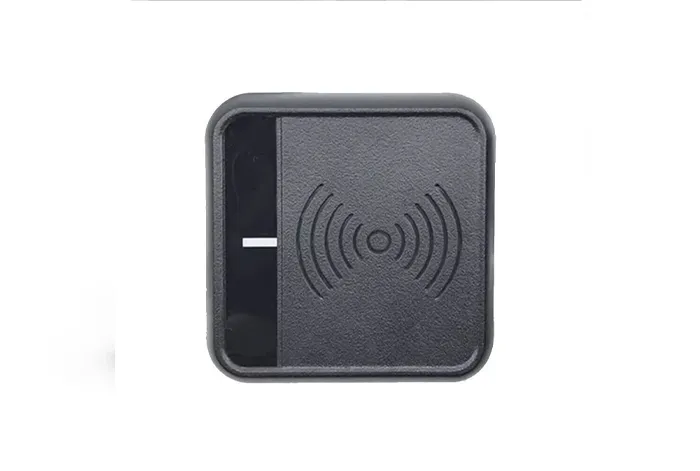

Standard 125 kHz Proximity
- Low-frequency credential technology
- Facility code and serial data may be openly broadcast
- More vulnerable to widely available scanning and cloning devices
Secure access for cards, tags and RF transmitters.
Versatile Access with Reliable Encryption
ProxPlus Secure card readers will read only ProxPlus Secure cards. Other forms of Mifare cards are not compatible with the ProxPlus Secure reader, making this system one of the most secured offered.
Simple Card Identification without Sacrificing Security
1815-690 Compatible with Mifare Classic 4 or 7 byte cards. This card scanner will not read ProxPlus Secure cards. 1815-692 Compatible with DK ProxPlus Secure cards only, the DKS ProxPlus Secure Card Scanner enables administrators to view the card number of otherwise unlabeled cards, keeping security intact.
Functional Design
Card Readers come in two sizes to accommodate sizeable high-traffic access points and even small or awkward locations where wall space is at a premium.
High security. Straightforward integration.
ProxPlus Secure readers are available in multiple mounting and output configurations for new installations and security upgrades.
| Read Range | Up to 1 inch |
|---|---|
| Reader Output | 26-bit Wiegand |
| Credential Type | DK ProxPlus Secure only |
| System Support | 1830 Series + compatible systems |
| Mounting | Mullion / single-gang / surface |
| Other Outputs | RS-485 / dry-contact relay options |
