Magnetic Gate Locks

The DKS series of Gate (DKGL) Locks offers a wide range of high-quality electro-magnetic Locks and Brackets to accommodate most access control locking requirements.

Gate Locks are designed for outdoor applications. The 1200 lb (544 kg) Lock provides an electrical enclosure with pre-drilled and tapped conduit holes on the top, bottom, side, and back, providing easy wiring and installation. The 600 lb (272 kg) Lock includes a built-in cable assembly for all wiring connections.

Overview
Features
Tech Specs
Resources
Accessories
  • Magnetic Gate Locks - high-quality electro-magnetic Locks

Magnetic Gate Locks

1200 lb of Hold – No Moving Parts to Wear Out

The DKGL (DoorKing Gate Lock) series of magnetic locks are designed for outdoor gate applications.   Magnetic locks have no moving parts to wear out or break and are virtually indestructible.   1200 lb locks are typically used for vehicular gate applications while the 600 lb lock is used for pedestrian gate applications.   The 1200 lb locks are available in kit form which makes installation quick and easy.   The kits include predrilled and tapped lock and armature mounting brackets that can be welded to the gate.   The magnetic lock and armature are then bolted to the brackets with the supplied hardware.



Compatible with
Pedestrian Gates
600 or 1,200 lb.
of Hold
No Moving Parts to
Wear Out or Break



Find A Dealer

Applications

Small Multi-Family Residential
Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities
Maximum Security

Product Features

DKS - Magnetic Gate Locks - Custom Mounting - high-quality electro-magnetic Locks



Custom Mounting

Brackets can be fitted to pedestrian and vehicular gates of any shape or angle, allowing for custom mounting of Magnetic Locks with up to 1,200 lb of holding force. Hardware provided.



 DKS - Magnetic Locks high-quality electro-magnetic Locks - Long Lasting



Long Lasting

No moving parts to wear out or break which ensures a locking device with an extremely long life.



    Fail-Safe

    Magnetic Locks can be programmed to automatically unlock in emergency situations such as fires or power outages, ensuring failsafe escape routes for all occupants.

    Holding Force

    600 to 1,200 lb of holding force by combining high-strength magnets with mechanically interlocking steel tabs that click into place and help prevent forced entry.

    Quick Release

    Pop button ensures instant release when power is cut.

    Mounting

    Mortise mount and surface mount styles available.
    Door Locks are available for single or dual-door applications.

    Technical Specifications

    Surface Mount

    600 Lb | 1200 Lb

    Fail-safe

    Built-in relay on selected models

    12 / 24 Volt DC

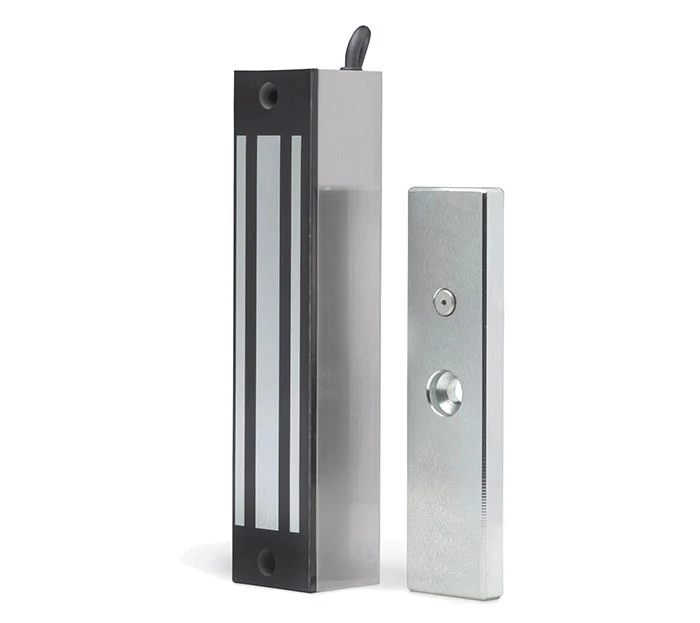

    DKGL-S6-1 LOCK
    • 600 Lb holding force magnetic lock.
    • Built-in cable assembly.
    • 12 or 24 Volt DC operation.
    • Face mounting only.
    • Quick release “pop” button on armature.
    • Built-in signal relay to indicate the status of the magnetic lock; secure or unsecured.



    1216-080 LOCK KIT
    • 1200 Lb holding force magnetic lock.
    • Built-in electrical enclosure with predrilled and tapped conduit holes.
    • Steel (can be welded) predrilled and tapped lock and armature mounting brackets.
    • 12 or 24 Volt DC operation.
    • Top, bottom or face mounting.
    • Quick release “pop” button on armature.
    1216-081 LOCK KIT
    • Same as the 1216-080 kit plus the lock includes a built-in signal relay to indicate the status of the magnetic lock; secure or unsecured.





    Dimensions and Weight
