Magnetic Door Locks

The DKS series of Door (DKML) Locks offers a wide range of high-quality electro-magnetic Locks and Brackets to accommodate most access control locking requirements.

Door Locks can be ordered in surface or mortise mount styles, with special options such as LED Lock Status Indicators and a built-in timer for automatic lock reactivation after a preset time.

These magnetic door locks are rated for indoor use only.

Overview
Features
Tech Specs
Resources
Accessories
  • DKS Magnetic Door Locks

Magnetic Door Locks

Up to 1200 lb of Hold – No Moving Parts to Wear Out

The DKML (DoorKing Magnetic Lock) series of magnetic locks offer a wide range of high quality electro-magnetic locks (1200, 600 and 300 lb locks) and brackets to accommodate almost any access control door locking requirement. We also offer a 2000 lb shear lock which provides both a magnetic and mechanical connection. Magnetic locks have no moving parts to wear out or break and are virtually indestructible. Most locks are available in both surface and flush mount designs and can be ordered with special options such as LED lock status indicators, signal relays and built-in timers for automatic re-lock after a preset time period.  These magnetic door locks are designed for indoor use only.



Designed for Use
With Indoor Doors
300, 600 or
1,200 lb. of Hold
No Moving Parts to
Wear Out or Break



Find A Dealer

Applications

Small Multi-Family Residential
Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities
Maximum Security

Product Features

DKS - Magnetic Locks high-quality electro-magnetic Locks - Long Lasting



Long Lasting

No moving parts to wear out or break which ensures a locking device with an extremely long life.







High Strength

Shear locks offer 2000 lbs. (907Kg) of holding force by combining high strength magnets with mechanically interlocking steel tabs that click into place and help prevent forced entry.



    Fail-Safe

    Magnetic Locks can be programmed to automatically unlock in emergency situations such as fires or power outages, ensuring failsafe escape routes for all occupants.

    Holding Force

    600 to 1,200 lb of holding force by combining high-strength magnets with mechanically interlocking steel tabs that click into place and help prevent forced entry.

    Quick Release

    Pop button ensures instant release when power is cut.

    Mounting

    Mortise mount and surface mount styles available.
    Door Locks are available for single or dual-door applications.

    Technical Specifications

    Surface & Mortise Mount

    300, 600, 1200, and 2000 Lb

    Fail-safe

    Built-in relay on selected models

    12 / 24 Volt DC

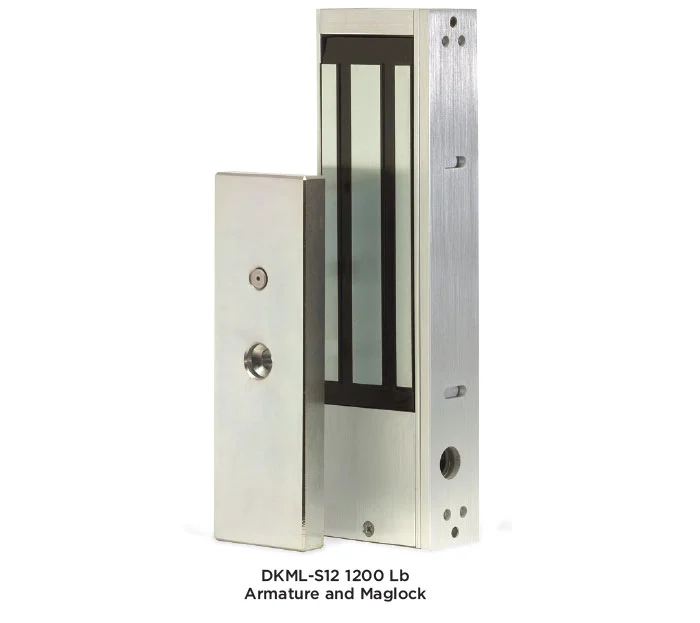

    1200 Lb LOCKS
    • 1200 Lb holding force magnetic lock; single or dual doors.
    • Surface mount only.
    • Built-in electrical enclosure.
    • 12 or 24 Volt DC operation.
    • Quick release “pop” button on armature.
    • Single doors: 2.875″H x 10.5″W x 1.5″D.
    • Dual doors: 2.875″H x 21″W x 1.5″D.
    • Locks are available with a built-in signal relay and LED status indicator (R/G) and a built-in delay timer adjustable from 1-90 seconds.

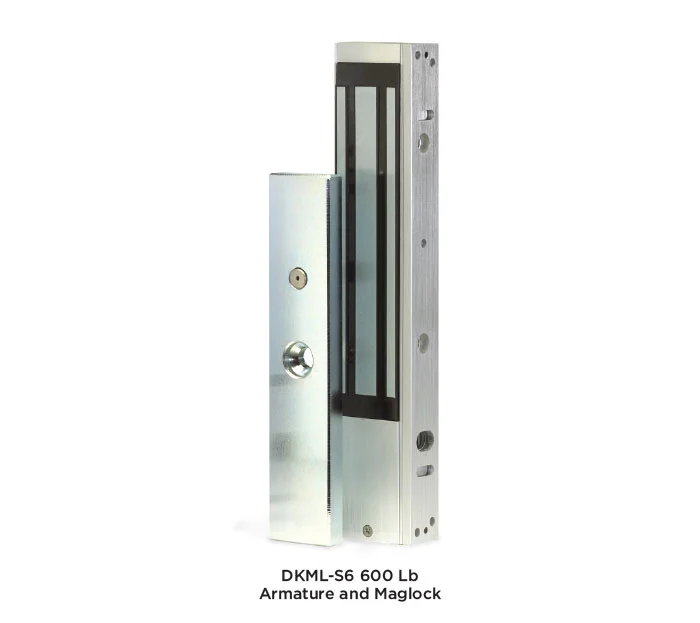

    600 Lb LOCKS
    • 600 Lb holding force magnetic lock; single or dual (surface mount only) doors.
    • Surface or mortise mount available.
    • Built-in electrical enclosure (surface mount only).
    • 12 or 24 Volt DC operation.
    • Quick release “pop” button on armature.
    • Single doors surface mount: 2.875″H x 9.875″W x 1.5″D.
    • Single doors mortise mount: 1.5″H x 9″W x 1.062″D.
    • Dual doors surface mount only: 2.875″H x 19.75″W x 1.5″D.
    • Locks are available with a built-in signal relay and LED status indicator (R/G) and a built-in delay timer adjustable from 1-90 seconds.

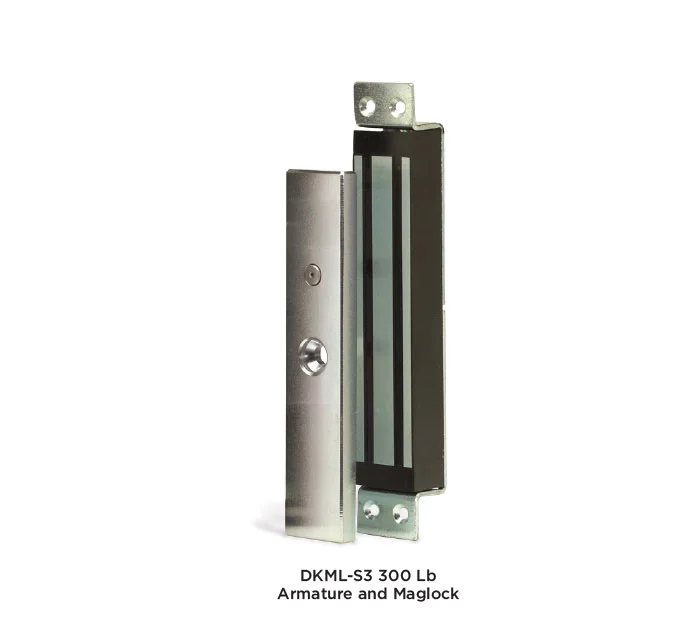

    300 Lb LOCKS
    • 300 Lb holding force magnetic lock.
    • Surface or mortise mount available.
    • Built-in electrical enclosure (surface mount only).
    • 12 or 24 Volt DC operation.
    • Quick release “pop” button on armature.
    • Single doors surface mount: 1.375″H x 6.5″W x .812″D.
    • Single doors mortise mount: 1.375″H x 7.875″W x .812″D.

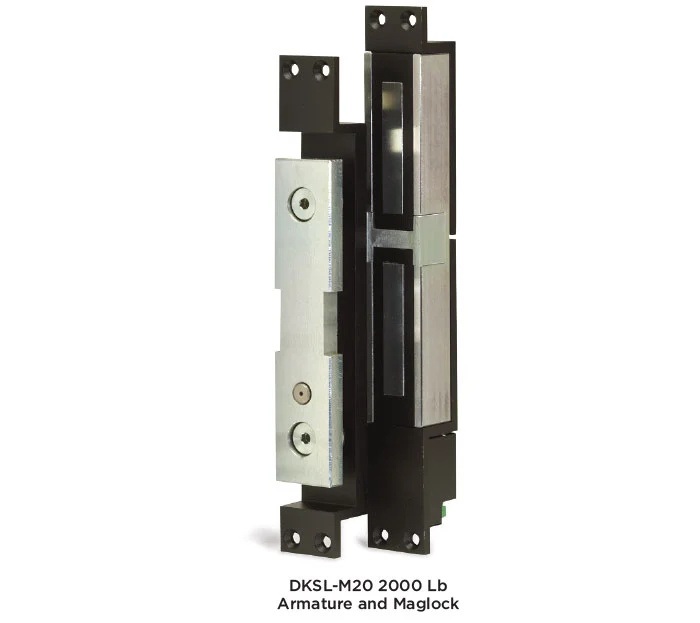

    2000 Lb SHEAR LOCK
    • 2000 Lb holding force.
    • Mortise mount only.
    • 12 or 24 Volt DC operation.
    • 1.375″H x 10.675″W x 1.25″D.
    • Includes built-in signal relay and LED status indicator (R/G).
