Arm Options – 1602 Parking Gate

The Doorking 1602 offers a range of arm options, such as the Octagonal Lighted Signal Arm and DKS Pedestrian Protection System, that provide safety and visibility. Additionally, there are choices of wishbone wood, aluminum, and round aluminum arms, with lengths ranging from 20 to 27ft.

Overview
Features
Tech Specs
Resources

Arm Options – 1602 Parking Gate



ARM STYLES

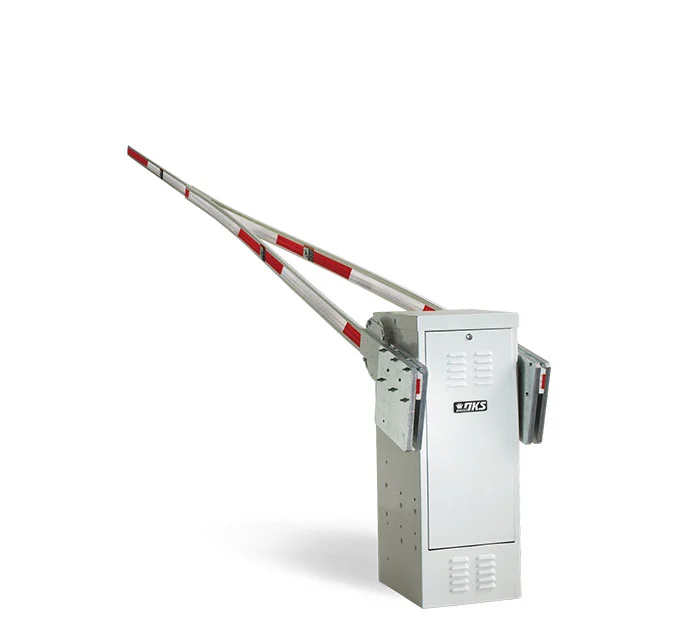

Wood Wishbone Arm — Rectangular

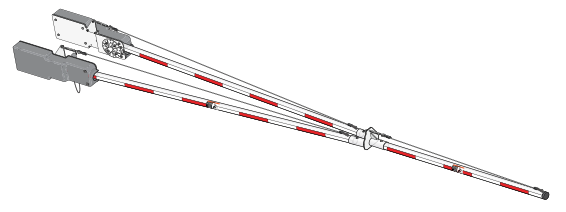

Aluminum Wishbone Arm

Arm Kits are available for the Aluminum Octagonal and Aluminum Round.



Find A Dealer

Features



Octagonal Lighted Signal Arm

Light The Way For Customers To Exit Easily And Safely With Signals And Sensors.
The DKS Octagonal Lighted Signal Arm is the newest option to DoorKing’s popular 1601 Barrier Gate Operator. While lowered the aluminum arm is lit with red LEDs sending a clear signal for drivers to stop. When raised the LEDs transition to green – easily alerting drivers when to pull forward.

• Night Visibility at Long Distances
• Reverse Edge Sensor
• Two Sizes for Easy Shipping
Read More



DKS Pedestrian Protection System

Barrier Gate Safety

In today’s busy world, people often forget to pay attention to their surroundings and can inadvertently place themselves in harm’s way. DKS Barrier Gate Operators offer a Pedestrian Detection & Protection System that knows when to allow the Barrier Arm to come down – or not. Protect the integrity of the parking facility and prevent those inadvertent accidents from happening. After all, you have better things to do than deal with liability problems.

• It’s Aware, Even When They’re Not

Read More







    Technical Specifications

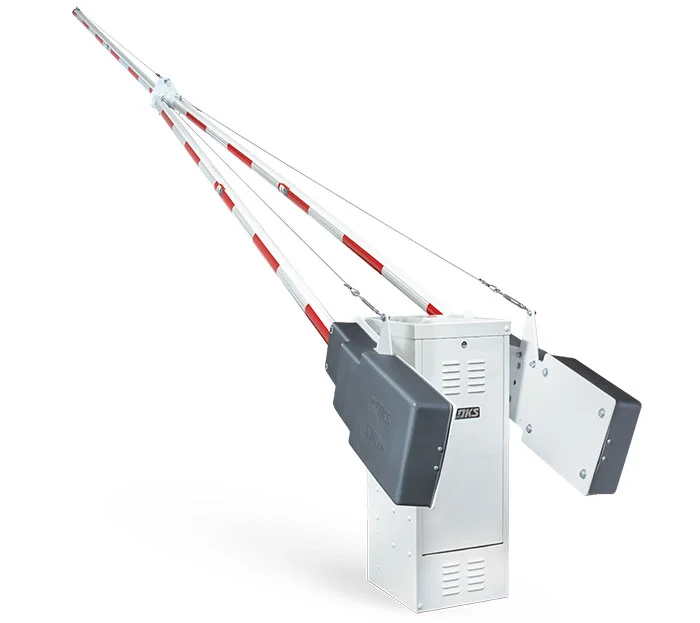

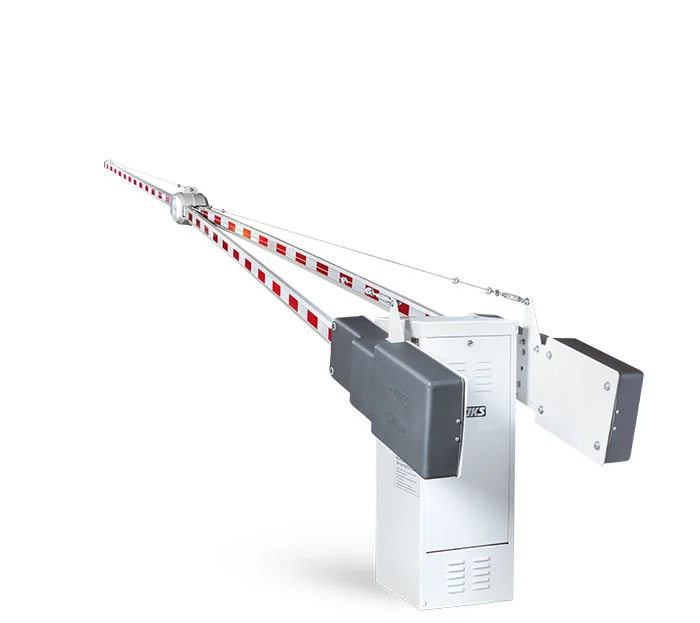

    Aluminum Arms – Standard Wishbone Cofiguration

    20 Ft. Round Arm Kit P/N 1602-162
    24 Ft. Round Arm Kit P/N 1602-164
    27 Ft. Round Arm Kit P/N 1602-166

    20 Ft. Octagonal Arm Kit P/N 1602-282
    24 Ft. Octagonal Arm Kit P/N 1602-284
    27 Ft. Octagonal Arm Kit P/N 1602-287

    20 Ft. Lighted Octagonal Arm Kit P/N 1602-292
    24 Ft. Lighted Octagonal Arm Kit P/N 1602-294
    27 Ft. Lighted Octagonal Arm Kit P/N 1602-297
    (All hardware included in aluminum kits)



    Rectangular – Wood Arm

    3-Piece 20 Ft. Wood Arm  P/N 1602-340
    Hardware Kit w/Weights (required) P/N 1602-041

    17 Ft Octagon Reversing/LED Edge Arm

    ONLY used on the 1602-090 or 1602-091 Barrier Models
    14 Ft 1-Piece Octagon Arm Only P/N 1601-555
    3 Ft Octagon Arm Extension Kit P/N 1602-303

    Octagon Arm Hardware Kit (Required) P/N 1601-235

    15 FT Reverse Edge + Red/Green LED (Optional) P/N 8080-315









    Feature Availability Chart
    Arm Options
    Model Arm Type Maximum Length Fold Option Breakaway Option Lighted Option
    1602 Aluminum 20 Ft. 6.09 m No No Octagonal Only
    24 Ft. 7.31 m No No Octagonal Only
    27 Ft. 8.23 m N No No Octagonal Only
    Wood 20 Ft. 6.09 m No No No
    1601-805 Aluminum 17 Ft. 5.1816 m No No Octagonal Only
