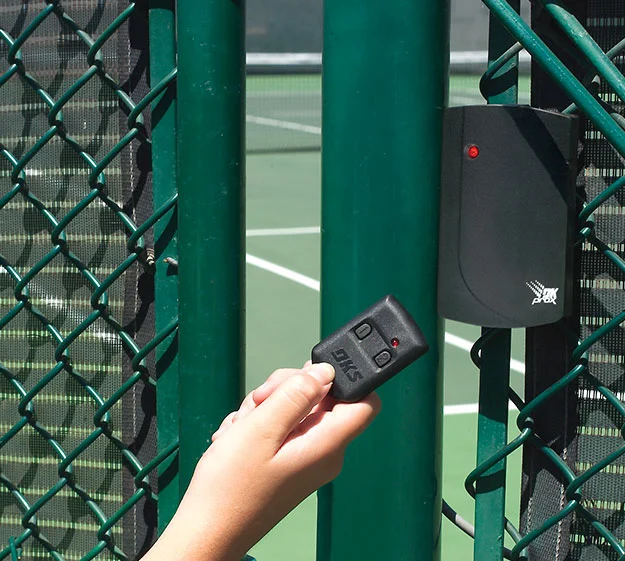

PROXmitters
same as the standard transmitter and include
a built in proximity card.

Visor clip
Visor clip to mount your transmitter in your vehicle

Antenna amplifier
Antenna amplifier
boost received signals and reduces interference.

Directional yagi antenna
Directional yagi antenna for improved range.

DoorKing RF Controls
DoorKing RF Controls

With automobile manufacturers building code copiers directly into todays cars, it's easy for a supposedly "secure" RF transmitter code to get into the wrong hands.   This can't happen with MicroPLUS RF controls.   MicroPLUS RF controls provide you with the highest level of security available with RF access controls.   Our coding and encryption schemes are not shared with other producers, resulting in transmitter codes that cannot be duplicated or copied.   With MicroPLUS controls, you are assured that only the original intended transmitter will activate your access system.

Click here to find a dealer near you:

MicroPLUS controls are not compatible with the Homelink system found in many automobiles. Use our MicroCLIK product line for compatability with the Homelink system.

RF Receivers
Transmitters
3.675"W x 5.675"H x 1.25"D 1.375"W x 2.5"H x .5"D
RF Receivers Transmitters

MicroPLUS SPECIFICATIONS


8054 Receiver
  • Stand-alone receiver.
  • Stores up to 1250 transmitter codes
  • 2300 event transaction buffer.
  • Output for serial printer.
  • 10 programmable time zones.
  • Built-in clock / calendar.
  • Programming keypad.
  • Form C relay.
  • 12-24 volt, AC or DC.

8055 Receiver

  • Stand-alone receiver.
  • Stores up to 40 transmitter codes.
  • Program via learn method.
  • Form C relay.
  • 12-24 volt, AC or DC.

8056 Receiver

  • Weigand output receiver.
  • Supports up to 5300 transmitter codes.
  • Output data in 26, 30 or 31 bit formats.
  • 12-24 volt, AC or DC.

MicroPLUS Transmitters

  • 268,000,000 codes available.
  • Encrypted "sync" code changes each time the transmitter is used.
  • Transmitter button combinations allow a single transmitter to control multiple locations.
  • PROXmitters combine RF control with a proximity tag.

MicroCLIK SPECIFICATIONS



8057 Receiver

  • Stand-alone receiver.
  • Stores up to 16,000 transmitter codes.
  • Programming keypad.
  • Form C relay.
  • 12-24 volt, AC or DC.

8059 Receiver

  • Can be used as weigand output or stand-alone receiver.
  • Program via learn method.
  • Stores up to 80 transmitter codes in stand-alone mode.
  • Form C relay.
  • In weigand mode, outputs data in 26 or 31 bit formats.
  • 12-24 volt, AC or DC.

MicroCLIK Transmitters

  • 1,000,000 codes available.
  • PROXmitters combine RF control with a proximity tag.

LISTINGS


FCC (US): LSD8059RX
FCC (US): LSD8068T
DOC (CAN): 1736 102 138

OPTIONS FOR RF CONTROLS



Model 8054 receiver memory: 50, 100, 250, 500, 1000, 1250 – choose one.
Model 8057 receiver memory: 50, 100, 250, 500, 1000, 5000, 16000 - choose one.
Transmitters: 1, 2 or 3 button.
PROXmitters: DKS, AWID or HID proximity tags – specify which.

ACCESSORIES AVAILABLE FOR RF CONTROLS


Visor clips
Yagi high gain antenna
Antenna amplifier
Coax antenna kit
Outdoor receiver enclosure
Printer (use with 8054 receiver only)
